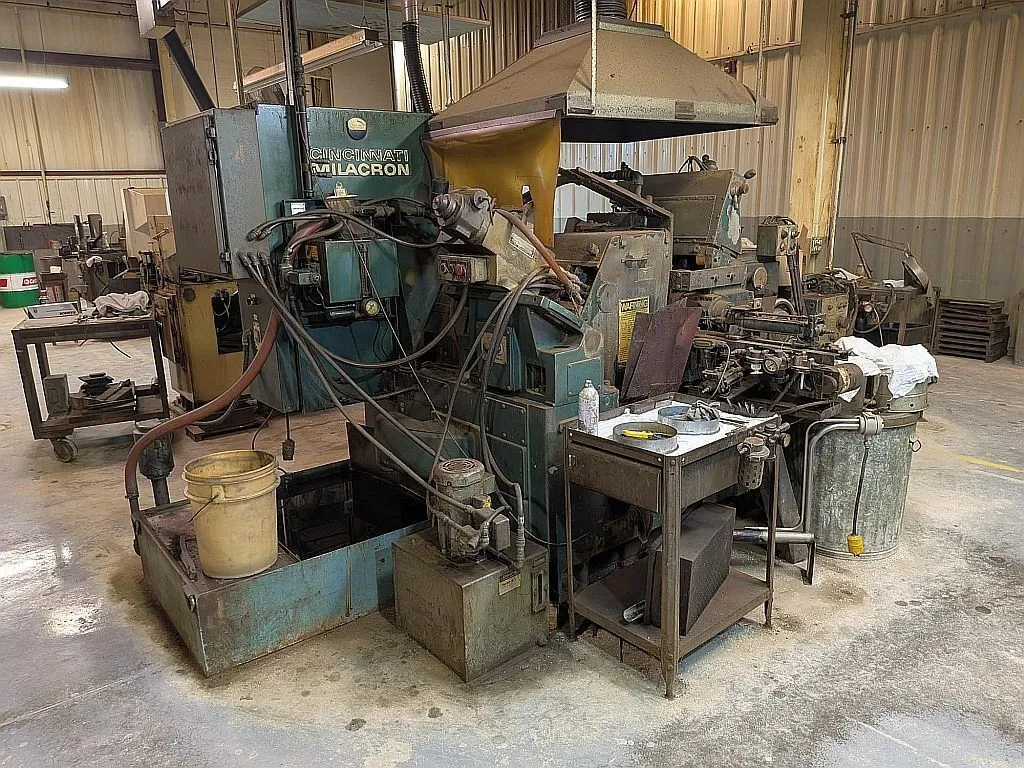

Cincinnati Milacron 220-8 DR Centerless Grinder

Description

Grinding Capacities:
Nominal Work Diameter Capacity: 0″ to 3″
Maximum Work Diameter Capacity (with new wheel): 4.75″

Grinding Wheel:
Diameter Range: 17″ to 24″
Width Range: 1″ to 8″
Hole Diameter: 12″
Motor Power: 20 HP
Speed: Approximately 1,034 RPM

Regulating Wheel:
Diameter Range: 9.75″ to 13″
Width Range: 1″ to 8″
Hole Diameter: 5″
Motor Power: 1.5 HP
Speed Range: 15 to 300 RPM (variable)

Motors and Power:
Grinding Wheel Motor: 20 HP
Regulating Wheel Motor: 1.5 HP
Hydraulic System Motor: 2 HP
Electrical Requirements: 230V / 3 Phase / 60 Hz

Dimensions and Weight:
Floor Space Required: Approximately 95″ x 127.5″
Overall Dimensions: Approximately 132″ L x 60″ W x 80″ H
Weight: Approximately 13,500 lbs

Equipped with:
Crush Truing Unit
