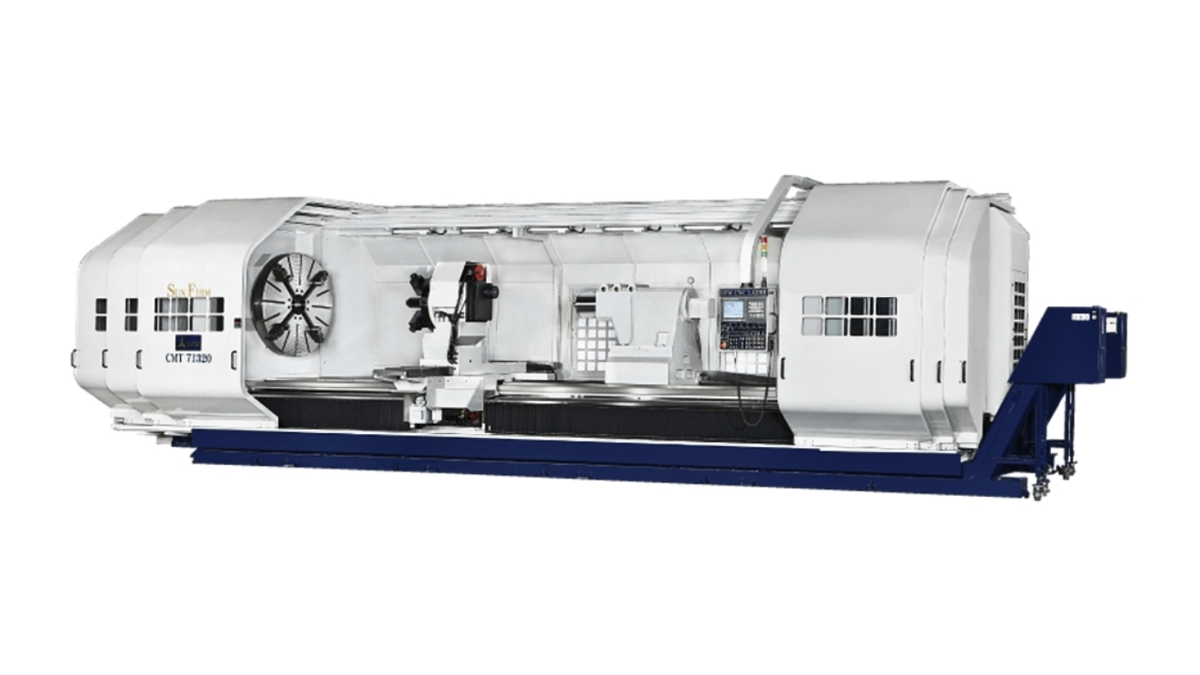

Sun Firm CMT-79120 C-Axis High Precision CNC Flatbed Engine Lathe

Specifications:

CAPACITY:
Max. Swing Over Bed................................. 79”
Max. Swing Over Cross-Slide......................... 59”
Distance between Centers............................ 118.1”

SPINDLE:
Spindle RPM......................................... 1 ~ 400 RPM
Number of Spindle Speeds............................ 4 Changes
Spindle Nose........................................ A2-15
Spindle Bore....................................... 6.0”
Chuck............................................... *4 Jaw Independent Options Available
Spindle Power....................................... 40/50 HP 4 Speed Gearbox

TOOL STATION:
Number of Stations.................................. 4 Way Tool Post
Turning Tool O.D. /I.D.............................. 1.25”/2.3”

X-AXIS:
X Axis Travel....................................... 42”
Rapid Traverse X Axis............................... 236” IPM
AC Servo Motor...................................... 5.4 HP

Z-AXIS
Z Axis Travel....................................... 118.1”
Rapid Traverse Z Axis............................... 236” IPM
AC Servo Motor...................................... 12.1 HP

TAILSTOCK:
Quill Diameter...................................... 11”
Quill Travel........................................ 10”
Quill Taper......................................... MT # 7

DIMENSIONS:
Floor Space (L x W x H)............................. 285” x 138” x 117”
Gross Weight........................................ 81,570 Lbs.

STANDARD EQUIPMENT/Accesories:
*FANUC OiTF Controller
*Coolant System
*Color LCD Monitor
*4 Way Tool Post
*Hydraulic System
*Tailstock Body & Quill
*Automatic Lubrication System
*Operation and Maintenance Manuals
*2 Door Safety Guarding
*Leveling Bolts and Nuts
*Tool Post Wrench
*Toolbox
*Live Center MT #7
*Work light
