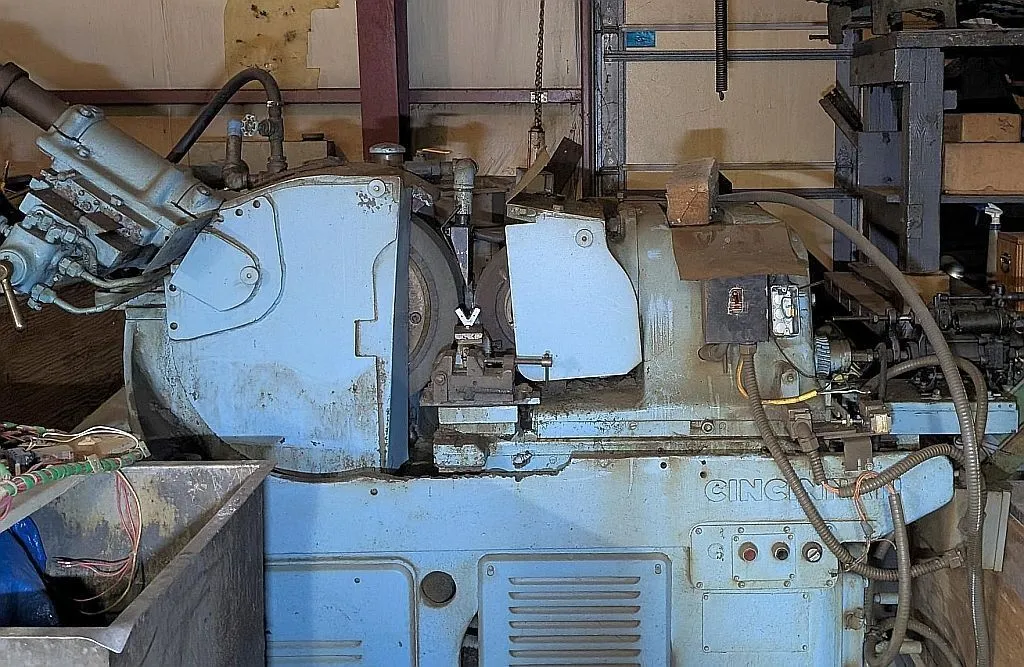

Cincinnati Milacron 220-8 Centerless Grinder
Have one to sell?
ConditionUsed
1 available
Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″
Grinding Wheel Size:
Diameter: 17" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP
Surface Speed: Up to 10,500 SFPM
Regulating Wheel Size:
Diameter: 9.75" to 12"
Width: 1" to 8"
Hole Diameter: 5"
Motor Power: 1.5 HP
Speed: Variable, 11 to 300 RPM
Hydraulic System:
Motor Power: 2 HP
Electrical Configuration:
Voltage: 220V, 3-phase, 60Hz
Dimensions:
Floor Space: Approximately 95" L x 127.5" W
Overall Dimensions: 132" L x 72" W x 60" H
Weight: Approximately 13,000 lbs
Work Diameter Capacity:
Standard work rest: 0″ to 3″
Maximum with low work rest: up to 4.75″
Grinding Wheel Size:
Diameter: 17" to 20"
Width: 1" to 8"
Hole Diameter: 12"
Motor Power: 20 HP
Surface Speed: Up to 10,500 SFPM
Regulating Wheel Size:
Diameter: 9.75" to 12"
Width: 1" to 8"
Hole Diameter: 5"
Motor Power: 1.5 HP
Speed: Variable, 11 to 300 RPM
Hydraulic System:
Motor Power: 2 HP
Electrical Configuration:
Voltage: 220V, 3-phase, 60Hz
Dimensions:
Floor Space: Approximately 95" L x 127.5" W
Overall Dimensions: 132" L x 72" W x 60" H
Weight: Approximately 13,000 lbs
