Kent Industrial International 8" X 16" Hand Feed Surface Grinder W/ DRO
Have one to sell?
ConditionUsed
1 available
$2,399.00 USD

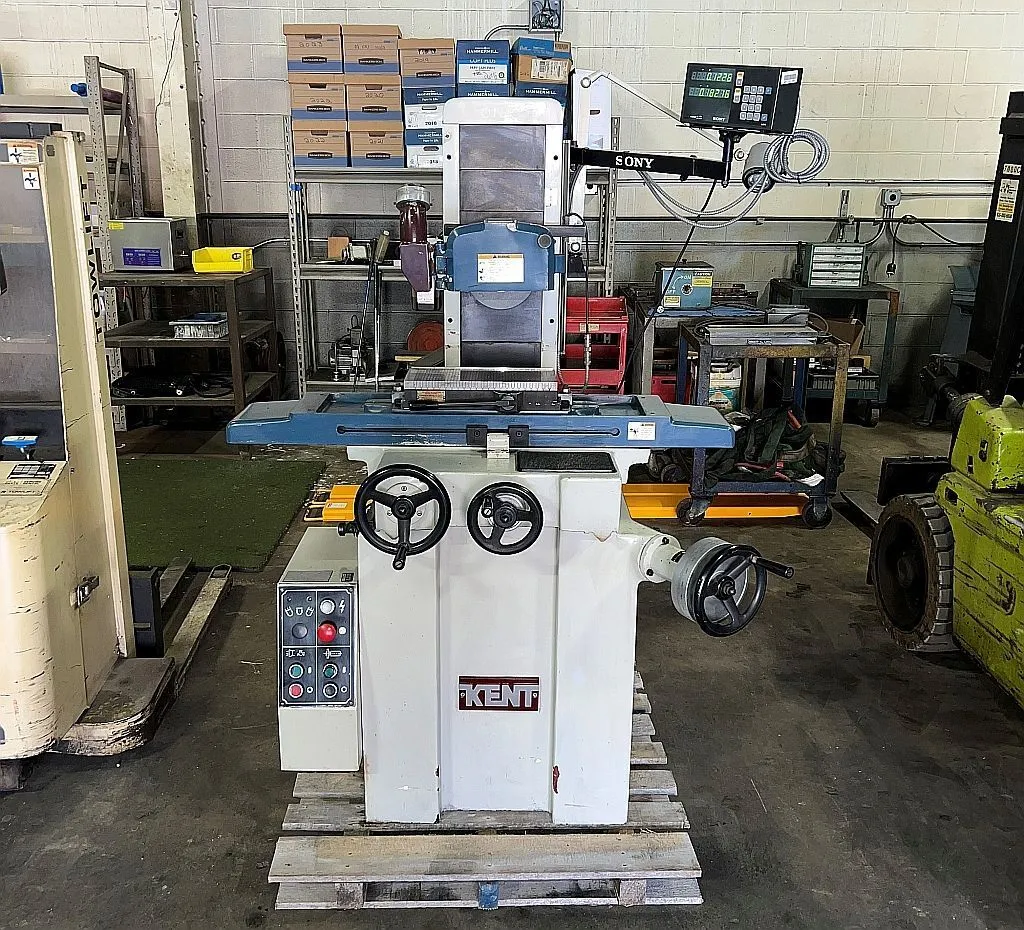

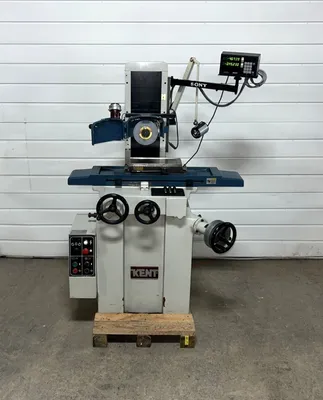

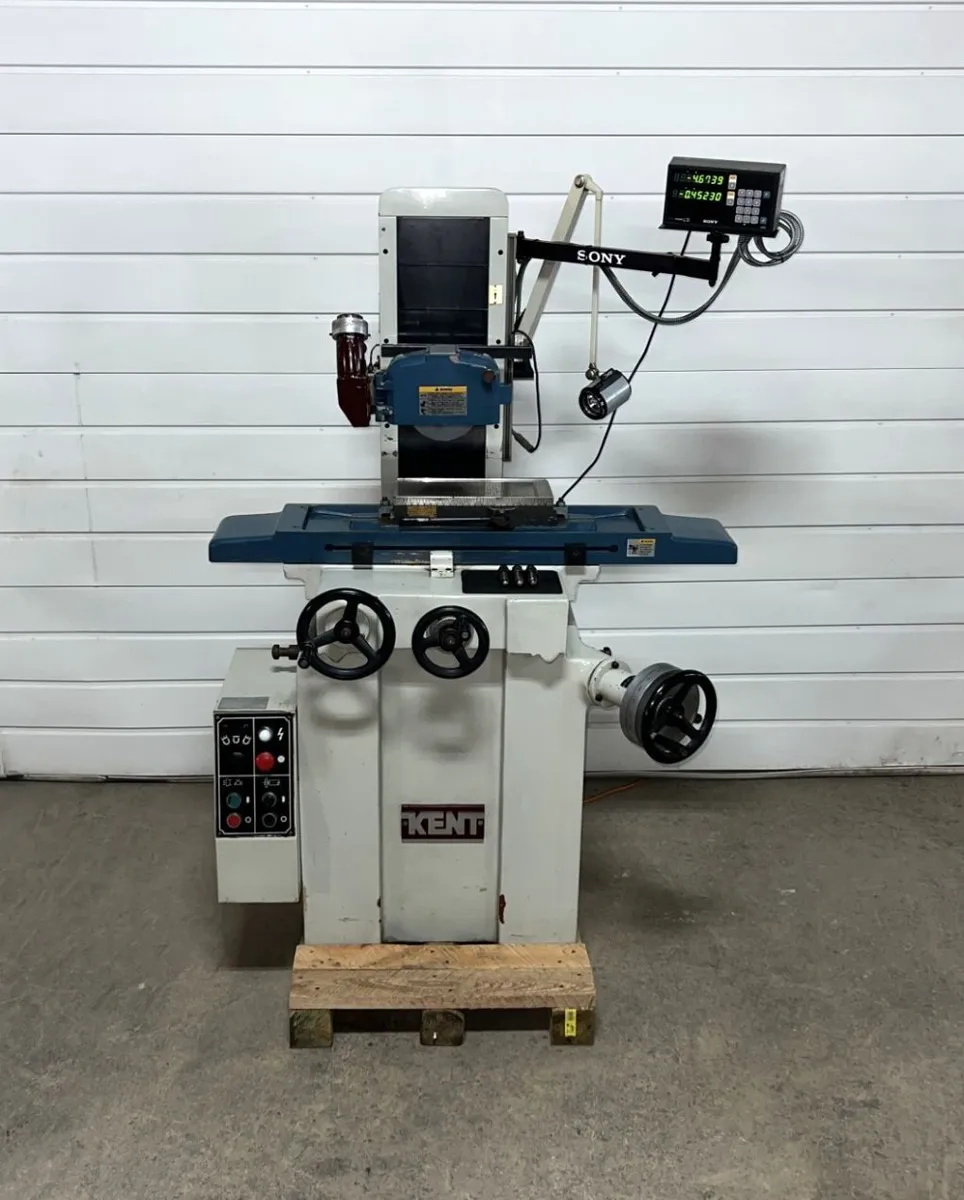

KENT KGS-200 Surface Grinder for sale, 1997 model with horizontal spindle. Features 18" x 6" table, 1.5 hp motor, and 8" grinding wheel. Dimensions: 57.9" x 46.1" x 85.4". Ideal for precision work with 265 lbs max table load. 1400 lbs net weight.
This Unit Features; A Kanetsu permanent magnetic chuck & Sony brand digital readouts.
Axis Travel & Table Specifications (Imperial):
• X-Axis (Longitudinal Travel): 17"
• Y-Axis (Cross Travel): 8"
• Z-Axis (Max Distance Table to Spindle Center): 18"
• Table Working Surface: 6" × 18"
Grinding Wheel & Spindle:
• Grinding Wheel Size: 8" Diameter × 1" Width × 1.25" Bore
• Spindle Speed: 2,850 RPM
• Spindle Motor Power: 1.5 HP
Additional Specifications:
• T-Slot Size: 0.55" (14 mm)
• Maximum Table Load: 265 lbs
• Machine Dimensions (L × W × H): 57.9" × 46.1" × 85.4"
• Net Weight: 1400 lbs
Equipped with:
Sony 2-Axis Magna Scale Digital Readout System

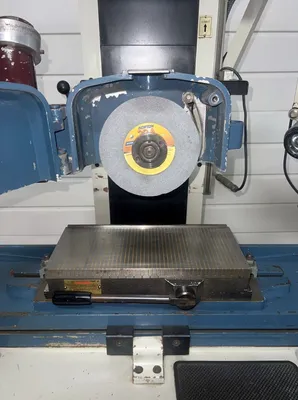

Kanetsu 618 Permanent Magnetic Chuck
