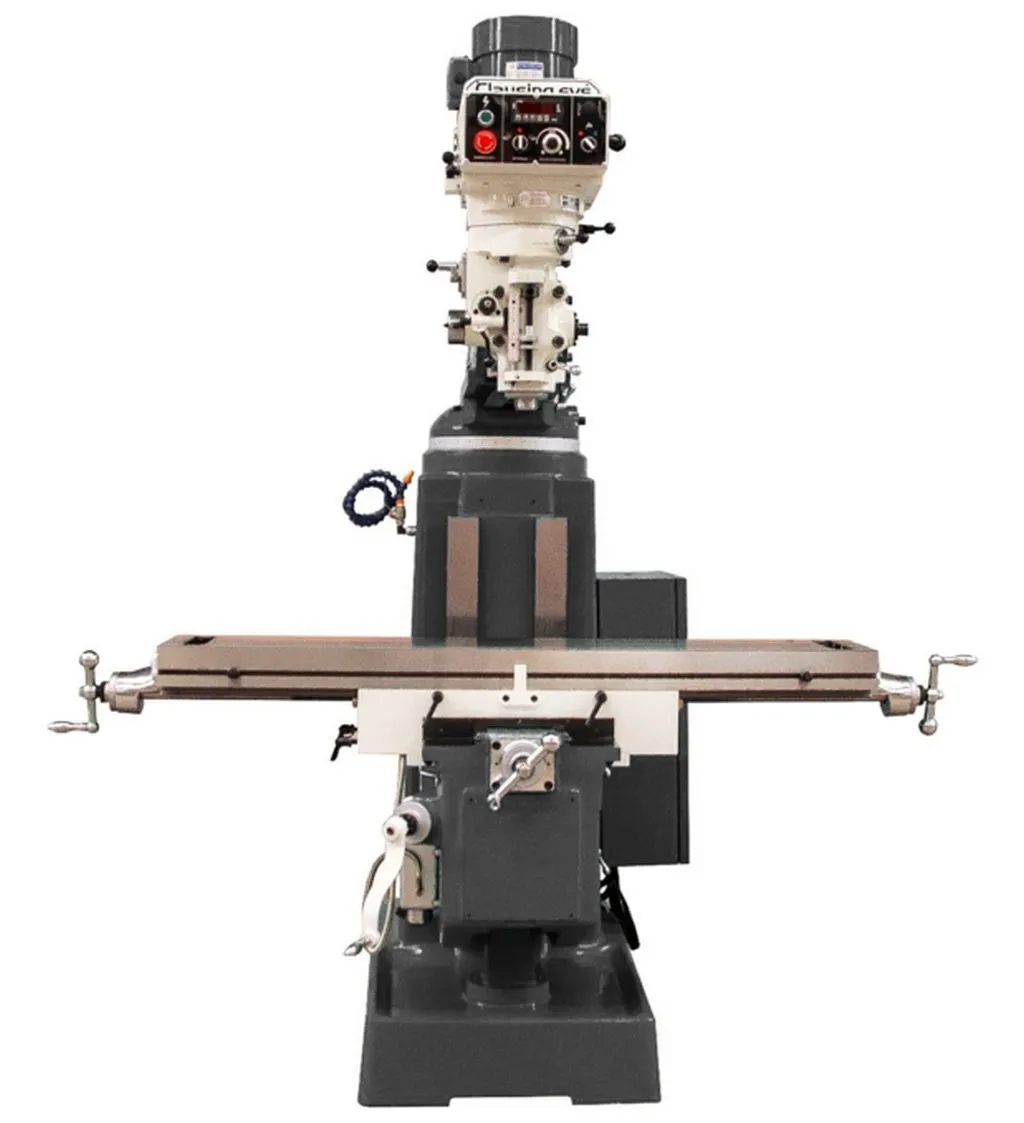

Clausing 450EVS08 Knee Mill

Machine Style..........Knee Mill
Spindle Speed Control..........Electronic Variable Speed
Spindle (Hp)..........3
Total Amp Draw @208V 3Ph..........11
Total Amp Draw @230V 3PH..........10
Total Amp Draw @460V 3Ph..........5
Table Size (inch)..........10 x 54
Number T-Slots..........3
T-Slot Width (inch)..........(.63)
T-Slot Center Distance (inch)..........2.48
Table Way Design..........Dovetail
Cross Feed Way Design..........Square
Knee Way Design..........Dovetail
X Longitudinal Travel Manual (inch)..........34.635
Y Cross Travel Manual (inch)..........16
Knee Travel Manual (inch)..........16
Ram Travel Manual (inch)..........22
Variable Spindle Speed (rpm)..........50 – 5000
Variable Spindle Speed Low Range (rpm)..........50 – 500
Variable Spindle Speed High Range (rpm)..........500 – 5000
Spindle Taper..........R8
Spindle quill Travel (inch)..........5
Quill Feed (in/rev)..........(.00157/.00315/.006)
Quill Diameter (inch)..........3.28
Column Turret Diameter (inch)..........15.75
Knee Width (inch)..........15.35
Column Bearing Length (inch)..........17.72
Saddle/Table Bearing Length (inch)..........25.59
Ram/Turret Bearing Length (inch)..........17.72
Ram Length (inch)..........32.75
Table Load (lbs.)..........665
Machine Weight (lbs.)..........2,750
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........105 x 78 x 88.6
Shipping Weight (lbs.)..........3,150

Machine Features:
Delta PLC with 7.2” color touch screen equipped with conversational program language
Hydraulic longitudinal table
DC Motorized cross feed with ballscrew
Programmable up/down head positioning
Built-in proximity switch for easy operation
Wheel extraction screw and nut
Balancing stand with arbor
Leveling screws with blocks
Grinding wheel
Wheel flange
Auto lubrication system
Table mounted diamond dresser with diamond
Micro Down Feed
Chuck Controller w/De-Mag
Splash Guard
1 year limited warranty
