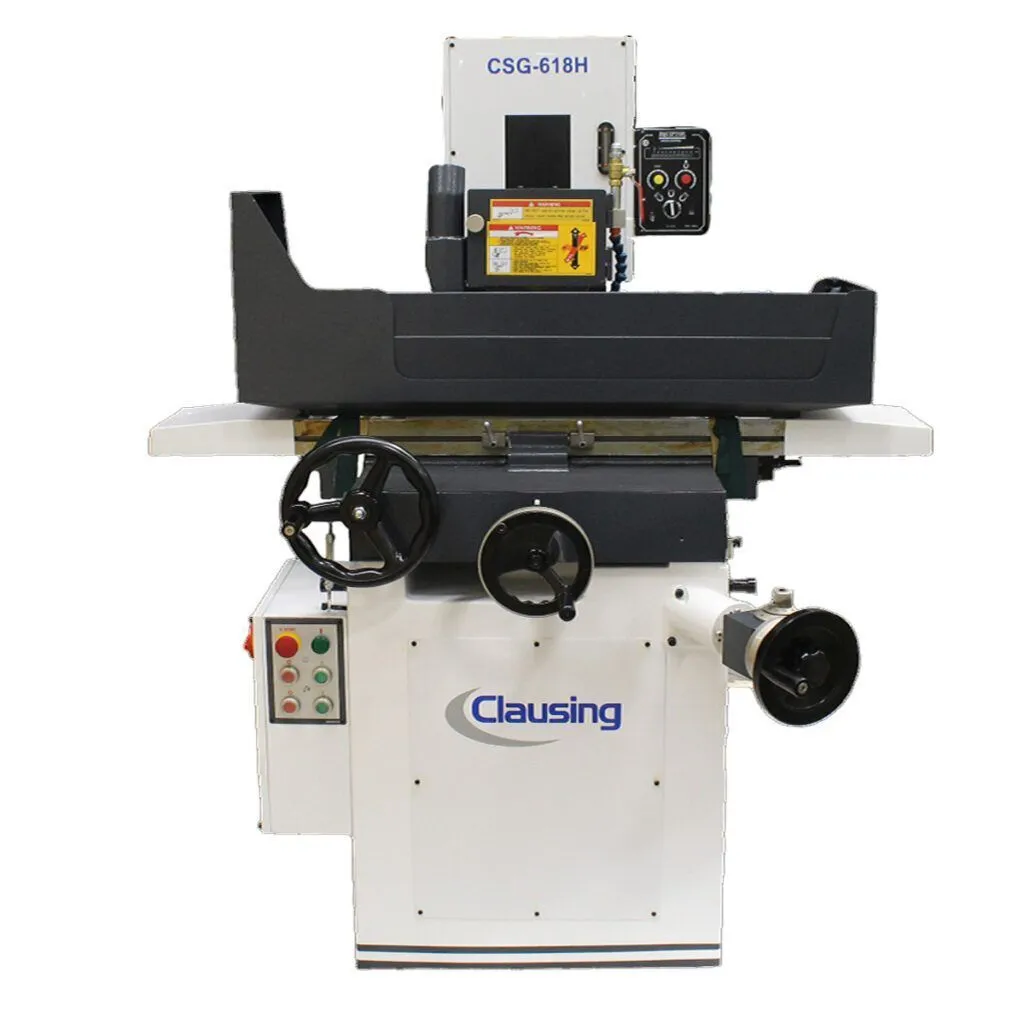

Discover the new 2025 Clausing Manual Precision Surface Grinder, 8”x18” table size, with manual X, Y , Z travel, X Maximum travel of 20”, Ball ways between table and saddle, timing belt table drive, 2 Hp Spindle drive motor, 230 or 460 volts, 3 phase.
Specifications:
•	Machine Type..........Manual Grinder
•	Drive Type..........V3 class motor
•	Table Size (inch)..........8 x 18
•	Maximum Grinding Length (inch)..........18.9
•	Maximum Grinding Width (inch)..........8.9
•	Maximum Distance from table to centerline (inch)..........18
•	Optional Standard Magnetic Chuck Size (inch)..........8 x 18
•	Maximum Table Longitudinal Travel Manual (inch)..........20
•	Maximum Cross Feed Travel Manual (inch)..........9.84
•	Cross Feed Hand Wheel Revolution Travel (inch)..........0.2
•	Cross Feed Hand Wheel Graduation (inch)..........0.0005
•	Spindle RPM..........3450
•	Drive Motor Horsepower..........2
•	Grinding Wheel Dimensions (D x W x Bore inch)..........8 x ½ or ¾ x 1.25
•	Machine Weight (lbs.)..........2,332
•	Machine Floor Space (L x W x H inch)..........71.3 x 50.6 x 66.1
Machine Features:
•	Manual longitudinal table movement with timing belt
•	Manual cross feed movement with hand wheel
•	Manual head positioning with ergonomic positioned hand wheel
•	Wheel extraction screw and nut
•	Balancing stand with arbor
•	Leveling screws with blocks
•	Grinding wheel
•	Wheel flange
•	Auto lubrication system
•	Table mount diamond dresser with diamond
•	Cross feed leadscrew w/split nut adjustment
•	1 year limited warranty
