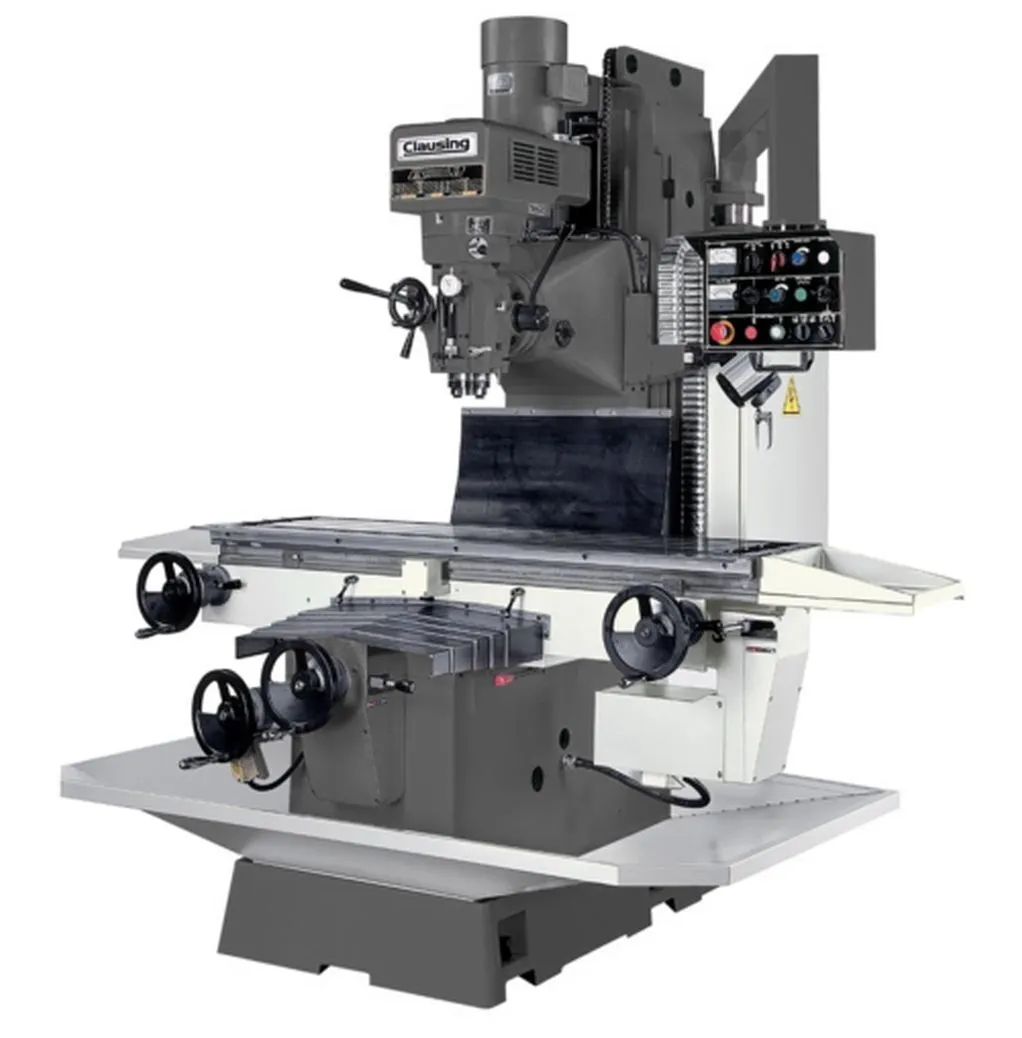

New Clausing 6BVS40 Bed Mill
Have one to sell?
ConditionNew
1 available
New
Clausing 6BVS40 Bed Mill: New, powerful 5 Hp spindle, 3-axis control, 70-4300 RPM, 15"x60" table, NMTB40 taper, durable Meehanite castings, hardened square ways, and automatic lubrication. A robust solution for precision milling tasks.
Machine Style..........Bed Mill
Spindle Speed Control..........Manual Variable Speed
Table Size..........15” x 60”
Table Load Capacity..........1,800 lbs.
No. of T-slots..........3
T-slot Width..........(.709”)
T-slot Center Distance..........3.15”
Table Ways (X Axis)..........Dovetail
Bed Ways (Y Axis).........Square
Column Ways (Z Axis)..........Square
Longitudinal (X Axis)..........41.34”
Cross (Y Axis)..........19.69”
Vertical (Z Axis)..........23.62”
Quill Diameter..........4.13”
Quill Travel..........5”
Head Tilt (left or right)..........90◦
Feedrate X & Y Axes..........1.1 – 43.3 (in/min)
Feedrate Z Axis..........(.71-31)(in/min)
X & Y Axes AC Motor with Brake..........1 Hp
Z Axis AC Motor with Brake..........½ Hp
Spindle Motor..........5 Hp (Mechanical VS)
Spindle Speed (Infinitely Variable)..........70-4300 rpm
No. of Speed Ranges..........2
Low Gear Range..........70-500 rpm
High Gear Range..........570-4300 rpm
Spindle Taper..........NMTB40
Quill Feed (in/revolution)..........(.0015/.003/.006)
Height..........85.43”
Working Width..........92.91”
Working Depth..........76.77”
Width Across Column Ways..........11.73”
Length of Saddle on Bed..........25.98”
Width Across Bed Ways..........20.47”
Spindle Nose to Table..........3.93” – 27.55”
Center of Spindle to Column Ways..........20.47”
Floor to Table Surface..........37”
Table to Column Ways (min/max)..........2.05”/21.73”
Ball Screw Dia./Pitch..........1.26”/.2”
Ball Screw Class..........C7
Gross Weight (approximately)..........6,600 lbs.
Machine Features:
Powerful 5 Hp spindle drive motor
Mechanical variable speed drive with 2 speed ranges
Hardened and ground spindle with NMTB40 taper
Hardened and chromed quill with 5” travel
CP4 ABEC7 angular contact spindle bearings
C7 double nut X/Y/Z axes 1.26” diameter ballscrew
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square X/Y ways
Turcite B coating on saddle X/Y axes ways
Meehanite castings for superior rigidity and wear resistance
Stainless steel front Y axis way cover
Rubber Y rear axes way covers
Automatic lubrication with alarm
Transformer
Long arm halogen work light
Coolant system with pump
Tools, toolbox and parts
Standard 230 3 Phase (other voltages require a transformer or special order)
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Clausing 6BVS40 Bed Mill: New, powerful 5 Hp spindle, 3-axis control, 70-4300 RPM, 15"x60" table, NMTB40 taper, durable Meehanite castings, hardened square ways, and automatic lubrication. A robust solution for precision milling tasks.
Clausing Bed Mill is driven by variable speed sheave pulleys using a V-belt from motor to a manual variable speed assembly that adjusts the infinite variable speed range by turning a dial. High Low range shift mechanism provides the correct torque for your manufacturing application. One of the heaviest bed mills in its class, and designed to deliver all the power, precision, and versatility you will need to handle milling jobs in your manufacturing facility. Combined with automatic lubrication and pendant controls these machine are easy to maintain and operate.
Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Table-W | 15" |
| Table-L | 60" |
| # Axis | 3 |
| Travel-Long | 41.34" |
| Travel-Cross | 19.69" |
| Power | 5 hp |
| RPM | 4,300 RPM |
| Taper | NMTB 40 |
| Dimensions | 76.77" x 92.91" x 85.43" |
| Weight | 6,600Lbs |
Machine Style..........Bed Mill
Spindle Speed Control..........Manual Variable Speed
Table Size..........15” x 60”
Table Load Capacity..........1,800 lbs.
No. of T-slots..........3
T-slot Width..........(.709”)
T-slot Center Distance..........3.15”
Table Ways (X Axis)..........Dovetail
Bed Ways (Y Axis).........Square
Column Ways (Z Axis)..........Square
Longitudinal (X Axis)..........41.34”
Cross (Y Axis)..........19.69”
Vertical (Z Axis)..........23.62”
Quill Diameter..........4.13”
Quill Travel..........5”
Head Tilt (left or right)..........90◦
Feedrate X & Y Axes..........1.1 – 43.3 (in/min)
Feedrate Z Axis..........(.71-31)(in/min)
X & Y Axes AC Motor with Brake..........1 Hp
Z Axis AC Motor with Brake..........½ Hp
Spindle Motor..........5 Hp (Mechanical VS)
Spindle Speed (Infinitely Variable)..........70-4300 rpm
No. of Speed Ranges..........2
Low Gear Range..........70-500 rpm
High Gear Range..........570-4300 rpm
Spindle Taper..........NMTB40
Quill Feed (in/revolution)..........(.0015/.003/.006)
Height..........85.43”
Working Width..........92.91”
Working Depth..........76.77”
Width Across Column Ways..........11.73”
Length of Saddle on Bed..........25.98”
Width Across Bed Ways..........20.47”
Spindle Nose to Table..........3.93” – 27.55”
Center of Spindle to Column Ways..........20.47”
Floor to Table Surface..........37”
Table to Column Ways (min/max)..........2.05”/21.73”
Ball Screw Dia./Pitch..........1.26”/.2”
Ball Screw Class..........C7
Gross Weight (approximately)..........6,600 lbs.
Machine Features:
Powerful 5 Hp spindle drive motor
Mechanical variable speed drive with 2 speed ranges
Hardened and ground spindle with NMTB40 taper
Hardened and chromed quill with 5” travel
CP4 ABEC7 angular contact spindle bearings
C7 double nut X/Y/Z axes 1.26” diameter ballscrew
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square X/Y ways
Turcite B coating on saddle X/Y axes ways
Meehanite castings for superior rigidity and wear resistance
Stainless steel front Y axis way cover
Rubber Y rear axes way covers
Automatic lubrication with alarm
Transformer
Long arm halogen work light
Coolant system with pump
Tools, toolbox and parts
Standard 230 3 Phase (other voltages require a transformer or special order)
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
