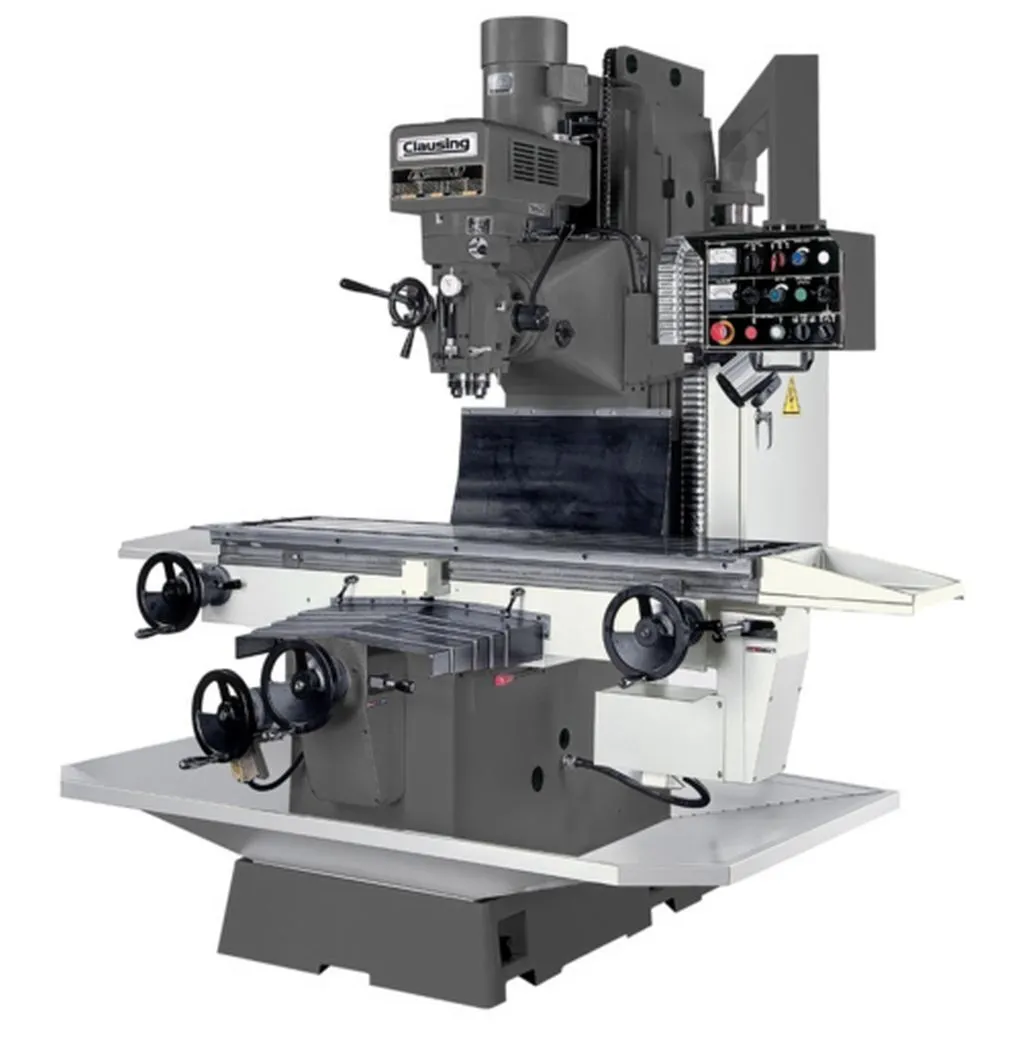

CLAUSING SUP6BVS40 Bed Mill

Machine Style..........Super Bed Mill
Spindle Speed Control..........Electronic Variable Speed
Table Size..........15” x 60”
Table Load Capacity..........1,800 lbs.
No. of T-slots..........3
T-slot Width..........(.709”)
T-slot Center Distance..........3.15”
Table Ways (X Axis)..........Dovetail
Bed Ways (Y Axis)..........Square
Column Ways (Z Axis)..........Square
Longitudinal (X Axis)..........41.34”
Cross (Y Axis)..........19.69”
Vertical (Z Axis)..........23.62”
Quill Diameter..........4.13”
Quill Travel..........5”
Head Tilt (left or right)..........90◦
Feedrate X & Y Axes..........1.1 – 43.3 (in/min)
Feedrate Z Axis..........(.71-31) (in/min)
X & Y Axes AC Motor with Brake..........1 Hp
Z Axis AC Motor with Brake..........½ Hp
Spindle Motor..........5 Hp (Inverter VS)
Spindle Speed (Infinitely Variable)..........65-5160 rpm
No. of Speed Ranges..........2
Low Gear Range..........65-590 rpm
High Gear Range..........575-5160 rpm
Spindle Taper..........NMTB40
Quill Feed (in/revolution)..........(.0016/.003/.006)
Height..........85.43”
Working Width..........92.91”
Working Depth..........76.77”
Width Across Column Ways..........11.73”
Length of Saddle on Bed..........25.98”
Width Across Bed Ways..........20.47”
Spindle Nose to Table..........3.93” – 27.55”
Center of Spindle to Column Ways..........20.47”
Floor to Table Surface..........37”
Table to Column Ways (min/max)..........2.05”/21.73”
Ball Screw Dia./Pitch..........1.26”/.2”
Ball Screw Class..........C7
Gross Weight (approximately)..........6,600 lbs.

Machine Features:
Powerful 5 Hp spindle drive motor
Inverter variable speed drive with 2 speed ranges and 2 Mechanical speed ranges
Hardened and ground spindle with NMTB40 taper
Hardened and chromed quill with 5” travel
CP4 ABEC7 angular contact spindle bearings
C7 double nut X/Y/Z axes 1.26” diameter precision ballscrew
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square X/Y ways
Turcite B coating on saddle X/Y axes ways
Meehanite castings for superior rigidity and wear resistance
Telescopic Z axis ballscrew cover
Z axis concertina accordion way covers reduces overall travel by 50mm
Rubber Y rear axis way covers
Stainless steel front axis way cover
Coolant system with pump
Long arm halogen work light
Transformer
Automatic lubrication system with alarm
Tools, toolbox and parts
Standard 230 3 Phase (other voltages require a transformer or special order)
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
