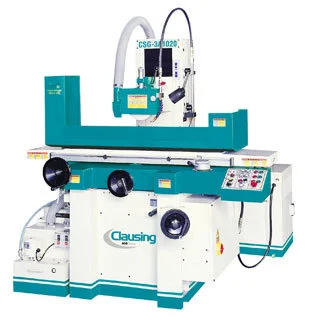

New Clausing CSG2A1224 Hydraulic Precision Surface Grinder In-Stock Now
Have one to sell?
ConditionNew
1 available
New
Clausing Manual Precision Reciprocating Surface Grinder, hydraulic driven longitudinal movement and servo motor driven crossfeed, 12”x24” table size, X Maximum manual travel of 28.74”, Turcite B coated V and Flat ways for wear protection, 5 Hp Spindle drive motor.
Machine Style.......... Manual – Hydraulic
Drive Type.......... Direct Coupled
Table Size (in).......... 11.81 x 23.62
Longitudinal Maximum Travel Hyd (in).......... 25.59
Longitudinal Maximum Travel Manual (in).......... 28.74
Table Speed Infinitely Variable (in/min).......... 196 – 984
Maximum Cross Auto Traverse Travel (in).......... 12.2
Maximum Cross Travel Manual (in).......... 13.39
Auto Traverse Increment (in).......... 0.04 – 0.75
Crossfeed Handwheel Revolution (in).......... 0.2
Crossfeed Handwheel Graduation (in).......... 0.001
Vertical Handwheel per Revolution (in).......... 0.04
Vertical Handwheel Graduation (in).......... 0.0005
Optional Standard Magnetic Chuck Size (inch).......... 12 x 24
Grinding Spindle Speed.......... 1750 rpm
Standard Grinding Wheel Diameter (in).......... 12
Standard Grinding Wheel Width (in).......... 1.25
Standard Grinding Wheel Bore (in).......... 3
Spindle Motor Horsepower.......... 5
Hydraulic Motor Horsepower.......... 2
Crossfeed Motor Horsepower.......... 80W
Elevating Motor Horsepower.......... N/A
Coolant System.......... Optional
Machine Weight (lbs.).......... 4,299
Machine Floor Space (L x W x H inch).......... 106.3 x 63 x 73
Machine Features:
• Pre-settable hydraulic longitudinal table speed control allows operator to pre-set speed rate, allowing for same speed each time you engage the hydraulic feed. Dual throttle valve for 25mm to 25M speeds
• AC Motorized cross feed with ballscrew
• Manual head positioning with ergonomic positioned hand wheel
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
Clausing Manual Precision Reciprocating Surface Grinder, hydraulic driven longitudinal movement and servo motor driven crossfeed, 12”x24” table size, X Maximum manual travel of 28.74”, Turcite B coated V and Flat ways for wear protection, 5 Hp Spindle drive motor.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Surface Grinders are constructed of high-grade cast iron with heavy walls and reinforced honeycomb ribbing provide excellent rigidity and dampening. Large diameter spindle is supported by four preloaded precision angular contact ball bearings and one NU type roller bearing for durable heavy-duty operation and driven by 5 Hp motor that allows highly accurate grinding performance.
Enlarged column and base create high stability and rigidity. The maximum height is 23” from table surface to the center line of spindle. Hydraulic longitudinal table movement and servo motor drive for cross feed movement. The saddle rests on precision hand-scraped double V-ways, and the table rests on precision hand-scraped V and Flat ways coated with TURCIT B along with auto lubrication gives excellent wear resistance.
Imperial
| Table-W | 12" |
| Table-L | 24" |
| Horz/Vert | Horz |
| Power | 2 hp |
| Grinding Wheel Width | 1.25" |
| Grinding Wheel Dia. | 12" |
| Dimensions | 106.3 x 63 x 73 |
| Weight | 4299 lbs. |
Machine Style.......... Manual – Hydraulic
Drive Type.......... Direct Coupled
Table Size (in).......... 11.81 x 23.62
Longitudinal Maximum Travel Hyd (in).......... 25.59
Longitudinal Maximum Travel Manual (in).......... 28.74
Table Speed Infinitely Variable (in/min).......... 196 – 984
Maximum Cross Auto Traverse Travel (in).......... 12.2
Maximum Cross Travel Manual (in).......... 13.39
Auto Traverse Increment (in).......... 0.04 – 0.75
Crossfeed Handwheel Revolution (in).......... 0.2
Crossfeed Handwheel Graduation (in).......... 0.001
Vertical Handwheel per Revolution (in).......... 0.04
Vertical Handwheel Graduation (in).......... 0.0005
Optional Standard Magnetic Chuck Size (inch).......... 12 x 24
Grinding Spindle Speed.......... 1750 rpm
Standard Grinding Wheel Diameter (in).......... 12
Standard Grinding Wheel Width (in).......... 1.25
Standard Grinding Wheel Bore (in).......... 3
Spindle Motor Horsepower.......... 5
Hydraulic Motor Horsepower.......... 2
Crossfeed Motor Horsepower.......... 80W
Elevating Motor Horsepower.......... N/A
Coolant System.......... Optional
Machine Weight (lbs.).......... 4,299
Machine Floor Space (L x W x H inch).......... 106.3 x 63 x 73
Machine Features:
• Pre-settable hydraulic longitudinal table speed control allows operator to pre-set speed rate, allowing for same speed each time you engage the hydraulic feed. Dual throttle valve for 25mm to 25M speeds
• AC Motorized cross feed with ballscrew
• Manual head positioning with ergonomic positioned hand wheel
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
