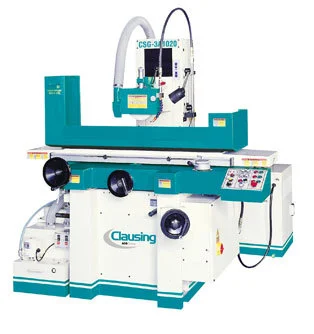

Clausing Manual Precision Surface Grinder, hydraulic driven longitudinal movement and servo motor driven crossfeed, rapid Up/Down head position motor, 12”x24” table size, X Maximum manual travel of 28.74”, Turcite B coated V and Flat ways for wear protection, 5 Hp Spindle drive motor, 230 or 460 volts
Specifications:
• Machine Style..........Manual – Hydraulic
• Drive Type..........Direct Coupled
• Table Size (in)..........11.81 x 23.62
• Longitudinal Maximum Travel Hyd (in)..........25.59
• Longitudinal Maximum Travel Manual (in)..........28.74
• Table Speed Infinitely Variable (in/min)..........196 – 984
• Maximum Cross Auto Traverse Travel (in)..........12.2
• Maximum Cross Travel Manual (in)..........13.39
• Auto Traverse Increment (in)..........0.04 – 0.75
• Crossfeed Handwheel Revolution (in)..........0.2
• Crossfeed Handwheel Graduation (in)..........0.001
• Vertical Handwheel per Revolution (in)..........0.04
• Vertical Handwheel Graduation (in)..........0.0005
• Optional Standard Magnetic Chuck Size (inch)..........12 x 24
• Grinding Spindle Speed..........1750 rpm
• Standard Grinding Wheel Diameter (in)..........12
• Standard Grinding Wheel Width (in)..........1.25
• Standard Grinding Wheel Bore (in)..........3
• Spindle Motor Horsepower..........5
• Hydraulic Motor Horsepower..........2
• Crossfeed Motor Horsepower..........80W
• Elevating Motor Horsepower..........80W
• Coolant System..........Optional
• Machine Weight (lbs.)..........4,387
• Machine Floor Space (L x W x H inch)..........106.3 x 63 x 73
Machine Features:
• Pre-settable hydraulic longitudinal table speed control allows operator to pre-set speed rate, allowing for same speed each time you engage the hydraulic feed. Dual throttle valve for 25mm to 25M speeds
• AC Motorized cross feed with ballscrew
• Rapid up/down head positioning motor
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
