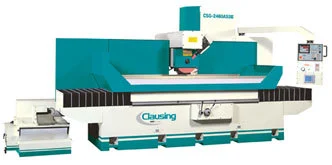

New CLAUSING CSG2448ASDIII | Reciprocating Surface Grinders

Clausing EQUIPTOP Large Capacity Precision Surface Grinder Specifications
Model Table size 24” x 48”
Max. grinding length (longitudinal) 49.6”
Max. grinding width (crosswise) 24”
Max. distance from table surface to spindle centerline Standard
Optional
28.3”
33.5”
Standard magnetic chuck size 23.6” x 47.2”
Chuck Weight 726 lbs.
Total Table Load (including chuck) 3,300 lbs.
Longitudinal movement of table Max. travel (hydraulic) 51.18”
Max. travel (manual) 53”
Table speed infinitely variable .196”-.1181”/min.
Column crossfeed transverse travel Auto transverse increment (jog) 0.04”-1”
Auto constant feeding speed 1 ¼”-11”/min.
Max. auto transverse travel 26”
Max. manual transverse travel 27”
Handwheel per revolution 0.2”
Handwheel per graduation 0.001”
Wheelhead vertical infeed Automatic infeed
rough grinding:
finishing:
0.5-25/10000”
0.5-405/10000”
Step feed (jog)
jogging downfeed:
jogging step increment:
0.5/10000”
0.5-25/10000”
Manual pulse generator (per graduation) 0.00005”
Rapid travel, approx. 6”/min.
Slow travel, approx. 0.25”/min.
Handwheel per revolution
min. display value:
1/10000”
Handwheel per graduation
(no elevating handwheel)
Grinding spindle drive Speed 1750 rpm
Power rating 10 hp
Standard grinding wheel Diameter 16”
Width 2”
Bore 5”
Hydraulic motor Power rating 5 Hp/6P
Crossfeed motor Power rating DC750W
Elevating motor Power rating DC750W
Total space required L x W x H 200”x 118”x 93”
Weight Net weight (lbs.) 14,300
Gross weight (lbs.) 16,500

ASD III Control Features

• Simple, clear, digital display and touch control panel, for easy learning and operation
• Vertical feed powered by servo motors…for rapid up/down, micro downfeed positioning and slow up/down. Quick digital output feedback by encoders
• Display for position of Y axis to show present spindle position. Use digital display for setting start point, rough grinding volume, start point for finish grinding (finish grinding volume), down feed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out
• Cross traverse travel powered by DC servo motor, allows step feed and continuous infeed grinding. The speed for wheel dressing can be adjusted on the panel

Large Capacity Precision Automatic Surface Grinders Features

• Large capacity up to 24” x 48” Table
• 10” Color touch screen
• Enlarged extra strong ribbed column, ideal for heavy-duty grinding
• Table, saddle and base are constructed of high grade cast iron and ribbed for maximum strength
• Spindle is supported by 4 front and 2 rear precision angular contact ball bearings
• All slideways and ballscrews fully oiled by an Automatic Continuous Lubrication System to minimize wear on slideways and ballscrews
• Longitudinal hydraulic transverse with constant speed function or manual speed handle. Table rides on double V slideways coated with “TURCITE-B” for maximum stability
• Cross traverse travel powered by DC servo motor and ballscrew, allows step feed and continuous infeed grinding
• Vertical positioning by precision ballscrew
• Pre-set hydraulic table speed control allows operator to pre-set table speed rate and maintain the same speed rate every time the hydraulic table is engaged
• Mobil Manual Pulse Generator for micro movements of the axes.
• Chuck Controller w/De-Mag
• Balancing Stand
• Work Light
• Standard voltage 230 or 460 3 Phase (208 requires a transformer or special order)

Investment

Clausing Equiptop Large Capacity Precision Automatic Surface Grinder

CSG2448ASDIII 24” x 48” Auto Column Grinder PLC Control $ 123,910.00
Auto Grinder, Longitudinal Hydraulics, Motorized
Cross Feed, and Motorized Rapid Up/Down and
Stepping Motor for Micro Down Feed
Tariff Charge $ 16,108.30 NET

CSG2448ASDXIII 24” x 48” Auto Column Grinder PLC Control $ 129,600.00
Auto Grinder, Longitudinal Hydraulics, Motorized
Cross Feed, and Motorized Rapid Up/Down and
Stepping Motor for Micro Down Feed, High Column
Option

Note: Machine can only run in English or Metric measure, cannot do both. State version at time of order (metric will have to be special ordered)

Special Control Options (Factory Ordered)

GR24-32ADC Overhead Auto Dressing and Compensation System (ADC) $ 10,730.00
(factory ordered)

Chuck Options

C0123AG 24” x 48” Electromagnetic Chuck $ 12,205.00
C0123AGF 24” x 48” Fine Pole Electro Chuck 18,600.00

Coolant Options

C0205L 43.5gal 15.8gal/min Coolant w/Auto Paper Feed $ 3,315.00
C0206L2 43.5gal 15.8gal/min Coolant w/Auto Paper Feed & Mag. Sep. 4,500.00
Extra Paper Filter Media Contact Clausing Service Center

Balancing Options

C0305 Extra Balancing Stand $ 555.00
C0305R Roller Balancing Stand 700.00
C0305A Arbor for C0305 & C0305R 280.00
C0310D Dynamic Wheel Balancer 6,105.00

Wheel Dressing Options

C0700 Electric Over the Wheel Auto Dresser $ 2,880.00
C0721 Manual Over the Wheel Dresser 1,820.00

Wheel Options

C0606 Spare Wheel Flange $ 620.00
C1104 Extra 16” x 2” x 5” Grinding Wheel 585.00
C1105 Extra 16” x 2.5” x 5” Grinding Wheel 625.00

Guarding Options

C0520 Full Guarded Splash Guard and Top Cover (factory ordered) $ 15,460.00
C0500A Interlocking Door for Full Splash Guard 685.00

Spindle

C4006 Inverter Control 0-1750 rpm 15 Hp 230V (factory ordered) $ 3,615.00
C4006A Inverter Control 0-1750 rpm 15 Hp 460V (factory ordered) 3,615.00
GR-15HP 15 Hp Spindle Motor in Lieu of 10 Hp (factory ordered) 2,965.00
GR-20HP24 20 Hp Spindle Motor w/25 Hp Inverter in Lieu of 10 Hp 9,180.00
(factory ordered)
GR-25HP24 25 Hp Spindle Motor w/30 Hp Inverter in Lieu of 10 Hp 10,990.00
(factory ordered)

Miscellaneous

GR-HOCS Hydraulic Oil Cooling System $ 5,040.00

Warranty

Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.

FOB Point

Kalamazoo, Michigan or Point of Shipment.

Delivery
Delivery: 22-26 weeks
Quote valid for 30 days.
Payment terms: 30% with order, 30% before shipment from factory, balance 30 days after installation.

Price Escalation: Any increase in the cost of supplying products caused by any government law, regulation, or tariff will be added to the final price of the product. Purchasers may cancel an order due to the price escalation and receive a refund of deposits paid, less costs incurred for production progress, up to the date written notice of cancellation is received by Clausing Industrial.
* Due to the current U.S. imposed tariff of 10%-20%, and sharing of costs by Clausing and supply chain partners, the current prices listed above will be increased by 6.5% -15.5% depending on country of origin for all non-stock machines and accessories.

Due to continual improvements, prices and specifications subject to change without notice.
