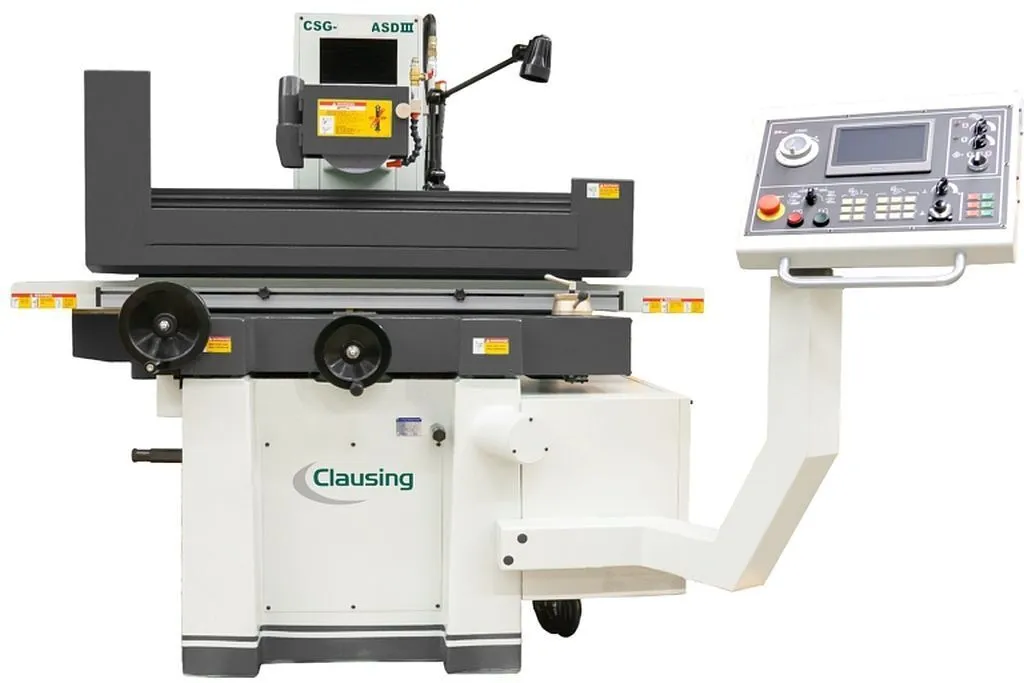

New 2025 6" x 18" Clausing CSG618ASDIII Automatic Precision Surface Grinder with Microprocessor "In Stock Now"
Have one to sell?
ConditionNew
New
Discover precision with the new CLAUSING CSG618ASDIII Reciprocating Surface Grinder. Featuring a 6" x 18" table, 2 hp power, and an 8" grinding wheel, this machine is engineered to meet your surface grinding needs efficiently.
Machine Style.......... Automatic – Hydraulic
Drive Type.......... Direct Coupled
Table Size (in).......... 6 x 18
Longitudinal Maximum Travel Hyd (in)..........19
Longitudinal Maximum Travel Manual (in).......... 20
Table Speed Infinitely Variable (in/min).......... 196 – 984
Maximum Cross Auto Traverse Travel (in).......... 7.75
Maximum Cross Travel Manual (in).......... 8
Auto Traverse Increment (in)..........(0.04 – .4)
Crossfeed Handwheel Revolution (in).......... (0.2)
Crossfeed Handwheel Graduation (in).......... (0.0005)
Vertical Automatic infeed (in).......... (0.00005 - 0.0025)
Step Feed Jog (in).......... (0.00004)
Optional Standard Magnetic Chuck Size (inch).......... 6 x 18
Grinding Spindle Speed.......... 3450 rpm
Standard Grinding Wheel Diameter (in).......... 8
Standard Grinding Wheel Width (in).......... (.5 – .75)
Standard Grinding Wheel Bore (in).......... 1.25
Spindle Motor Horsepower.......... 2
Hydraulic Motor Horsepower.......... 1
Crossfeed Motor Horsepower.......... 40W
Elevating Motor Horsepower.......... 40W
Coolant System.......... Optional
Machine Weight (lbs.).......... 1,804
Machine Floor Space (L x W x H inch).......... 71 x 45 x 65
Machine Features:
• Delta PLC with 7.2” color touch screen equipped with conversational program language
• Hydraulic longitudinal table
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
Discover precision with the new CLAUSING CSG618ASDIII Reciprocating Surface Grinder. Featuring a 6" x 18" table, 2 hp power, and an 8" grinding wheel, this machine is engineered to meet your surface grinding needs efficiently.
T.R. Wigglesworth Machinery Company has represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Automatic Precision Surface Grinder, Delta PLC conversational digital controller with 7.2” color touch screen, hydraulic driven longitudinal movement and servo motor driven crossfeed, programmable Up/Down head positioning, 6”x18” table size, X Maximum manual travel of 20”, Turcite B coated V and Flat ways for wear protection, 2 Hp Spindle drive motor, 230 or 460 volts, 3 ph
Imperial
| Table-W | 6" |
| Table-L | 18" |
| Horz/Vert | Horz |
| Power | 2 hp |
| Grinding Wheel Width | 0.75" |
| Grinding Wheel Dia. | 8" |
| Dimensions | 71 x 45 x 65 |
| Weight | 1804 |
Machine Style.......... Automatic – Hydraulic
Drive Type.......... Direct Coupled
Table Size (in).......... 6 x 18
Longitudinal Maximum Travel Hyd (in)..........19
Longitudinal Maximum Travel Manual (in).......... 20
Table Speed Infinitely Variable (in/min).......... 196 – 984
Maximum Cross Auto Traverse Travel (in).......... 7.75
Maximum Cross Travel Manual (in).......... 8
Auto Traverse Increment (in)..........(0.04 – .4)
Crossfeed Handwheel Revolution (in).......... (0.2)
Crossfeed Handwheel Graduation (in).......... (0.0005)
Vertical Automatic infeed (in).......... (0.00005 - 0.0025)
Step Feed Jog (in).......... (0.00004)
Optional Standard Magnetic Chuck Size (inch).......... 6 x 18
Grinding Spindle Speed.......... 3450 rpm
Standard Grinding Wheel Diameter (in).......... 8
Standard Grinding Wheel Width (in).......... (.5 – .75)
Standard Grinding Wheel Bore (in).......... 1.25
Spindle Motor Horsepower.......... 2
Hydraulic Motor Horsepower.......... 1
Crossfeed Motor Horsepower.......... 40W
Elevating Motor Horsepower.......... 40W
Coolant System.......... Optional
Machine Weight (lbs.).......... 1,804
Machine Floor Space (L x W x H inch).......... 71 x 45 x 65
Machine Features:
• Delta PLC with 7.2” color touch screen equipped with conversational program language
• Hydraulic longitudinal table
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
