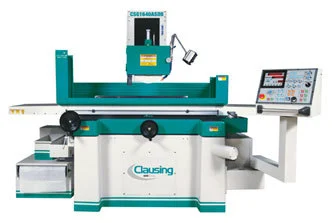

New 2025 12″ x 28″ Clausing CSG1228ASDIII Automatic Precision Surface Grinder with Microprocessor
Have one to sell?
ConditionNew
New
Discover precision with the new 2025 Clausing CSG1228ASDIII Surface Grinder. Featuring a 12" x 28" table, 7.5 hp motor, and digital controller, this hydraulic grinder delivers versatile performance for demanding tasks. Ideal for industrial settings.
Machine Style.......................... Automatic – Hydraulic
Drive Type............................. Direct Coupled
Table Size (in)........................ 12 x 28
Longitudinal Maximum Travel Hyd (in)... 30
Longitudinal Maximum Travel Manual (in) 32.68
Table Speed Infinitely Variable (in/min)196 – 984
Maximum Cross Auto Traverse Travel (in) 13.78
Maximum Cross Travel Manual (in)....... 15
Auto Traverse Increment (in)........... 0.04 – 1
Crossfeed Handwheel Revolution (in).... 0.2
Crossfeed Handwheel Graduation (in).... 0.0005
Vertical Automatic infeed (in)......... 0.00005 -0.0025
Step Feed Jog (in)..................... 0.00004
Optional Standard Magnetic Chuck Size (inch) 12 x 28
Grinding Spindle Speed................. 1750 rpm
Standard Grinding Wheel Diameter (in).. 14
Standard Grinding Wheel Width (in)..... 2
Standard Grinding Wheel Bore (in)...... 5
Spindle Motor Horsepower............... 7.5
Hydraulic Motor Horsepower............. 3
Crossfeed Motor Horsepower............. 1
Elevating Motor Horsepower............. 1/4
Coolant System Optional
Machine Weight (lbs.).................. 6,659
Machine Floor Space (L x W x H inch)... 116 x 78 x 81
Machine Features:
• Delta PLC with 7.2” color touch screen equipped
with conversational program language
• Pre-settable hydraulic longitudinal table speed control
allows operator to pre-set speed rate, allowing for same speed
each time you engage the hydraulic feed. Dual throttle valve
for 25mm to 25M speeds
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
Discover precision with the new 2025 Clausing CSG1228ASDIII Surface Grinder. Featuring a 12" x 28" table, 7.5 hp motor, and digital controller, this hydraulic grinder delivers versatile performance for demanding tasks. Ideal for industrial settings.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Automatic Surface Grinders with Delta PLC 7.2” color touch screen controller are constructed of high-grade cast iron with heavy walls and reinforced honeycomb ribbing provides excellent rigidity and dampening. Large diameter spindle is supported by four preloaded precision angular contact ball bearings and one NU type roller bearing for durable heavy-duty operation and driven by 7.5 Hp motor that allows highly accurate grinding performance.
Imperial
| Table-W | 36" |
| Table-L | 12" |
| Horz/Vert | Horz |
| Power | 7.5 hp |
| Grinding Wheel Width | 2" |
| Grinding Wheel Dia. | 14" |
| Dimensions | 116 x 78 x 81 |
| Weight | 6659 |
Machine Style.......................... Automatic – Hydraulic
Drive Type............................. Direct Coupled
Table Size (in)........................ 12 x 28
Longitudinal Maximum Travel Hyd (in)... 30
Longitudinal Maximum Travel Manual (in) 32.68
Table Speed Infinitely Variable (in/min)196 – 984
Maximum Cross Auto Traverse Travel (in) 13.78
Maximum Cross Travel Manual (in)....... 15
Auto Traverse Increment (in)........... 0.04 – 1
Crossfeed Handwheel Revolution (in).... 0.2
Crossfeed Handwheel Graduation (in).... 0.0005
Vertical Automatic infeed (in)......... 0.00005 -0.0025
Step Feed Jog (in)..................... 0.00004
Optional Standard Magnetic Chuck Size (inch) 12 x 28
Grinding Spindle Speed................. 1750 rpm
Standard Grinding Wheel Diameter (in).. 14
Standard Grinding Wheel Width (in)..... 2
Standard Grinding Wheel Bore (in)...... 5
Spindle Motor Horsepower............... 7.5
Hydraulic Motor Horsepower............. 3
Crossfeed Motor Horsepower............. 1
Elevating Motor Horsepower............. 1/4
Coolant System Optional
Machine Weight (lbs.).................. 6,659
Machine Floor Space (L x W x H inch)... 116 x 78 x 81
Machine Features:
• Delta PLC with 7.2” color touch screen equipped
with conversational program language
• Pre-settable hydraulic longitudinal table speed control
allows operator to pre-set speed rate, allowing for same speed
each time you engage the hydraulic feed. Dual throttle valve
for 25mm to 25M speeds
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
