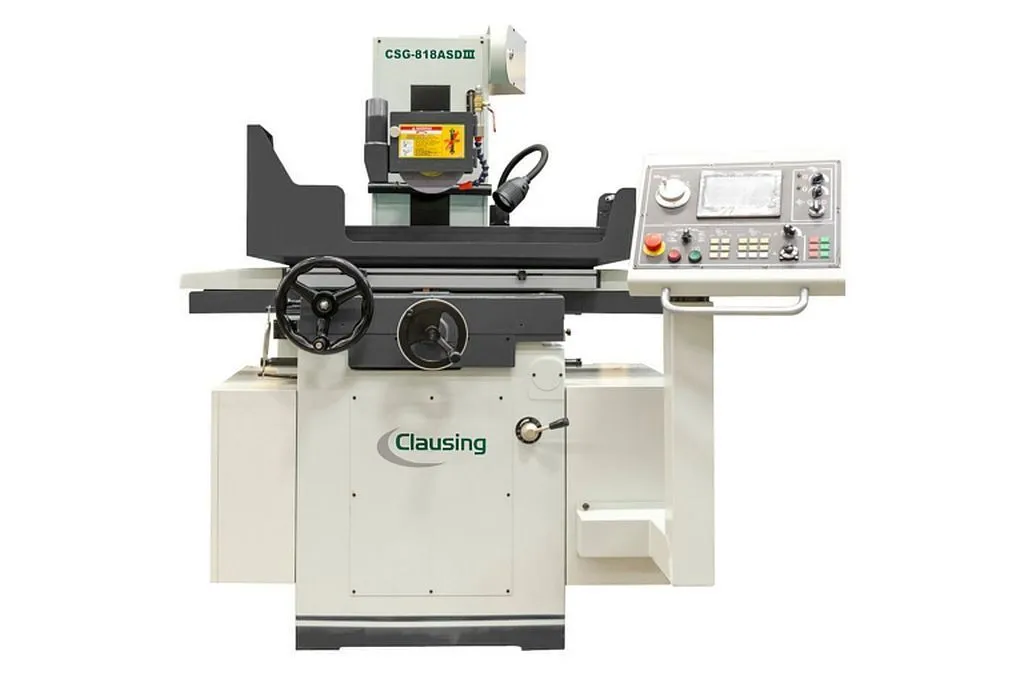

New 2025 Clausing CSG818ASDIII 8" x 18" Automatic Precision Surface Grinder "In Stock Now"

Specifications:
• Machine Style..........Automatic – Hydraulic
• Drive Type..........Direct Coupled
• Table Size (in)..........8 x 18
• Longitudinal Maximum Travel Hyd (in)..........18.9
• Longitudinal Maximum Travel Manual (in)..........20
• Table Speed Infinitely Variable (in/min)..........196 – 984
• Maximum Cross Auto Traverse Travel (in)..........9.25
• Maximum Cross Travel Manual (in)..........9.84
• Auto Traverse Increment (in)..........(0.04 – .4)
• Crossfeed Handwheel Revolution (in)..........(0.2)
• Crossfeed Handwheel Graduation (in)..........(0.0005)
• Vertical Automatic infeed (in)..........(0.00005 -0.0025)
• Step Feed Jog (in)..........(0.00004)
• Optional Standard Magnetic Chuck Size (inch)..........8 x 18
• Grinding Spindle Speed..........3450 rpm
• Standard Grinding Wheel Diameter (in)..........8
• Standard Grinding Wheel Width (in)..........(.5 – .75)
• Standard Grinding Wheel Bore (in)..........1.25
• Spindle Motor Horsepower..........2
• Hydraulic Motor Horsepower..........1
• Crossfeed Motor Horsepower..........1/2
• Elevating Motor Horsepower..........60W
• Coolant System..........Optional
• Machine Weight (lbs.)..........2,657
• Machine Floor Space (L x W x H inch)..........71.3 x 44.6 x 65.4

Machine Features:
• Delta PLC with 7.2” color touch screen equipped with conversational program language
• Hydraulic longitudinal table
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
