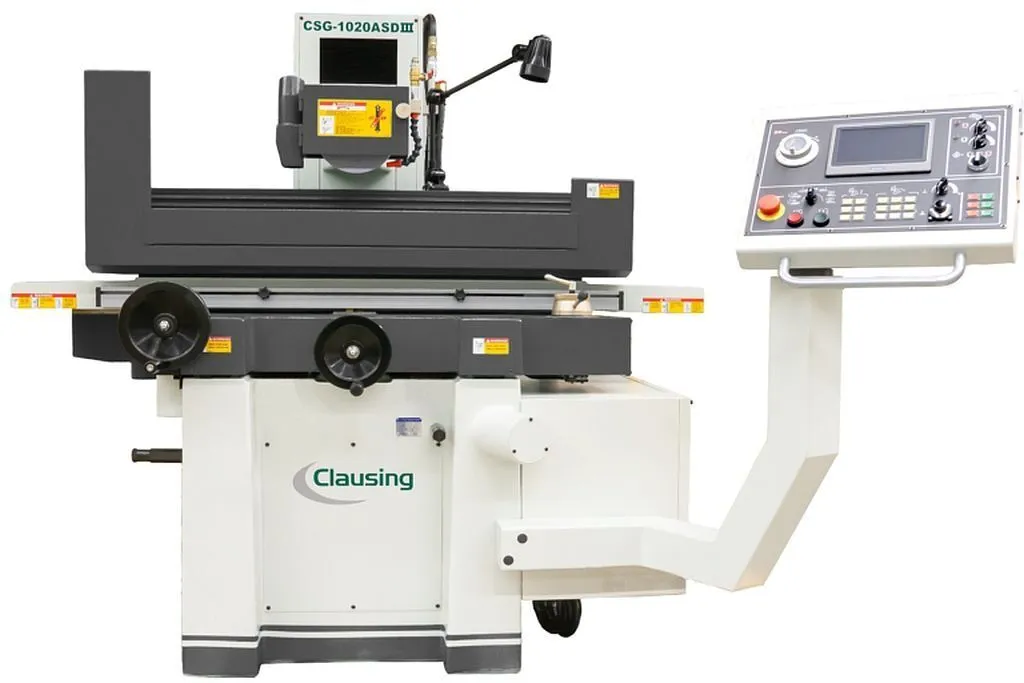

New Clausing CSG1020ASDIII surface grinder. Features a 10"x20" table, 3hp power, and an 8" diameter grinding wheel. Ideal for precision tasks with a 1" wide grinding wheel. Perfect for enhancing your workshop's capabilities.
Specifications:
• Machine Style.......... Automatic – Hydraulic
• Drive Type..........Direct Coupled
• Table Size (in).......... 10 x 20
• Longitudinal Maximum Travel Hyd (in)..........22.83
• Longitudinal Maximum Travel Manual (in).......... 24.41
• Table Speed Infinitely Variable (in/min).......... 196 – 984
• Maximum Cross Auto Traverse Travel (in).......... 10.63
• Maximum Cross Travel Manual (in).......... 11.81
• Auto Traverse Increment (in).......... (0.04 – .5)
• Crossfeed Handwheel Revolution (in)..........(0.2)
• Crossfeed Handwheel Graduation (in).......... (0.0005)
• Vertical Automatic infeed (in).......... (0.00005 - 0.0025)
• Step Feed Jog (in).......... (0.00004)
• Optional Standard Magnetic Chuck Size (inch).......... 10 x 20
• Grinding Spindle Speed.......... 3450 rpm
• Standard Grinding Wheel Diameter (in).......... 8
• Standard Grinding Wheel Width (in).......... (.75 – 1)
• Standard Grinding Wheel Bore (in).......... 1.25
• Spindle Motor Horsepower.......... 3
• Hydraulic Motor Horsepower.......... 2
• Crossfeed Motor Horsepower.......... 1
• Elevating Motor Horsepower.......... 1/4
• Coolant System.......... Optional
• Machine Weight (lbs.).......... 3,990
• Machine Floor Space (L x W x H inch).......... 93.7 x 57 x 68.9
Machine Features:
• Delta PLC with 7.2” color touch screen equipped with conversational program language
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
