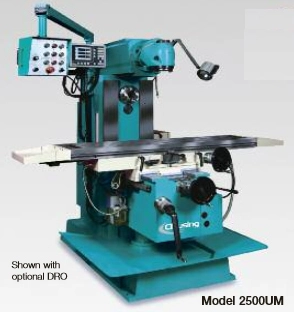

Clausing 2500U Universal Mill

Table:
Table Area..........13.7" x 59"
Table Load Capacity..........1,540 lbs.
Number of T-slots..........5
Distance Between..........T-slots 2.36"
Table Rotation..........45° right/left

Travel:
X Longitudinal..........46"
Y Cross..........15.75"
Z Knee..........20"
Distance from Spindle to Overarm..........6"

Spindle (Horizontal):
Spindle Taper..........ISO-40
Diameter of the Main Shaft Nose..........3.5"-5.06"
Milling Arbor..........1"
Number Spindle Speeds..........12
Spindle Speed Range..........40-1800 rpm

Feeds:
Longitudinal and Cross Feeds..........0.4"-47"
Vertical Feed..........0.2-23"

Rapid Traverse
Longitudinal and Cross Feeds..........47"/min.
Vertical Feed..........23"

Spindle Drive:
Main Spindle Motor..........7.5 Hp
Feed Motor..........2.5 Hp

Coolant:
Coolant Pump..........1/8 Hp

Weight:
Net Weight..........7,040 lbs.
Shipping Weight..........7,770 lbs.

Dimensions:
Shipping Dimensions..........70" x 89" x 88"
