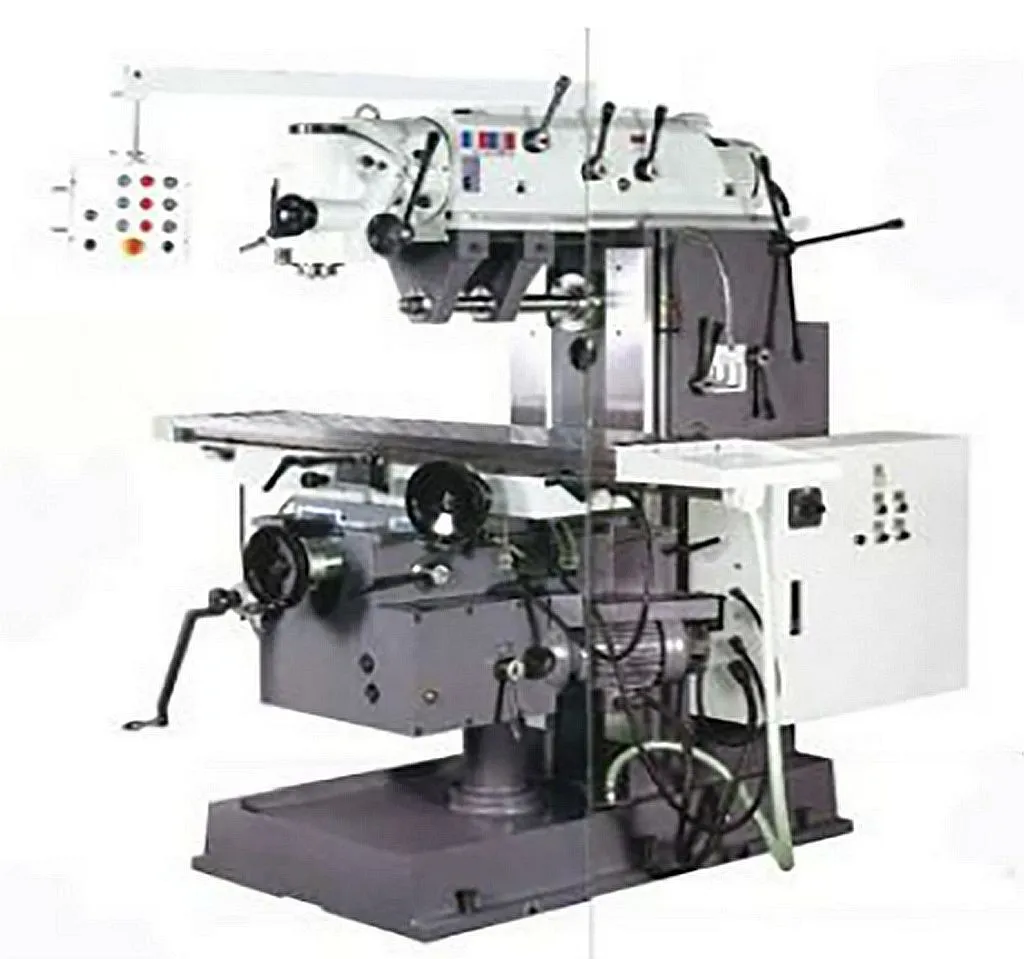

Clausing 2500M Universal Mill

Machine Style..........Universal Mill
Table area..........59” x 13.7”
Total load capacity..........1,540.00 lbs.
No. of T-slots..........5
Distance between T-slots..........2.36”
T-slot size..........(.629”)
Table rotation..........45° right/left
X Automatic Longitude..........45.27”
Y Automatic Cross..........15.74”
Z Automatic Knee..........19.68”
Distance from spindle to overarm..........6.1”
Spindle taper (Horizontal)..........ISO-40
Diameter of the main Shaft Nose (Horizontal)..........3.5”-5.06”
Milling arbor (Horizontal)..........1”
Number spindle speeds (Horizontal)..........12
Spindle speed range (Horizontal)..........40-1800rpm
Spindle motor HP (Horizontal)..........7.5
Spindle taper (Vertical)..........ISO-40
Quill diameter (Vertical).........4.92”
Quill travel (Vertical)..........3.94”
Number spindle speeds (Vertical)..........12
Spindle speed range (Vertical)..........35-1600rpm
Spindle motor HP (Vertical)..........5.5
Longitudinal & Cross Feeds..........0.393”- 47.55”/min
Vertical Feed..........0.196 – 23.77”/min
Feed motor HP..........2.5
Longitudinal & cross feeds..........47.55”/min.
Vertical feeds..........23.77”/min
Cooling Pump..........1/8 Hp
Net weight..........7,040 lbs.
Shipping weight..........7,770 lbs.
Shipping dimensions..........70” x 89” x 88”

Machine Features:
X, Y & Z Infinitely variable speed is achieved by an inverter through the gear box and controlled at the operator friendly control panel
Rapid traverse on X, Y & Z axis
Variable speed on X, Y & Z axis
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 13.7” x 59” (350 x 1500mm) table with 5 T-slots
Table swivels 45° left and right
Huron Swivel Head on ram with manual moving quill
Extra large square and dovetail square slide ways for greater accuracy
27mm ONG horizontal milling arbor & two (2) supports (“carrier bearing”)
All slide ways and table are hardened and ground
Turcite coated Y axis for wear resistance
Double clamps on all square slide ways
Motorized overarm with a 5.5 Hp motor
Horizontal & vertical manual drawbars
Automatic coolant system and coolant pump
Tool box and service tools
Standard 230 or 460 3 Phase (other voltages require a transformer or special order)
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
