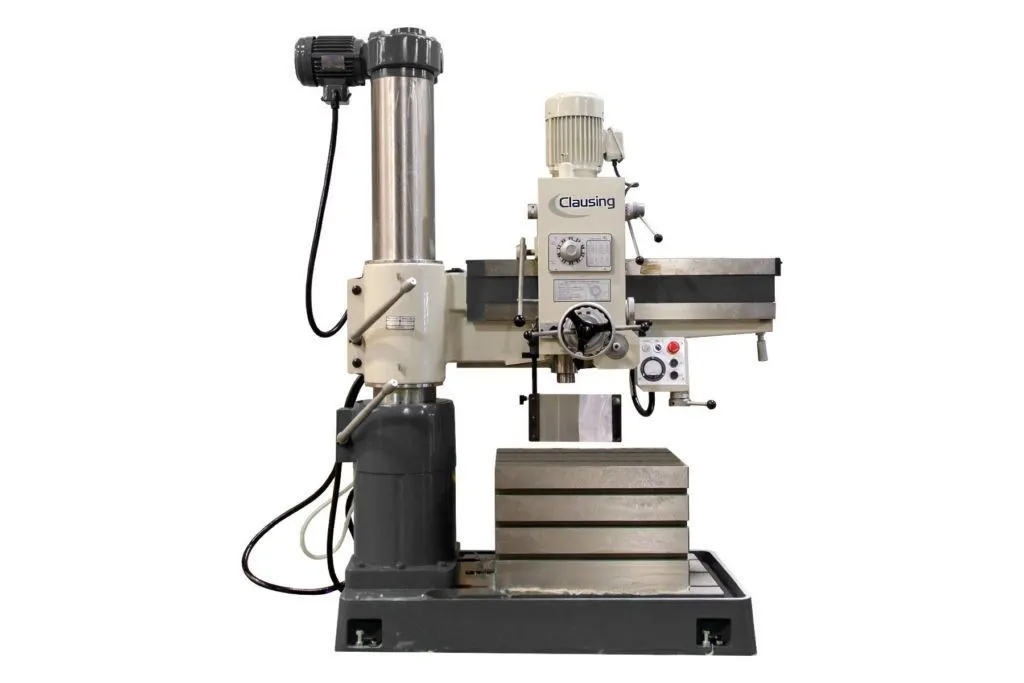

This new CL920 radial drill features: 37.4” Arm, 23.6 x 17.5 x 15 Box Table, 1.26” Drilling Capacity Steel, 1” Tapping Capacity Steel, 2 Hp Spindle Motor, W/CE Electrics, Spindle Guard, 6 – Speed Geared Head, 88 to 1500 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
Specifications:
• Machine Style...........Radial Arm Drill
• Drive Type...........Geared Head
• Number Spindle Speeds...........6
• Spindle Speeds (RPM)...........88, 154, 282, 455, 796, 1500
• Column to Spindle Center Min-Max (in)...........8.7 to 37.4
• Spindle Head Travel (in)...........28.7
• Arm Elevation Travel (in)...........33.8
• Spindle Nose Taper...........4 MT
• Spindle Travel (in)...........8.66
• Column Diameter (in)...........8.28
• Base Surface to Spindle Nose Min-Max (in)...........13.8 to 47.6
• Auxiliary Box Table Dimensions (LxWxH in)...........23.6 x 17.5 x 15
• Base Working Surface (in)...........49.6 x 25.2
• Number Of Feeds...........3
• Feed Rate in/rev...........0.002/0.0036/0.006
• Drill Capacity Steel (in)...........1.26
• Drill Capacity Cast Iron (in)...........2
• Tapping Capacity Steel (in)...........1
• Tapping Capacity Cast Iron (in)...........1.26
• Voltage...........230 or 460
• Phase...........3
• Coolant System...........Yes
• Spindle Motor Horsepower...........2
• Arm Elevation Horsepower...........1
• Coolant Pump Horsepower...........1/8
Machine Features:
• Limit safety switch for safe operation
• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
• Powerful 2 Hp spindle drive motor for heavy-duty cutting
• Extra auxiliary dial for spindle feed depth indication, allows review of spindle feed depth, .0394” to 7.874”
• Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
• Coolant System
• Low volt and overload protection
• Tool kit and manuals
• 23.6” x 17.5” x 15” Auxiliary Box Table
• CE Electrics (Spindle Guard & UL Safety Door)
• 230 or 460 volt 3 phase standard voltage, other voltages may require a transformer or special order
