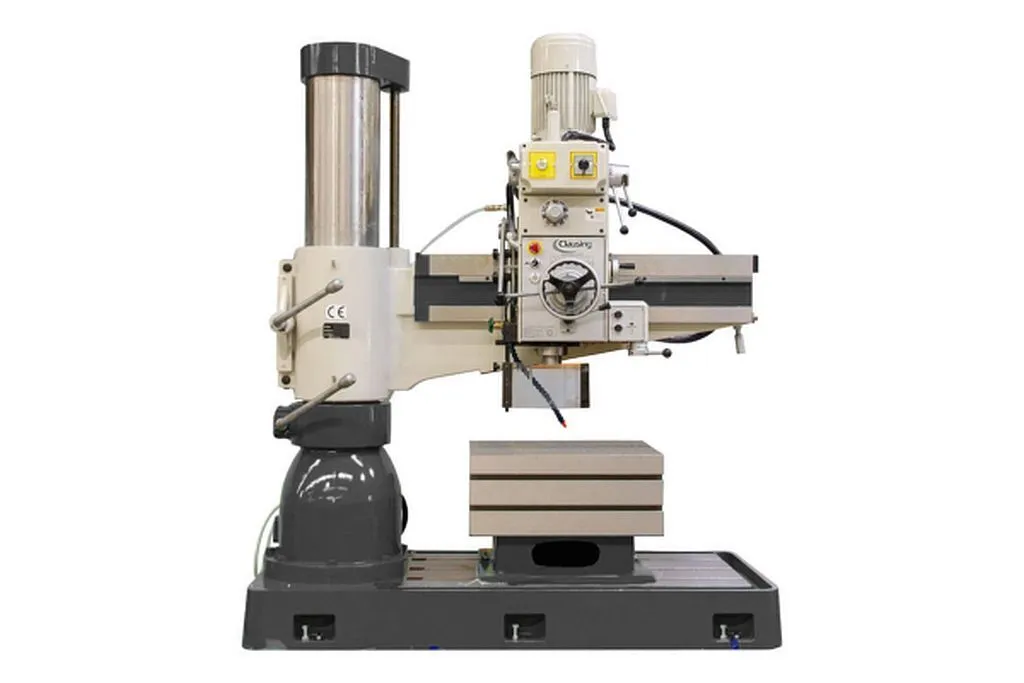

This new Clausing CL1100 features a 43.3” Arm, 25.1 x 20.4 x 16.5 Box Table, 1.65” Drilling Capacity Steel, 1” Tapping Capacity Steel, 3 Hp 2-Speed Spindle Motor, W/CE Electrics, Spindle Guard, 12 – Speed Geared Head, 44 to 1500 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
Machine Style.................. Radial Arm Drill
Drive Type..................... Geared Head
Number of Spindle Speeds....... 12
Spindle Speeds (RPM)........... 44-1500
Column to Spindle Center Min-Max (in) 11.0 to 43.3
Spindle Head Travel (in)....... 32.3
Arm Elevation Travel (in)...... 31.5
Spindle Nose Taper............. 4 MT
Spindle Travel (in)............ 9.05
Column Diameter (in)........... 10.24
Base Surface to Spindle Nose Min-Max (in) 18.5 to 50.0
Auxiliary Box Table Dimensions (LxWxH in) 25.1 x 20.4 x 16.5
Base Working Surface (in)...... 48 x 29.1
Number Of Feeds 3
Feed Rate in/rev............... 0.002/0.0036/0.006
Drill Capacity Steel (in)...... 1.65
Drill Capacity Cast Iron (in).. 2.16
Tapping Capacity Steel (in).... 1
Tapping Capacity Cast Iron (in) 1.5
Voltage 230 or 460
Phase 3
Coolant System................. Yes
Spindle Motor Horsepower (2 Speed) 3
Arm Elevation Horsepower....... 1
Coolant Pump Horsepower........ 1/8
Machine Features:
• Limit safety switch for safe operation
• High-quality cast-iron arm with heat treated and ground slides for smooth and accurate head positioning
• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability.
• Bearing bracket for gear box is fitted with standard bearings to fit arm slide for smooth gear box operation
• Powerful 3 hp spindle drive motor for heavy-duty cutting
• Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance
• Coolant System
• Low volt and overload protection
• Tool kit and manuals
• 25.1” x 20.4” x 16.5” Auxiliary Box Table
• CE Electrics (Spindle Guard & UL Safety Door)
• 230 or 460 volt 3 phase standard voltage, other voltages may require a transformer or special order
