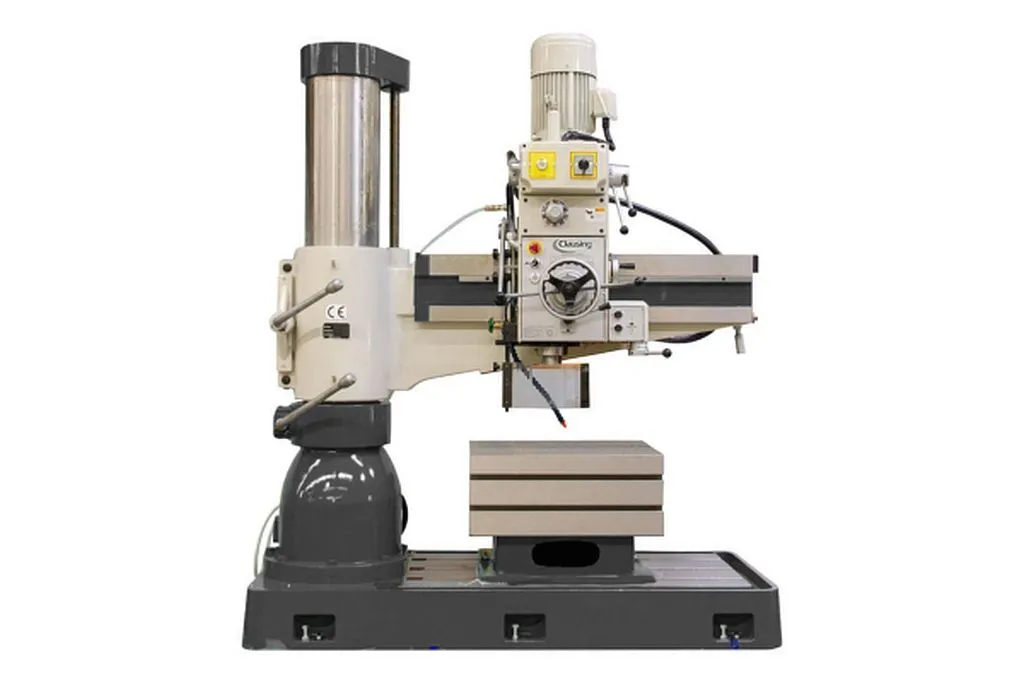

This new Clausing CL1230H Radial Drill Features a 46.1” Arm, 25.1 x 20.4 x 16.5 Box Table, 1.65” Drilling Capacity Steel, 1” Tapping Capacity Steel, 3 Hp 2-Speed Spindle Motor, W/CE Electrics, Spindle Guard, 12 – Speed Geared Head, 44 to 1500 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
Machine Style.................. Radial Arm Drill
Drive Type..................... Geared Head
Number Spindle Speeds.......... 12
Spindle Speeds (RPM)........... 44-1500
Column to Spindle Center Min-Max (in) 13.4 to 46.1
Spindle Head Travel (in)....... 35.0
Arm Elevation Travel (in)...... 34.6
Spindle Nose Taper............. 5 MT
Spindle Travel (in)............ 9.84
Column Diameter (in)........... 11.81
Base Surface to Spindle Nose Min-Max (in) 19.3 to 53.9
Auxiliary Box Table Dimensions (LxWxH in) 25.1 x 20.4 x 16.5
Base Working Surface (in)...... 48 x 29.1
Number Of Feeds 3
Feed Rate in/rev............... 0.002/0.0036/0.006
Drill Capacity Steel (in)...... 1.65
Drill Capacity Cast Iron (in).. 2.16
Tapping Capacity Steel (in).... 1
Tapping Capacity Cast Iron (in) 1.38
Voltage 230 or 460
Phase 3
Coolant System Yes
Spindle Motor Horsepower (2 Speed) 3
Arm Elevation Horsepower....... 1
Clamping Motor Horsepower...... 1
Coolant Pump Horsepower........ 1/8
