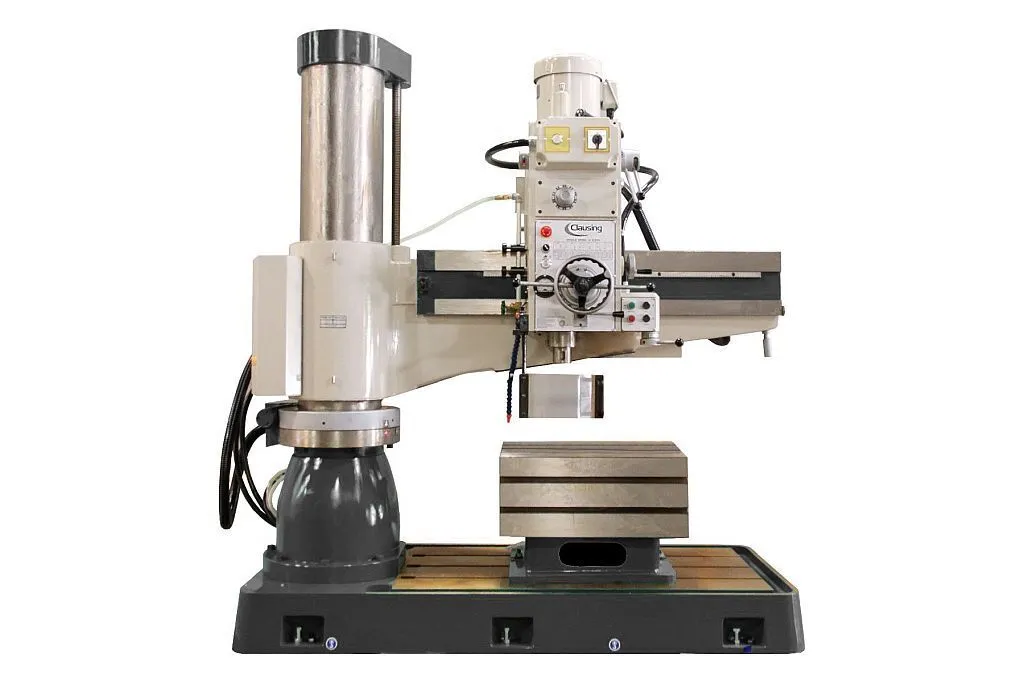

New Clausing CLC1250H Radial Drill 49.2” Arm "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
This New Clausing CLC1250H Radial Drill Features a 49.2” Arm, 25.1 x 20.4 x 16.5 Box Table, 1.97” Drilling Capacity Steel, 1.57’ Tapping Capacity Steel, 5 Hp 2-Speed Spindle Motor, W/CE Electrics, Spindle Guard, 12 – Speed Geared Head, 56 to 1450 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
Specifications:
• Machine Style..........Radial Arm Drill
• Drive Type..........Geared Head
• Number Spindle Speeds..........12
• Spindle Speeds (RPM)..........56-1450
• Column to Spindle Center Min-Max (in)..........14.17 to 49.21
• Spindle Head Travel (in)..........35.04
• Arm Elevation Travel (in)..........28.1
• Spindle Nose Taper..........5 MT
• Spindle Travel (in)..........10.63
• Column Diameter (in)..........11.81
• Base Surface to Spindle Nose Min-Max (in)..........17.36 to 52.95
• Auxiliary Box Table Dimensions (LxWxH in)..........25.1 x 20.4 x 16.5
• Base Working Surface (in)..........48 x 29.1
• Number Of Feeds..........3
• Feed Rate in/rev..........0.0023/0.004/0.008
• Drill Capacity Steel (in)..........1.97
• Drill Capacity Cast Iron (in)..........2.36
• Tapping Capacity Steel (in)..........1.57
• Tapping Capacity Cast Iron (in)..........1.97
• Voltage..........230 or 460
• Phase..........3
• Coolant System..........Yes
• Spindle Motor Horsepower (2-Speed)..........5
• Arm Elevation Horsepower..........1
• Clamping Motor Horsepower..........1
• Coolant Pump Horsepower..........1/8
Machine Features:
• Limit safety switch for safe operation
• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
• Powerful 5 hp spindle drive motor for heavy-duty cutting
• Equipped with hydraulic separate clamping unit. Vertical movement of ar is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting
• Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear
• Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation
• Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
• Coolant System
• Low volt and overload protection
• Tool kit and manuals
• 25.1” x 20.4” x 16.5” Auxiliary Box Table
• CE Electrics (Spindle Guard & UL Safety Door)
• 230 or 460 volt 3 phase standard voltage, other voltages may require a transformer or special order
This New Clausing CLC1250H Radial Drill Features a 49.2” Arm, 25.1 x 20.4 x 16.5 Box Table, 1.97” Drilling Capacity Steel, 1.57’ Tapping Capacity Steel, 5 Hp 2-Speed Spindle Motor, W/CE Electrics, Spindle Guard, 12 – Speed Geared Head, 56 to 1450 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Radial Arm Drills allow for drilling and boring small to massive holes in large oversize work pieces. Clausing’s Radial Drill design allows for the spindle head to move along the length of the arm and the arm height to be adjusted and rotated. This allows for precise drilling along many angles. Special spindle balance mechanism, superior to a traditional balance mechanism extends Balance Spring life.
Hardened and Ground steel gears, double walled column, large bearing surface for easy arm rotation, hardened steel wear strips for excellent head travel, power spindle feeds with an efficient coolant system, make Clausing Radial Drills your choice for the tough jobs.
Clausing radial arm drill presses can be NRTL certified upon request. Large Auxiliary Box Table included
Imperial
| Arm Length | 49.2" |
| Column Dia. | 11.81" |
| Power | 5 hp |
| RPM | 1,450 RPM |
Specifications:
• Machine Style..........Radial Arm Drill
• Drive Type..........Geared Head
• Number Spindle Speeds..........12
• Spindle Speeds (RPM)..........56-1450
• Column to Spindle Center Min-Max (in)..........14.17 to 49.21
• Spindle Head Travel (in)..........35.04
• Arm Elevation Travel (in)..........28.1
• Spindle Nose Taper..........5 MT
• Spindle Travel (in)..........10.63
• Column Diameter (in)..........11.81
• Base Surface to Spindle Nose Min-Max (in)..........17.36 to 52.95
• Auxiliary Box Table Dimensions (LxWxH in)..........25.1 x 20.4 x 16.5
• Base Working Surface (in)..........48 x 29.1
• Number Of Feeds..........3
• Feed Rate in/rev..........0.0023/0.004/0.008
• Drill Capacity Steel (in)..........1.97
• Drill Capacity Cast Iron (in)..........2.36
• Tapping Capacity Steel (in)..........1.57
• Tapping Capacity Cast Iron (in)..........1.97
• Voltage..........230 or 460
• Phase..........3
• Coolant System..........Yes
• Spindle Motor Horsepower (2-Speed)..........5
• Arm Elevation Horsepower..........1
• Clamping Motor Horsepower..........1
• Coolant Pump Horsepower..........1/8
Machine Features:
• Limit safety switch for safe operation
• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
• Powerful 5 hp spindle drive motor for heavy-duty cutting
• Equipped with hydraulic separate clamping unit. Vertical movement of ar is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting
• Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear
• Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation
• Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
• Coolant System
• Low volt and overload protection
• Tool kit and manuals
• 25.1” x 20.4” x 16.5” Auxiliary Box Table
• CE Electrics (Spindle Guard & UL Safety Door)
• 230 or 460 volt 3 phase standard voltage, other voltages may require a transformer or special order
