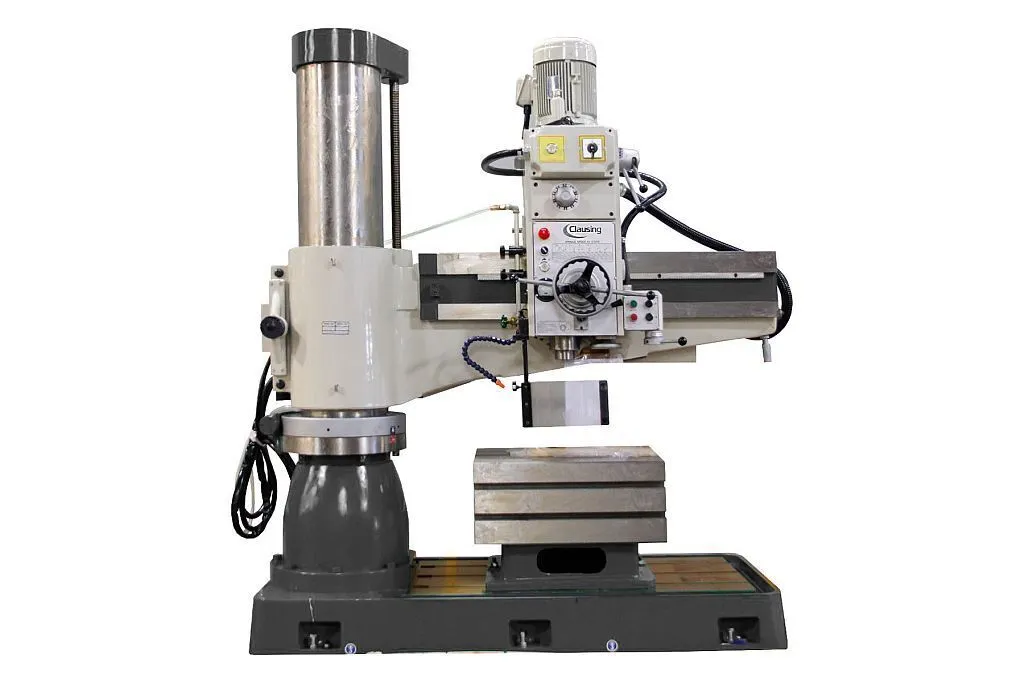

New 2025 Clausing CLC1600H Radial Drill 63” Arm "In Stock Now"

Specifications:
• Machine Style..........Radial Arm Drill
• Drive Type..........Geared Head
• Number Spindle Speeds..........12
• Spindle Speeds (RPM)..........56-1450
• Column to Spindle Center Min-Max (in)..........13.78 to 63.00
• Spindle Head Travel (in)..........49.21
• Arm Elevation Travel (in)..........36.7
• Spindle Nose Taper..........5 MT
• Spindle Travel (in)..........10.63
• Column Diameter (in)..........12.61
• Base Surface to Spindle Nose Min-Max (in)..........18.31 to 55.90
• Auxiliary Box Table Dimensions (LxWxH in)..........24.8 x 19.7 x 19.7
• Base Working Surface (in)..........70.9 x 40.4
• Number Of Feeds..........3
• Feed Rate in/rev..........0.0023/0.004/0.008
• Drill Capacity Steel (in)..........1.97
• Drill Capacity Cast Iron (in)..........2.36
• Tapping Capacity Steel (in)..........1.57
• Tapping Capacity Cast Iron (in)..........1.97
• Voltage..........230 or 460
• Phase..........3
• Coolant System..........Yes
• Spindle Motor Horsepower (2-Speed)..........5
• Arm Elevation Horsepower..........2
• Clamping Motor Horsepower..........1
• Coolant Pump Horsepower..........1/8

Machine Features:
• Limit safety switch for safe operation
• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
• Powerful 5 hp spindle drive motor for heavy-duty cutting
• Equipped with hydraulic separate clamping unit. Vertical movement of ar is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting
• Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear
• Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation
• Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
• Coolant System
• Low volt and overload protection
• Tool kit and manuals
• 24.8” x 19.7” x 19.7” Auxiliary Box Table
• CE Electrics (Spindle Guard & UL Safety Door)
• 230 or 460 volt 3 phase standard voltage, other voltages may require a transformer or special order
