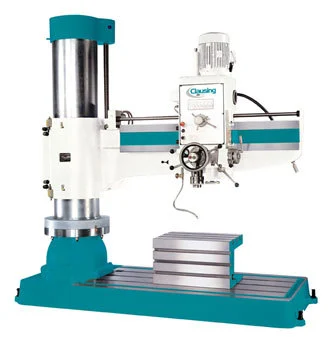

Discover precision with this new Clausing CL2000H Radial Drill featuring a 78.7” Arm, 39.3 x 31.5 x 19.7 Box Table, 2.6” Drilling Capacity Steel, 1.97” Tapping Capacity Steel, 7.5 Hp Spindle Motor, W/CE Electrics, Spindle Guard, 12 – Speed Geared Head, 35 to 1890 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
Machine Style.................. Radial Arm Drill
Drive Type..................... Geared Head
Number Spindle Speeds.......... 12
Spindle Speeds (RPM)........... 35-1890
Column to Spindle Center Min-Max (in) 19.3 to 78.7
Spindle Head Travel (in)....... 59.4
Arm Elevation Travel (in)...... 55.1
Spindle Nose Taper............. 5 MT
Spindle Travel (in)............ 14.6
Column Diameter (in)........... 17
Base Surface to Spindle Nose Min-Max (in) 19.7 to 78.4
Auxiliary Box Table Dimensions (LxWxH in) 39.3 x 31.5 x 19.7
Base Working Surface (in)...... 114.5 x 43.3
Number Of Feeds 6
Feed Rate in/rev............... 0.003 – 0.038
Drill Capacity Steel (in)...... 2.6
Drill Capacity Cast Iron (in).. 2.75
Tapping Capacity Steel (in).... 1.97
Tapping Capacity Cast Iron (in) 2.36
Boring Capacity Steel (in)..... 5
Boring Capacity Cast Iron (in). 7.28
Voltage........................ 230 or 460
Phase 3
Coolant System Yes
Spindle Motor Horsepower....... 7.5
Arm Elevation Horsepower....... 3
Clamping Motor Horsepower...... 1
Coolant Pump Horsepower........ 1/8
