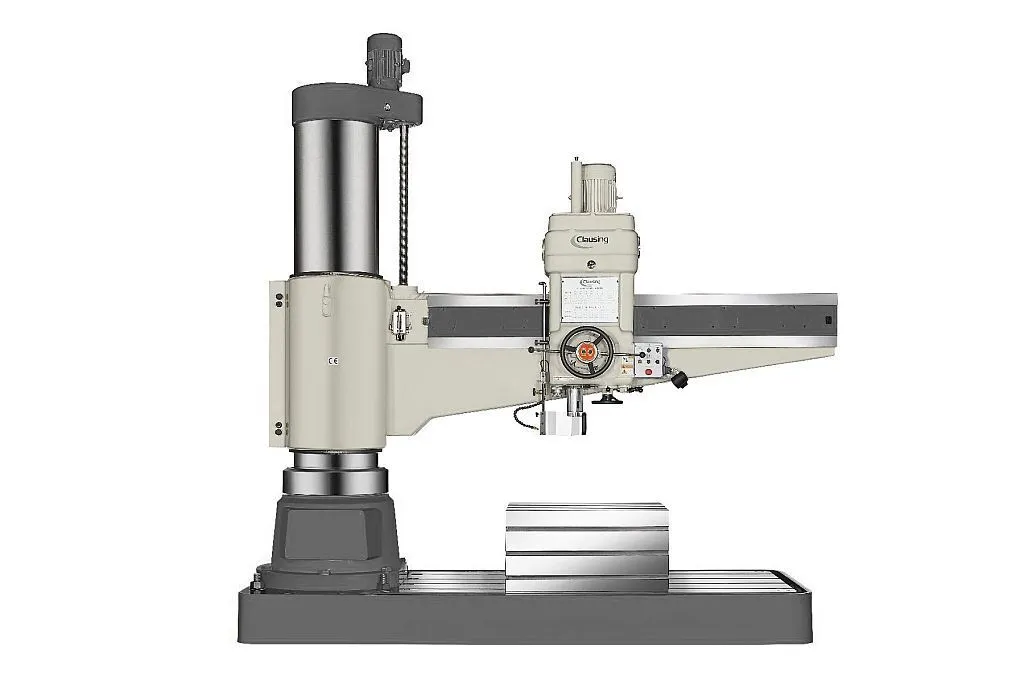

This new CLC2500 radial drill features a 98.4” Arm, 39.4 x 31.5 x 22 Box Table, 3.15” Drilling Capacity Steel, 2.56” Tapping Capacity Steel, 10 Hp Spindle Motor, W/CE Electrics, Spindle Guard, 16 – Speed Geared Head, 16 to 1250 rpm Spindle Speed, Self-Contained Coolant System, 230/460 Volts 3 Phase
Machine Style.................. Radial Arm Drill
Drive Type..................... Geared Head
Number Spindle Speeds.......... 16
Spindle Speeds (RPM)........... 16-1250
Column to Spindle Center Min-Max (in) 21.6 to 78.7
Spindle Head Travel (in)....... 78.7
Arm Elevation Travel (in)...... 57.1
Spindle Nose Taper............. 6 MT
Spindle Travel (in)............ 17.7
Column Diameter (in)........... 21.65
Base Surface to Spindle Nose Min-Max (in)... 21.6 to 78.7
Auxiliary Box Table Dimensions (LxWxH in)... 39.4 x 31.5 x 22
Base Working Surface (in)...... 86.8 x 43.4
Number Of Feeds................ 16
Feed Rate in/rev............... 0.0015 – 0.126
Drill Capacity Steel (in)...... 3.15
Drill Capacity Cast Iron (in).. 3.98
Tapping Capacity Steel (in).... 2.56
Tapping Capacity Cast Iron (in) 2.95
Voltage........................ 230 or 460
Phase.......................... 3
Coolant System................. Yes
Spindle Motor Horsepower....... 10
Arm Elevation Horsepower....... 5
Clamping Motor Horsepower...... 1
Coolant Pump Horsepower........ 1/8
