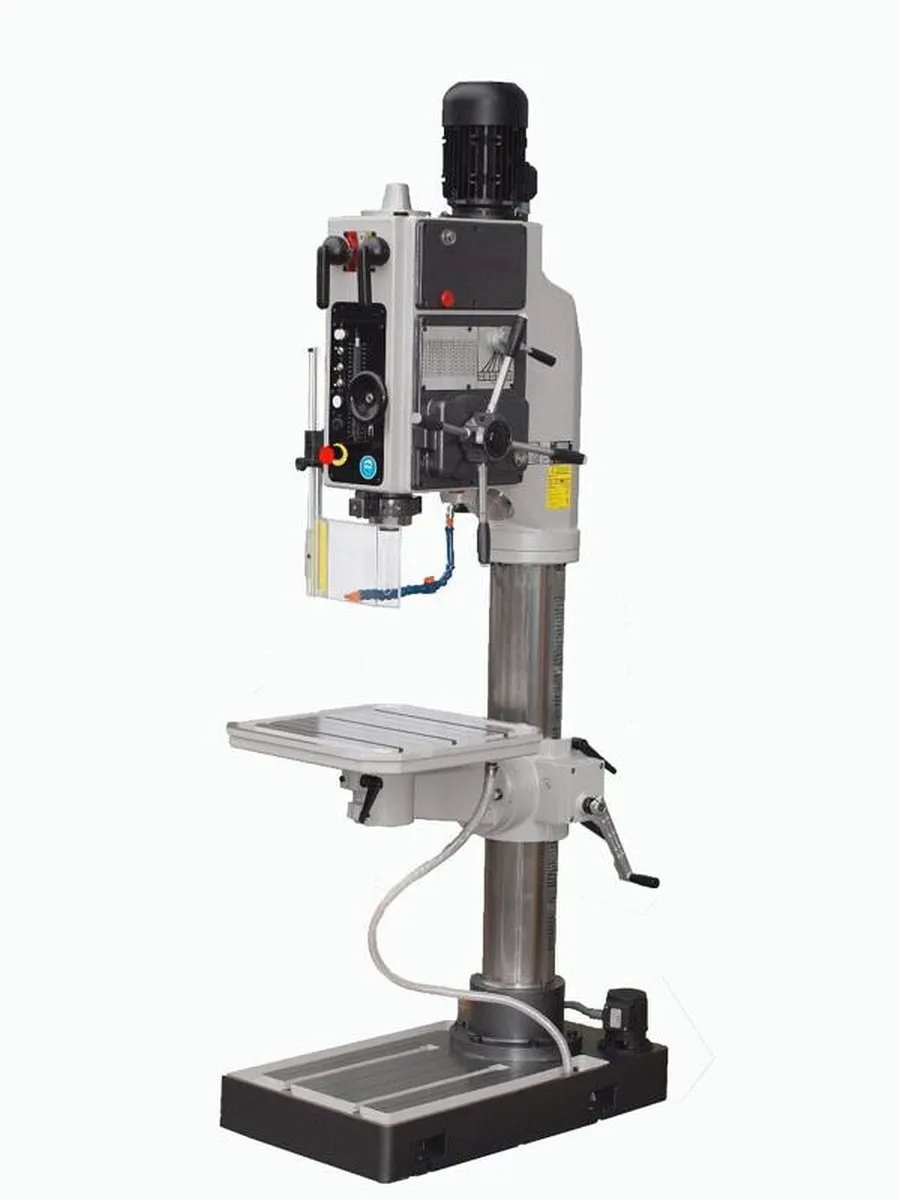

New 2025 Clausing B70 Iberdrill 33” Floor Drill Press Gear Head Drive, Adjustable Rotating Work Table

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 12
Spindle Speeds (RPM):..........
62 – 81 – 104 – 133 – 191 – 250
321 – 410 – 532 – 683 – 878 – 1120
Column to Spindle Center (in).......... 16.5
Spindle Nose.......... 5MT
Spindle Travel (in).......... 10.24
Quill Feed.......... Electromagnetic Clutch
6 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118, 0.0157, 0.0197, 0.0236
Spindle to Work Surface Min/Max. (in).......... 3.15 / 25.98
Column Diameter (in).......... 8.66
Adjustable Table Surface (in).......... 23.6 x 27.6
Worktable T-Slots (in).......... 1/2
Base Size (in).......... 35.8 x 23.2
Drill Capacity with Manual Feed (in).......... 2.75
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 7.5
Machine Weight (lbs.).......... 1,852
Machine Dimensions (WxDxH in).......... 24 x 40 x 103.9
Shipping Weight (lbs.).......... 2,072
Shipping Dimensions ships laying down (LxWxD in).......... 106.3 x 28 x 48

Machine Features:

• Gear head drive with shift levers on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 7.5 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Electromagnetic clutch quill feed system
• Adjustable work table, rotating and tilting
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
