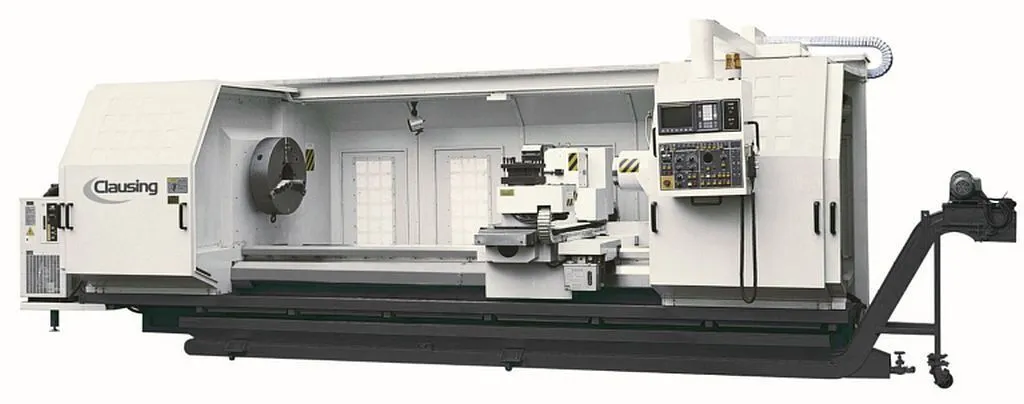

New 2025 Clausing CB 45"x409" Large Swing CNC, Hollow Spindle Oil Country Lathe, 45” Swing over Bed

Specifications:
• Machine Style..........CNC Large Swing Lathe
• Spindle Speed Control.......... Inverter Variable
• Spindle (Hp) Inverter (Hp)..........50/60
• Swing Over Bed (inch)..........45
• Swing Over Cross slide (inch)..........28
• ** Maximum Weight Between Centers (lbs.) Standard..........14,300
• ** Maximum Weight BC with Steady (lbs.) Standard..........16,500
• ** Maximum Unsupported weight in Chuck (lbs.) STD..........6,600
• Distance Between Centers (inch)..........409
• Bed Width Across V and Flat (inch)..........28
• Bed Height from Floor (inch)..........26.8
• Spindle Bore (inch)..........6 – 24.02
• Spindle Nose A-Mount..........11-20
• Number of Spindle Speeds Variable..........4-Auto Change
• Spindle Speed RPM Range (standard RPM)..........7-700
• X- Axis Cutting Feed Rate (in/rev)..........0.00004 – 9.84
• X-Axis Rapid Rate (in/min)..........236.16
• Z-Axis Cutting Rate (in/rev)..........0.00004 – 15.75
• Z-Axis Rapid Rate (in/min)..........314.88
• X Ballscrew diameter (inch)..........1.77
• Z Axis Ballscrew Diameter (inch)..........3.15
• Tailstock Quill Diameter standard (inch)..........9.25
• Tailstock Quill Type..........Rotating
• Tailstock quill Travel (inch)..........7.87
• Tailstock Quill Taper standard..........6 MT
• Coolant System..........Yes
• Voltage Required..........230/460
• Phase..........3
• Machine Foot Print (LxWxH) (inch)..........Based on Specific Model
• Machine Weight (lbs.)..........Based on Specific Model
** These weights can be increased with larger spindle bores and spindle bearings

Machine Features:
• Fanuc Oi Control (other controls optional)
• 4-range auto change AC variable drive with CSS control 7-700 rpm
• 6.02” Spindle bore A2-11 nose mount with 7.87” ID Spindle bearing
• Optional spindle bores to 24.02”
• Hardened and Ground bed ways and gears
• Turcite “B” fitted between saddle and bed to greatly reduce friction
• Full enclosed interlock guarding
• 50 Hp Main spindle motor 60 Hp Inverter Optional sizes available
• Front and Rear belt chip conveyor
• Electric cabinet refrigeration unit
• Spindle oil refrigeration unit
• 4-Way auto hydraulic turret
• Coolant system
• Automatic lubrication system
• Hydraulic tailstock w/9.25” rotating quill programmable, and hydraulic body movement
• Halogen worklight
• Leveling screw and pads
• Optional CE electrics
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service.
