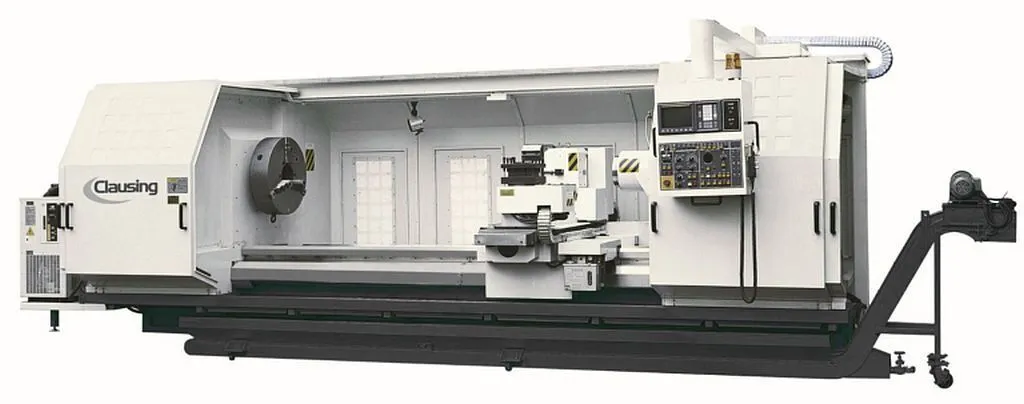

2025 CB Series – Clausing New Large Swing CNC Lathe, Hollow Spindle Oil Country Lathe, 45” Swing over Bed

Machine Style CNC Large Swing Lathe
Spindle Speed Control Inverter Variable
Spindle (Hp) Inverter (Hp) 50/60
Swing Over Bed (inch) 45
Swing Over Cross slide (inch) 28
** Maximum Weight Between Centers (lbs.) Standard 14,300
** Maximum Weight BC with Steady (lbs.) Standard 16,500
** Maximum Unsupported weight in Chuck (lbs.) STD 6,600
Distance Between Centers (inch) 488
Bed Width Across V and Flat (inch) 28
Bed Height from Floor (inch) 26.8
Spindle Bore (inch) 6 – 24.02
Spindle Nose A-Mount 11-20
Number of Spindle Speeds Variable 4-Auto Change
Spindle Speed RPM Range (standard RPM) 7-700
X- Axis Cutting Feed Rate (in/rev) 0.00004 – 9.84
X-Axis Rapid Rate (in/min) 236.16
Z-Axis Cutting Rate (in/rev) 0.00004 – 15.75
Z-Axis Rapid Rate (in/min) 314.88
X Ballscrew diameter (inch) 1.77
Z Axis Ballscrew Diameter (inch) 3.15
Tailstock Quill Diameter standard (inch) 9.25
Tailstock Quill Type Rotating
Tailstock quill Travel (inch) 7.87
Tailstock Quill Taper standard 6 MT
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Foot Print (LxWxH) (inch) Based on Specific Model
Machine Weight (lbs.) Based on Specific Model
** These weights can be increased with larger spindle bores and spindle bearings
