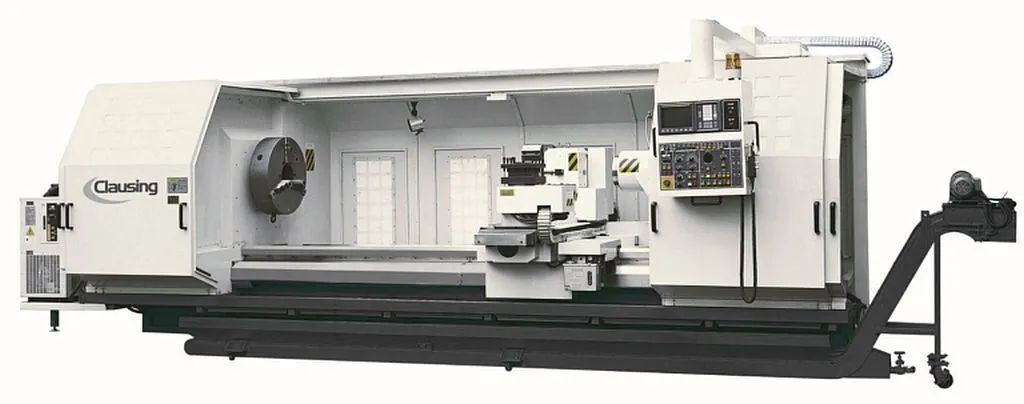

2025 CB Series – Clausing Large Swing CNC Lathe, Hollow Spindle Oil Country Lathe, 70” Swing over Bed

Machine Style................................... CNC Large Swing Lathe
Spindle Speed Control........................... Inverter Variable
Spindle (Hp) Inverter (Hp)...................... 50/60
Swing Over Bed (inch)........................... 70
Swing Over Cross slide (inch)................... 28 – 53
** Maximum Weight Between Centers (lbs.) Standard 14,300
** Maximum Weight BC with Steady (lbs.) Standard 16,500
** Maximum Unsupported weight in Chuck (lbs.) STD 6,600
Distance Between Centers (inch).................. 291
Bed Width Across V and Flat (inch)............... 28
Bed Height from Floor (inch)..................... 26.8
Spindle Bore (inch).............................. 6 – 24.02
Spindle Nose A-Mount............................. 11-20
Number of Spindle Speeds Variable................ 4-Auto Change
Spindle Speed RPM Range (standard RPM)........... 7-700
X- Axis Cutting Feed Rate (in/rev)............... 0.00004 – 9.84
X-Axis Rapid Rate (in/min)....................... 236.16
Z-Axis Cutting Rate (in/rev)..................... 0.00004 – 15.75
Z-Axis Rapid Rate (in/min)....................... 314.88
X Ballscrew diameter (inch)...................... 1.77
Z Axis Ballscrew Diameter (inch)................. 3.15
Tailstock Quill Diameter standard (inch)......... 9.25
Tailstock Quill Type............................. Rotating
Tailstock quill Travel (inch).................... 7.87
Tailstock Quill Taper standard................... 6 MT
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Foot Print (LxWxH) (inch) Based on Specific Model
Machine Weight (lbs.) Based on Specific Model
** These weights can be increased with larger spindle bores and spindle bearings
