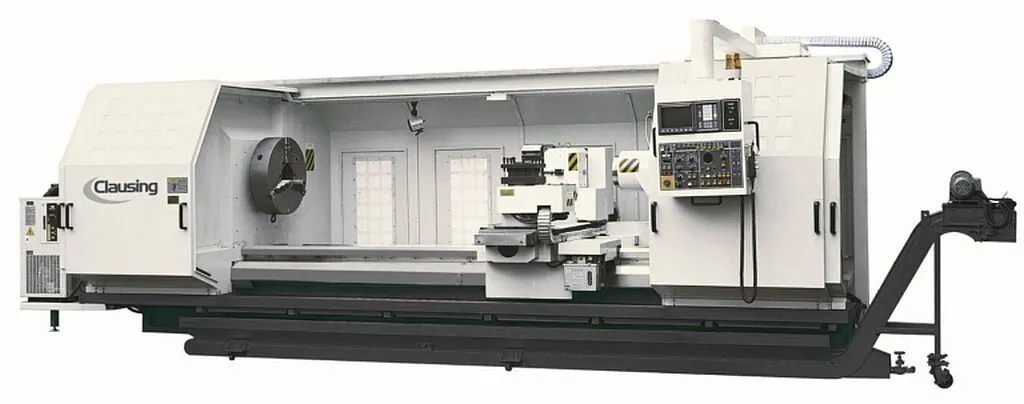

2025 Clausing CB 70X448, a new CNC Lathe with a 70" swing, 448" machining length, and 24.02" bar capacity. Featuring 75 hp, 300 RPM, inverter variable spindle control, and a robust tailstock, it supports weights up to 33,000 lbs. Ideal for heavy-duty machining.
Machine Style:.................................. CNC Large Swing Lathe
Spindle Speed Control:........................... Inverter Variable
Spindle (Hp) Inverter (Hp)...................... 75/100
Swing Over Bed: (inch)........................... 80
Swing Over Cross slide: (inch)................... 60
** Maximum Weight Between Centers (lbs.) Standard: 33,000
** Maximum Weight BC with Steady (lbs.) Standard: 37,400
** Maximum Unsupported weight in Chuck (lbs.) STD: 19,800
Distance Between Centers (inch)................. 448
Bed Width Across V and Flat (inch).............. 47.5
Bed Height from Floor (inch).................... 30
Spindle Bore (inch)............................. 24.02
Spindle Nose A-Mount............................ 11-20
Number of Spindle Speeds Variable:.............. 4-Auto Change
Spindle Speed RPM Range (standard RPM).......... 3-300
X- Axis Cutting Feed Rate (in/rev).............. 0.00004 – 9.84
X-Axis Rapid Rate (in/min)...................... 236.16
Z-Axis Cutting Rate (in/rev)..............
