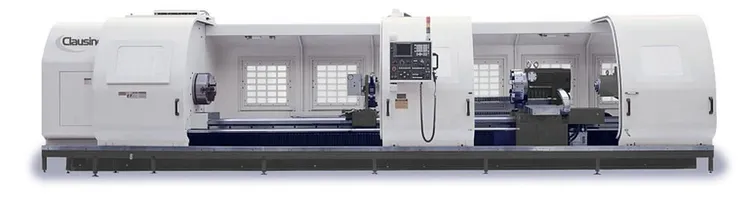

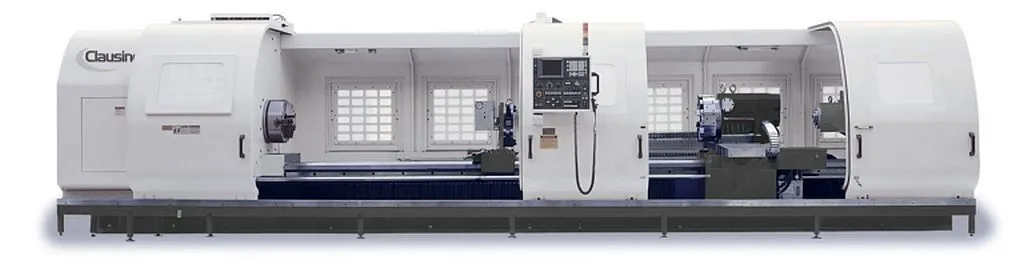

2025 CC Series – Clausing Large Swing CNC Lathe, Hollow Spindle Oil Country Lathe, 45” Swing over Bed

Machine Style.................. CNC Large Swing Lathe
Spindle Speed Control.......... Inverter Variable
Spindle (Hp) Inverter (Hp).......... 50/60
Swing Over Bed (inch)............... 45
Swing Over Cross slide (inch)....... 31
** Maximum Weight Between Centers (lbs.) Standard 22,000
** Maximum Weight BC with Steady (lbs.) Standard 26,400
** Maximum Unsupported weight in Chuck (lbs.) STD 9,900
Distance Between Centers (inch).......... 173
Bed Width Across V and Flat (inch)....... 40
Bed Height from Floor (inch)............. 29
Spindle Bore (inch)........... 6 – 24.02
Spindle Nose A-Mount.......... 11-20
Number of Spindle Speeds Variable.......... 4-Auto Change
Spindle Speed RPM Range (standard RPM)..........7-700
X- Axis Cutting Feed Rate (in/rev).......... 0.00004 – 9.84
X-Axis Rapid Rate (in/min).......... 236.16
Z-Axis Cutting Rate (in/rev)........ 0.00004 – 15.75
Z-Axis Rapid Rate (in/min).......... 314.88
X Ballscrew diameter (inch).......... 1.97
Z Axis Ballscrew Diameter (inch).......... 3.15
Tailstock Quill Diameter standard (inch).......... 9.25
Tailstock Quill Type................... Rotating
Tailstock quill Travel (inch).......... 7.87
Tailstock Quill Taper standard......... 6 MT
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Foot Print (LxWxH) (inch).......... Based on Specific Model
Machine Weight (lbs.)..................... Based on Specific Model
** These weights can be increased with larger spindle bores and spindle bearings
