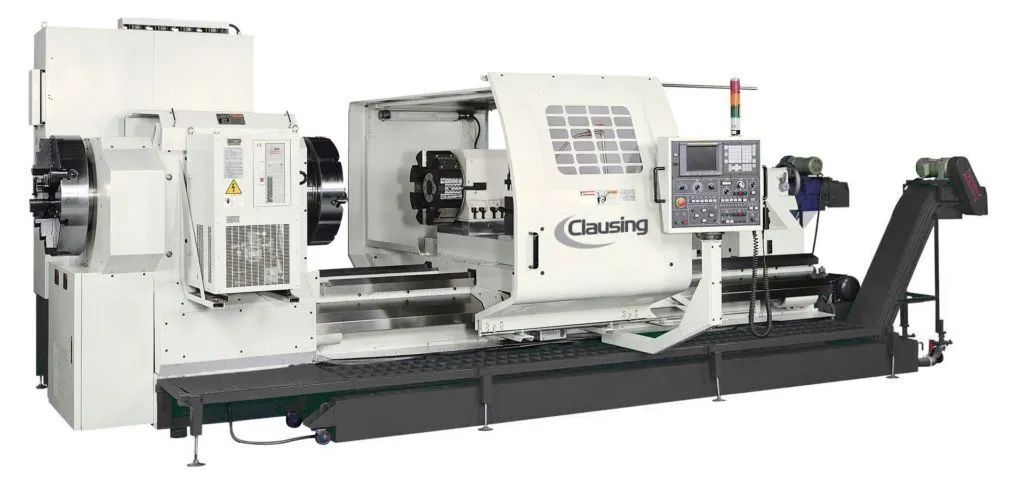

CK Series – Clausing Large Swing CNC Lathe, Large Capacity Oil Country Lathe, 80” Swing over Bed

Machine Style:.................................. CNC Large Swing Lathe
Spindle Speed Control:........................... Inverter Variable
Spindle (Hp) Inverter (Hp)...................... 75/100
Swing Over Bed: (inch)........................... 80
Swing Over Cross slide: (inch)................... 60
** Maximum Weight Between Centers (lbs.) Standard: 33,000
** Maximum Weight BC with Steady (lbs.) Standard: 37,400
** Maximum Unsupported weight in Chuck (lbs.) STD: 19,800
Distance Between Centers (inch)................. 476
Bed Width Across V and Flat (inch).............. 47.5
Bed Height from Floor (inch).................... 30
Spindle Bore (inch)............................. 24.02
Spindle Nose A-Mount............................ 11-20
Number of Spindle Speeds Variable:.............. 4-Auto Change
Spindle Speed RPM Range (standard RPM).......... 3-300
X- Axis Cutting Feed Rate (in/rev).............. 0.00004 – 9.84
X-Axis Rapid Rate (in/min)...................... 236.16
Z-Axis Cutting Rate (in/rev).................... 0.00004 – 15.75
Z-Axis Rapid Rate (in/min)...................... 314.88
X Ballscrew diameter (inch)..................... 1.97
Z Axis Ballscrew Diameter (inch)................ 3.15
Tailstock Quill Diameter standard (inch)........ 9.25
Tailstock Quill Type:........................... Rotating
Tailstock quill Travel: (inch).................. 7.87
Tailstock Quill Taper standard:................. 6 MT
Coolant System: Yes
Voltage Required:............................... 230/460
Phase: 3
Machine Foot Print (LxWxH) (inch)............... Based on Specific Model
Machine Weight (lbs.)........................... Based on Specific Model
