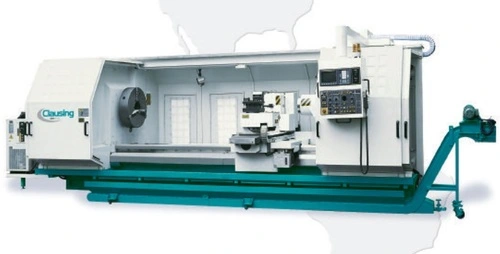

New 2025 Clausing CL 35"x160" Large Swing CNC, Hollow Spindle Oil Country Lathe, 35" Swing Over Bed

Specifications:
Machine Style..........CNC Large Swing Lathe
Spindle Speed Control..........Inverter Variable
Spindle (Hp) Inverter (Hp)..........50/60
Swing Over Bed (inch)..........50
Swing Over Cross slide (inch)..........35
** Maximum Weight Between Centers (lbs.) Standard..........11,000
** Maximum Weight BC with Steady (lbs.) Standard..........13,200
** Maximum Unsupported weight in Chuck (lbs.) STD..........5,500
Distance Between Centers (inch)..........122
Bed Width Across V and Flat (inch)..........22
Bed Height from Floor (inch)..........26.8
Spindle Bore (inch)..........16.14
Spindle Nose A-Mount..........11-20
Number of Spindle Speeds Variable..........4-Auto Change
Spindle Speed RPM Range (standard RPM)..........7-700
X- Axis Cutting Feed Rate (in/rev)..........0.00004 – 9.84
X-Axis Rapid Rate (in/min)..........236.16
Z-Axis Cutting Rate (in/rev)..........0.00004 – 15.75
Z-Axis Rapid Rate (in/min)..........314.88
X Ballscrew diameter (inch)..........1.57
Z Axis Ballscrew Diameter (inch)..........2.48
Tailstock Quill Diameter standard (inch)..........9.25
Tailstock Quill Type..........Rotating
Tailstock quill Travel (inch)..........7.87
Tailstock Quill Taper standard..........6 MT
Coolant System..........Yes
Voltage Required..........230/460
Phase..........3
Machine Footprint (LxWxH) (inch)..........Based on Specific Model
Machine Weight (lbs.)..........Based on Specific Model
** These weights can be increased with larger spindle bores and spindle bearings

Machine Features:
• Fanuc Oi Control (other controls optional)
• 4-range auto change AC variable drive with CSS control 7-700 rpm
• 6.02” Spindle bore A2-11 nose mount with 7.87” ID Spindle bearing
• Optional spindle bores to 16.14”
• Hardened and Ground bed ways and gears
• Turcite “B” fitted between saddle and bed to greatly reduce friction
• Full enclosed interlock guarding
• 50 Hp Main spindle motor 60 Hp Inverter Optional sizes available
• Front and Rear belt chip conveyor
• Electric cabinet refrigeration unit
• Spindle oil refrigeration unit
• 4-Way auto hydraulic turret
• Coolant system
• Automatic lubrication system
• Hydraulic tailstock w/9.25” rotating quill programmable, and hydraulic body movement
• Halogen worklight
• Leveling screw and pads
• Optional CE electrics
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
