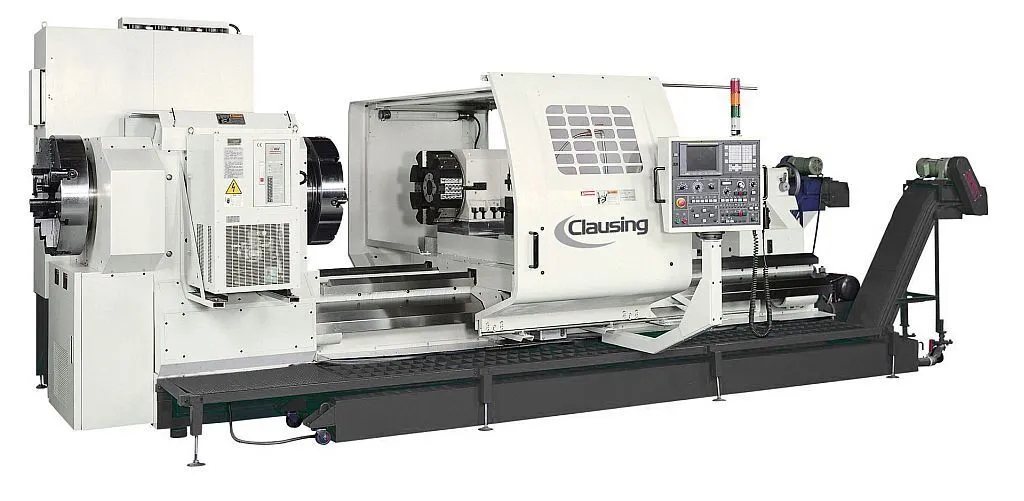

2025 CL Series – Clausing Large Swing CNC Lathe, Hollow Spindle Oil Country Lathe, 50” Swing over Bed

Machine Style CNC Large Swing Lathe
Spindle Speed Control Inverter Variable
Spindle (Hp) Inverter (Hp) 50/60
Swing Over Bed (inch) 50
Swing Over Cross slide (inch) 35
** Maximum Weight Between Centers (lbs.) Standard 11,000
** Maximum Weight BC with Steady (lbs.) Standard 13,200
** Maximum Unsupported weight in Chuck (lbs.) STD 5,500
Distance Between Centers (inch) 200
Bed Width Across V and Flat (inch) 22
Bed Height from Floor (inch) 26.8
Spindle Bore (inch) 16.14
Spindle Nose A-Mount 11-20
Number of Spindle Speeds Variable 4-Auto Change
Spindle Speed RPM Range (standard RPM) 7-700
X- Axis Cutting Feed Rate (in/rev) 0.00004 – 9.84
X-Axis Rapid Rate (in/min) 236.16
Z-Axis Cutting Rate (in/rev) 0.00004 – 15.75
Z-Axis Rapid Rate (in/min) 314.88
X Ballscrew diameter (inch) 1.57
Z Axis Ballscrew Diameter (inch) 2.48
Tailstock Quill Diameter standard (inch) 9.25
Tailstock Quill Type Rotating
Tailstock quill Travel (inch) 7.87
Tailstock Quill Taper standard 6 MT
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Footprint (LxWxH) (inch) Based on Specific Model
Machine Weight (lbs.) Based on Specific Model
** These weights can be increased with larger spindle bores and spindle bearings

Machine Features:
Fanuc Oi Control (other controls optional)
4-range auto change AC variable drive with CSS control 7-700 rpm
6.02” Spindle bore A2-11 nose mount with 7.87” ID Spindle bearing
Optional spindle bores to 16.14”
Hardened and Ground bed ways and gears
Turcite “B” fitted between saddle and bed to greatly reduce friction
Full enclosed interlock guarding
50 Hp Main spindle motor 60 Hp Inverter Optional sizes available
Front and Rear belt chip conveyor
Electric cabinet refrigeration unit
Spindle oil refrigeration unit
4-Way auto hydraulic turret
Coolant system
Automatic lubrication system
Hydraulic tailstock w/9.25” rotating quill programmable, and hydraulic body movement
Halogen worklight
Leveling screw and pads
Optional CE electrics
A one-year warranty backed by Clausing Service Center.
We are dedicated to support our customers with parts and service.
