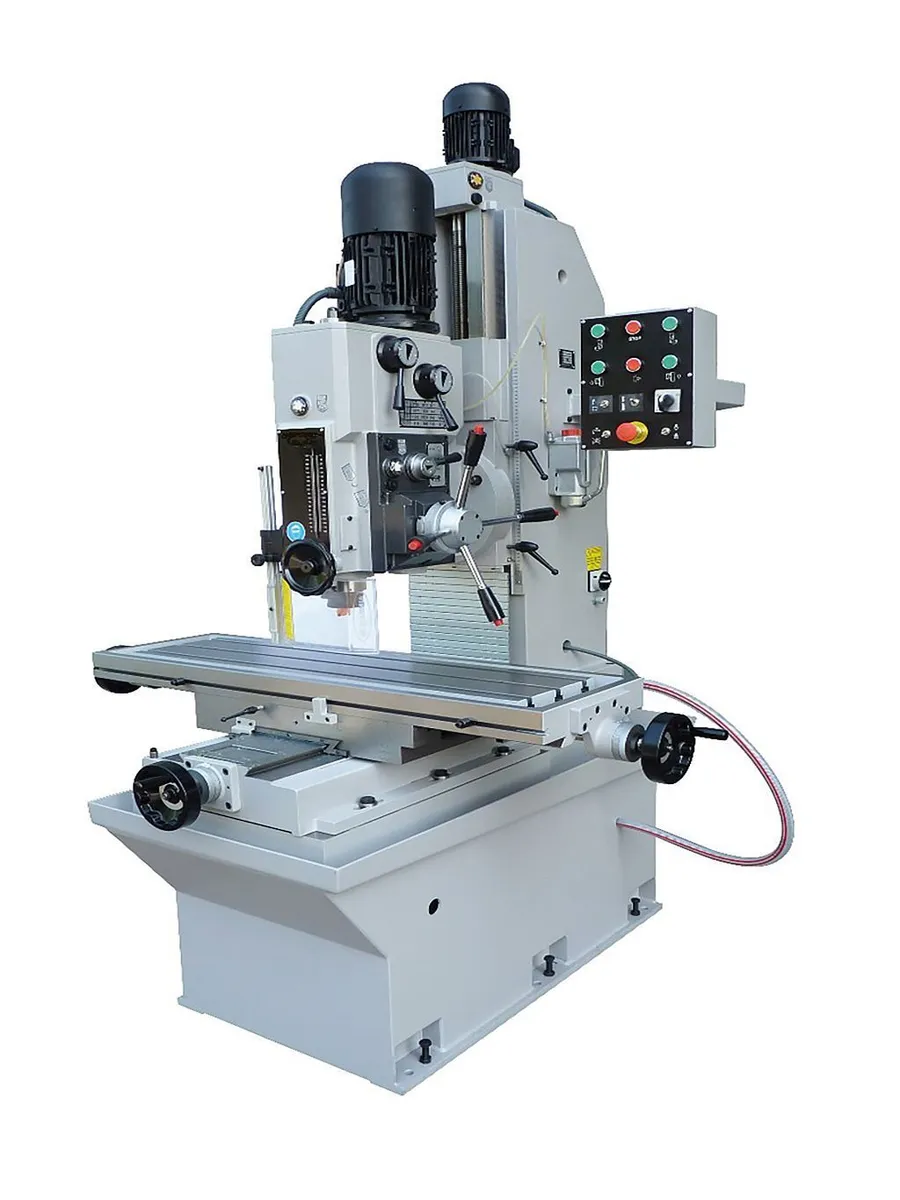

New 2025 Clausing BF35 Iberdrill 30.7” Prismatic Column Floor Drill Press Gear Head Drive, Co-ordinate Cross Table
Have one to sell?
ConditionNew
New
Discover precision with the new Clausing BF35 – 30.7” Drill Press by IBERDRILL. A heavy-duty single spindle, prismatic column floor drill featuring gear head drive, motorized column head elevation, and 16 spindle speeds up to 2,670 RPM.
Machine Style.......... Prismatic Column Floor Drill W/Co-ordinate Cross Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 16
Spindle Speeds (RPM)
113 – 162 – 226 – 248 – 324 – 363– 417 – 496
597 – 726 – 834 – 912 – 1194 – 1335 – 1824 – 2670
Column to Spindle Center (in) 15.35
Spindle Nose............... 4MT
Spindle Travel (in)........ 7.87
Quill Feed.......... Electromagnetic Clutch
3 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0094
Spindle to Work Surface Min/Max. (in).......... 0 / 23.23
Column Head Elevation.......... Motorized
Co-ordinate Table Surface (in).......... 48 x 14.17
Work Table T-Slots (in) 5/8
Base Size (in)............... 57.1 x 29.53
Drill Capacity with Manual Feed (in) 1.38
E-Stop Switch............... Yes
Voltage.......... 230 or 460
Phase............ Three
2 Speed Motor Horsepower.......... 2
Machine Weight (lbs.) ........2,756
Machine Dimensions (WxDxH in).......... 61.8 x 57.1 x 81.9
Shipping Weight (lbs.) ........3,197
Shipping Dimensions (LxWxD in).......... 66 x 66 x 99
Discover precision with the new Clausing BF35 – 30.7” Drill Press by IBERDRILL. A heavy-duty single spindle, prismatic column floor drill featuring gear head drive, motorized column head elevation, and 16 spindle speeds up to 2,670 RPM.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing IberDrill Gear Head Drive Drill Press with state-of-the-art technology allows you to select the best rpm for the tool with step speed shift levers. 16 speeds 113 – 2670 rpm combined with 2 Hp spindle motor give excellent torque for drilling large holes, small holes to spot-face, counter-bore and ream. Co-ordinate cross table with X-travel 27.5 “and Y travel 14.17 give easy part set up and production runs. Electromagnetic clutch quill feed, with capacity production rated 1.38” in steel 1.57” in cast iron, Adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. Drilling head tilts left or right 45 degrees for angle drilling.
Imperial
| Swing | 23.23" |
| Capacity (Mild Steel) | 1.38" |
| Capacity (Cast Iron) | 1.57" |
| Power | 2 hp |
| RPM | 2,670 RPM |
| Dimensions | 61.8 x 57.1 x 81.9 |
| Weight | 2756 lbs. |
Machine Style.......... Prismatic Column Floor Drill W/Co-ordinate Cross Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 16
Spindle Speeds (RPM)
113 – 162 – 226 – 248 – 324 – 363– 417 – 496
597 – 726 – 834 – 912 – 1194 – 1335 – 1824 – 2670
Column to Spindle Center (in) 15.35
Spindle Nose............... 4MT
Spindle Travel (in)........ 7.87
Quill Feed.......... Electromagnetic Clutch
3 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0094
Spindle to Work Surface Min/Max. (in).......... 0 / 23.23
Column Head Elevation.......... Motorized
Co-ordinate Table Surface (in).......... 48 x 14.17
Work Table T-Slots (in) 5/8
Base Size (in)............... 57.1 x 29.53
Drill Capacity with Manual Feed (in) 1.38
E-Stop Switch............... Yes
Voltage.......... 230 or 460
Phase............ Three
2 Speed Motor Horsepower.......... 2
Machine Weight (lbs.) ........2,756
Machine Dimensions (WxDxH in).......... 61.8 x 57.1 x 81.9
Shipping Weight (lbs.) ........3,197
Shipping Dimensions (LxWxD in).......... 66 x 66 x 99
