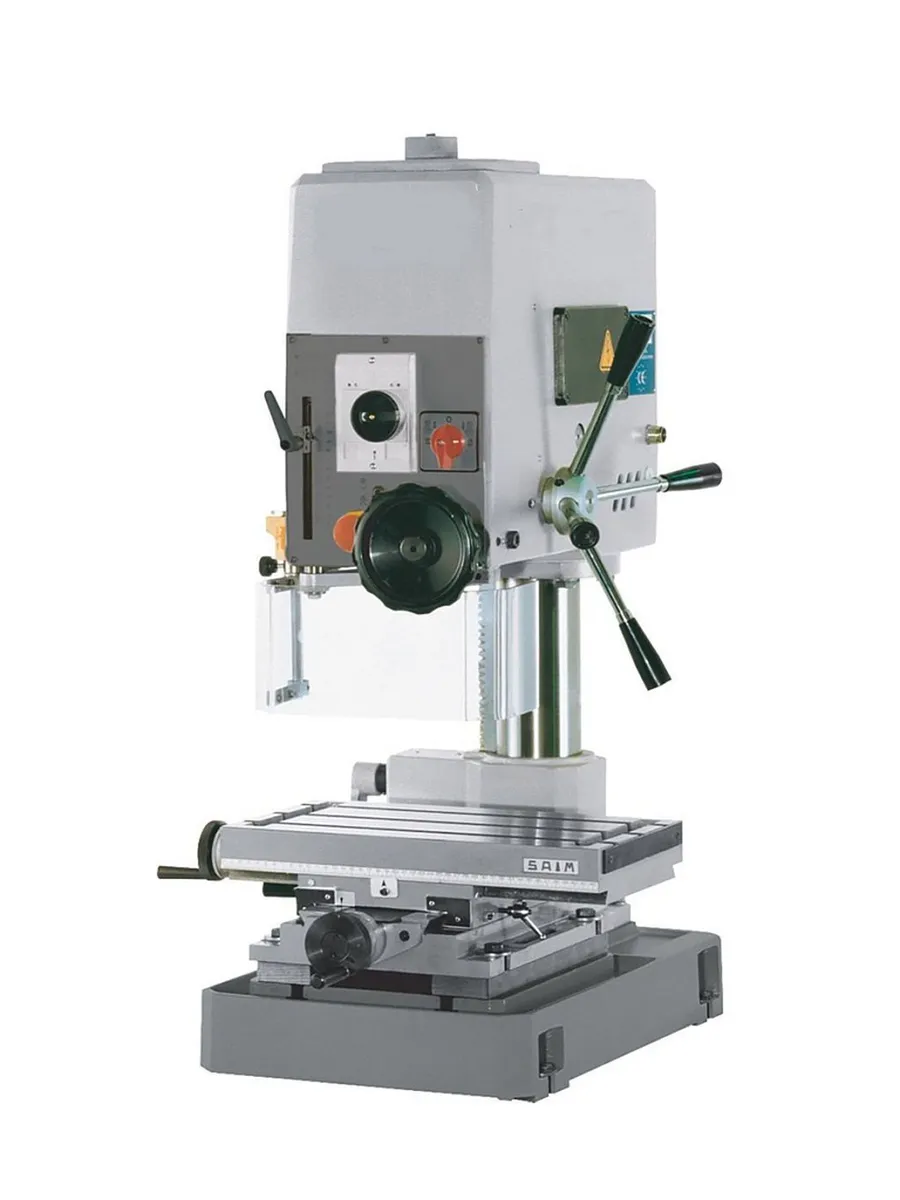

2025 Clausing KS25EV – Iberdrill 19.68” Bench Drill Press – Variable Speed Belt Drive and Base
Have one to sell?
ConditionNew
New
Clausing Iberdrill 19.68” Bench Drill Press Variable Speed Belt Drive and Base, 295 – 4800 RPM electronic inverter, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1 ½ hp spindle motor, 1” drill capacity steel, 230/460 volt
Specifications
Machine Style Bench Drill
Drive Type Electronic Inverter Belt Drive
Number of Speed Steps Infinitely
Spindle Speeds (RPM) 300 – 4800
Column to Spindle Center (in) 9.84
Spindle Nose 3MT
Spindle Travel (in) 4.72
Quill Feed Manual
Spindle to Work Surface Min/Max. (in) 4.33 / 19.7
Column Diameter (in) 3.94
Adjustable Table Surface (in) N/A
Work Table T-Slots (in) 1/2
Base Size (in) 22 x 15
Drill Capacity with Manual Feed (in) 1
E-Stop Switch Yes
Voltage 230 or 460
Phase Three
Motor Horsepower 1 1/2
Machine Weight (lbs.) 298
Machine Dimensions (WxDxH in) 20 x 32 x 47.6
Shipping Weight (lbs.) 353
Shipping Dimensions ships laying down (LxWxD in) 57 x 24 x 36
Machine Features:
Belt Drive – electronic inverter
Depth scale and adjustable depth stop
Work light
Manual spindle reversing switch
“RS” Models are equipped with automatic spindle reversing system for tapping
Thermomagnetic motor breaker switch
Low voltage electric equipment
Safety drill guard with microswitch
Automatic tool ejector
Emergency stop button
CE mark
Optional base cabinets available
