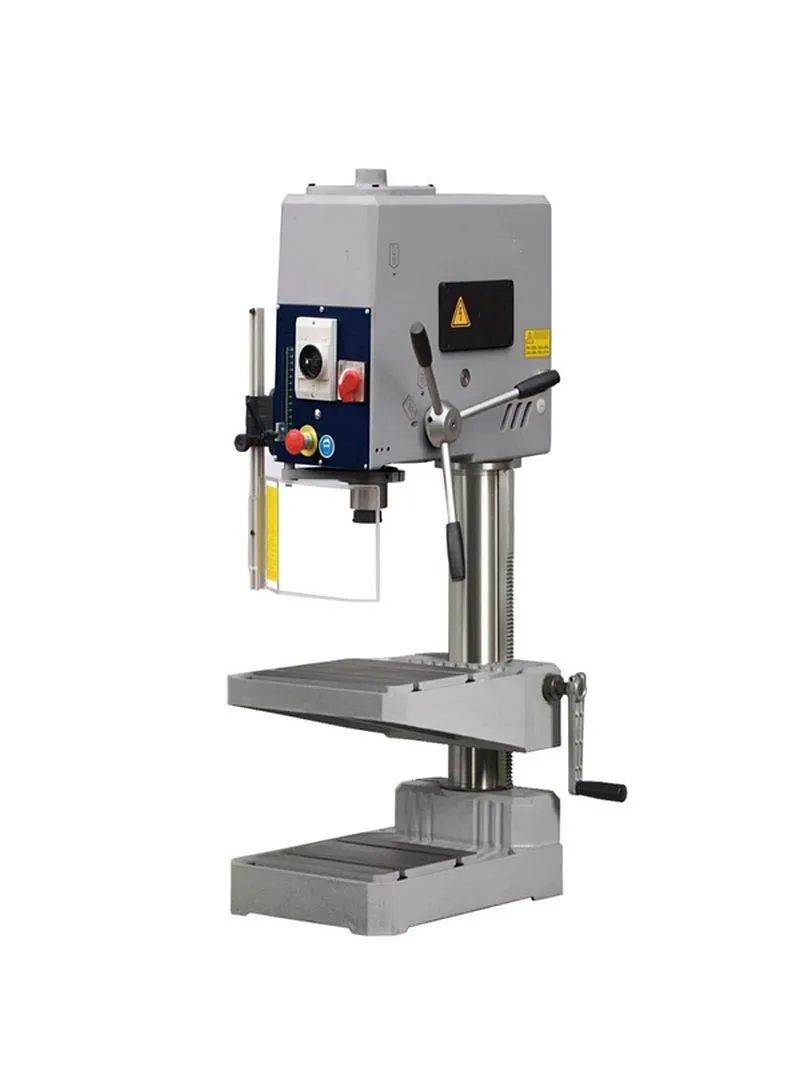

New 2025 Clausing KM25EV Iberdrill 19.68” Bench Drill Press Variable Speed Belt Drive Adjustable Work Table and Base
Have one to sell?
ConditionNew
New
Elevate your precision work with the 2025 Clausing KM25EV bench drill press. Featuring a 19.68" adjustable work table and variable speed belt drive, it boasts a 1.5 hp motor with speeds from 300 to 4800 RPM. Includes safety features and adjustable depths.
Specifications:
Machine Style.......... Bench Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Belt Drive
Number of Speed Steps.......... Infinitely
Spindle Speeds (RPM).......... 300 – 4800
Column to Spindle Center (in).......... 9.84
Spindle Nose.......... 3MT
Spindle Travel (in).......... 4.72
Quill Feed.......... Manual
Spindle to Work Surface Min/Max. (in).......... 4.33 / 19.7
Column Diameter (in).......... 3.94
Adjustable Table Surface (in).......... 10.6 x 11.8
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 22 x 15
Drill Capacity with Manual Feed (in).......... 1
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 1 1/2
Machine Weight (lbs.).......... 364
Machine Dimensions (WxDxH in).......... 20 x 32 x 47.6
Shipping Weight (lbs.).......... 419
Shipping Dimensions ships laying down (LxWxD in).......... 57 x 24 x 36
Machine Features:
• Belt Drive – electronic inverter
• Depth scale and adjustable depth stop
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Low voltage electric equipment
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
• Optional base cabinets available
Elevate your precision work with the 2025 Clausing KM25EV bench drill press. Featuring a 19.68" adjustable work table and variable speed belt drive, it boasts a 1.5 hp motor with speeds from 300 to 4800 RPM. Includes safety features and adjustable depths.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing IberDrill Belt Drive Drill Press with state-of-the-art technology, allows you to select the best rpm for the tool with easy-to-use potentiometer dial. Electronic inverter 300 – 4800 rpm for drilling large holes, small holes to spot-face, counter-bore and ream. The variable speed drive delivers torque for capacity production rated 1” in steel 1.18” in cast iron, adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Imperial
| Swing | 12.6" |
| Capacity (Mild Steel) | 1" |
| Capacity (Cast Iron) | 1.18" |
| Power | 1.5 hp |
| RPM | 4,800 RPM |
| Dimensions | 20 x 32 x 47.6 |
| Weight | 364 |
Specifications:
Machine Style.......... Bench Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Belt Drive
Number of Speed Steps.......... Infinitely
Spindle Speeds (RPM).......... 300 – 4800
Column to Spindle Center (in).......... 9.84
Spindle Nose.......... 3MT
Spindle Travel (in).......... 4.72
Quill Feed.......... Manual
Spindle to Work Surface Min/Max. (in).......... 4.33 / 19.7
Column Diameter (in).......... 3.94
Adjustable Table Surface (in).......... 10.6 x 11.8
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 22 x 15
Drill Capacity with Manual Feed (in).......... 1
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 1 1/2
Machine Weight (lbs.).......... 364
Machine Dimensions (WxDxH in).......... 20 x 32 x 47.6
Shipping Weight (lbs.).......... 419
Shipping Dimensions ships laying down (LxWxD in).......... 57 x 24 x 36
Machine Features:
• Belt Drive – electronic inverter
• Depth scale and adjustable depth stop
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Low voltage electric equipment
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
• Optional base cabinets available
