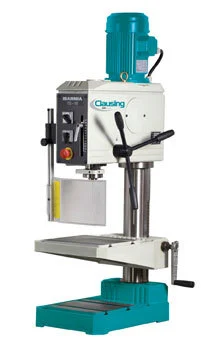

Clausing Iberdrill 19.68” Bench Drill Press Gear Head Drive Adjustable Worktable and Base, 90 – 3360 RPM 8 step gears, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1 ½ hp 2 speed spindle motor, 1” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style...........Bench Drill
Drive Type..............Geared Head
Number of Speed Steps.. 8
Spindle Speeds (RPM)... 90, 192, 300, 504, 612, 1020, 1740, 3360
Column to Spindle Center (in) 9.84
Spindle Nose........... 3MT
Spindle Travel (in).... 4.72
Quill Feed............. Manual
Spindle to Work Surface Min/Max. (in) 4.33 / 19.7
Column Diameter (in)... 3.94
Adjustable Table Surface (in) 10.6 x 11.8
Worktable T-Slots (in). 1/2
Base Size (in)......... 22 x 15
Drill Capacity with Manual Feed (in) 1
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 1 1/2
Machine Weight (lbs.).. 364
Machine Dimensions (WxDxH in)
20 x 32 x 47.6
Shipping Weight (lbs.). 419
Shipping Dimensions ships laying down (LxWxD in)
57 x 24 x 36
Clausing Iberdrill 19.68” Bench Drill Press Gear Head Drive Adjustable Worktable and Base, 90 – 3360 RPM 8 step gears, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1 ½ hp 2 speed spindle motor, 1” drill capacity steel, 230/460 volt 3 Phase voltage
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.

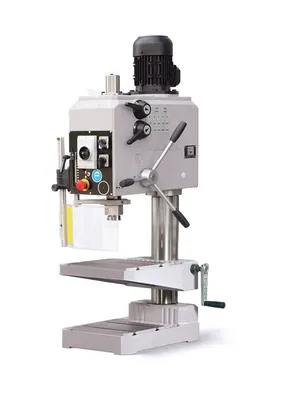

Clausing IberDrill Geared Head Drill Press with state-of-the-art technology, allows you to select the best rpm for the tool with easy-to-use shift handles. 8 speeds 90 – 3360 rpm for drilling large holes, small holes to spot-face, counter-bore and ream. 2 Speed selector switch for greater capacity production rated 1” in steel 1.18” in cast iron, adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Imperial
| Dimensions | 20 x 32 x 47.6 |
| Weight | 364 lbs. |
Machine Style...........Bench Drill
Drive Type..............Geared Head
Number of Speed Steps.. 8
Spindle Speeds (RPM)... 90, 192, 300, 504, 612, 1020, 1740, 3360
Column to Spindle Center (in) 9.84
Spindle Nose........... 3MT
Spindle Travel (in).... 4.72
Quill Feed............. Manual
Spindle to Work Surface Min/Max. (in) 4.33 / 19.7
Column Diameter (in)... 3.94
Adjustable Table Surface (in) 10.6 x 11.8
Worktable T-Slots (in). 1/2
Base Size (in)......... 22 x 15
Drill Capacity with Manual Feed (in) 1
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 1 1/2
Machine Weight (lbs.).. 364
Machine Dimensions (WxDxH in)
20 x 32 x 47.6
Shipping Weight (lbs.). 419
Shipping Dimensions ships laying down (LxWxD in)
57 x 24 x 36
