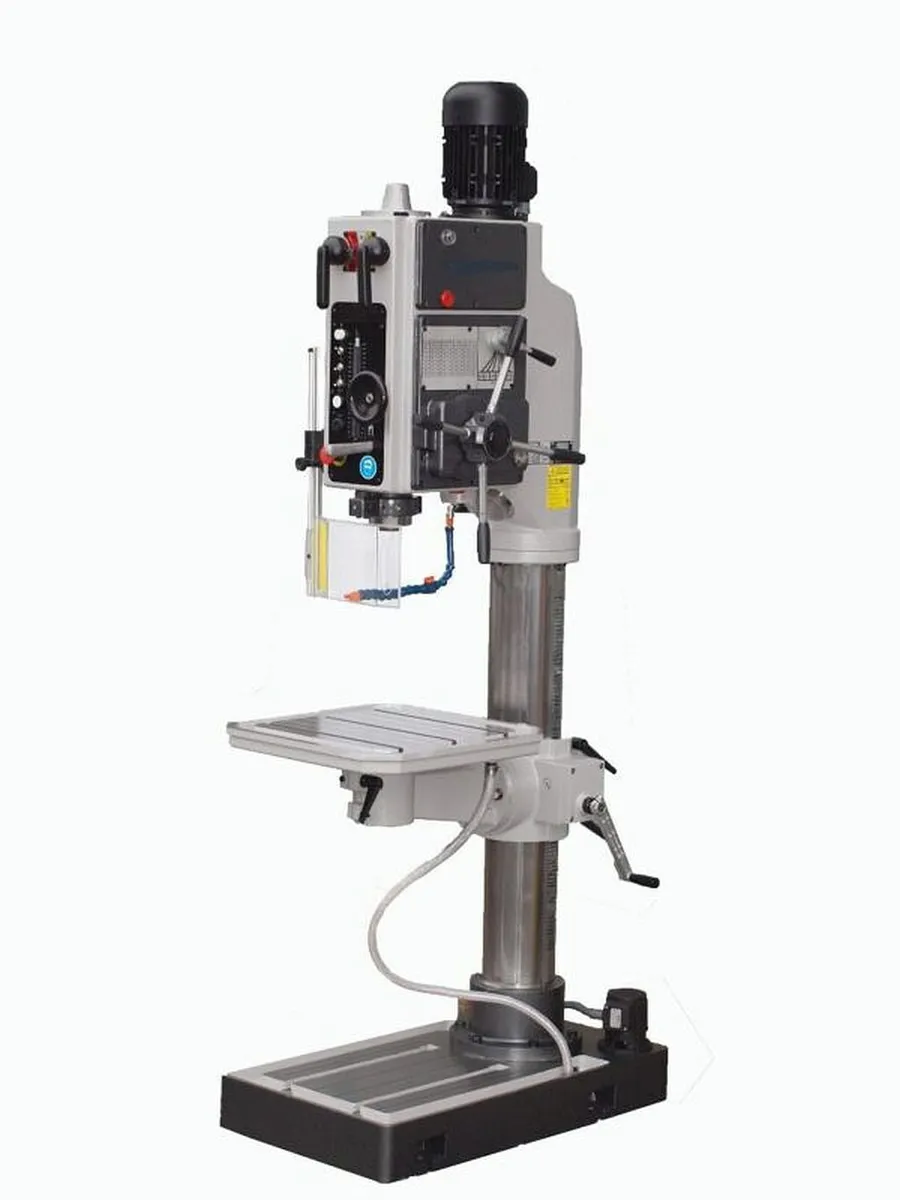

New 2025 Clausing A50 Iberdrill 29.14” Floor Drill Press Gear Head Drive, Adjustable Work Table and Base

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type............. Gear Head Drive
Number of Speed Steps.. 9
Spindle Speeds (RPM)
66 – 91 – 133 – 206 – 288 – 418 – 617 – 856 – 1255
Column to Spindle Center (in) 14.57
Spindle Nose........... 4MT
Spindle Travel (in).... 9.06
Quill Feed............. Mechanical Clutch
4 Feed Ranges (in/rev). 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in) 5.91 / 30.31
Column Diameter (in)... 7.87
Adjustable Table Surface (in) 20.5 x 24.4
Work Table T-Slots (in) 1/2
Base Size (in)......... 33.9 x 21.7
Drill Capacity with Manual Feed (in) 1.97
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 4
Machine Weight (lbs.).. 1,081
Machine Dimensions (WxDxH in)
24 x 40 x 97.4
Shipping Weight (lbs.). 1,190
Shipping Dimensions ships laying down (LxWxD in)
103 x 28 x 48

Machine Features:
• Gear head drive with shift levers on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 4 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Mechanical clutch quill feed system
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
