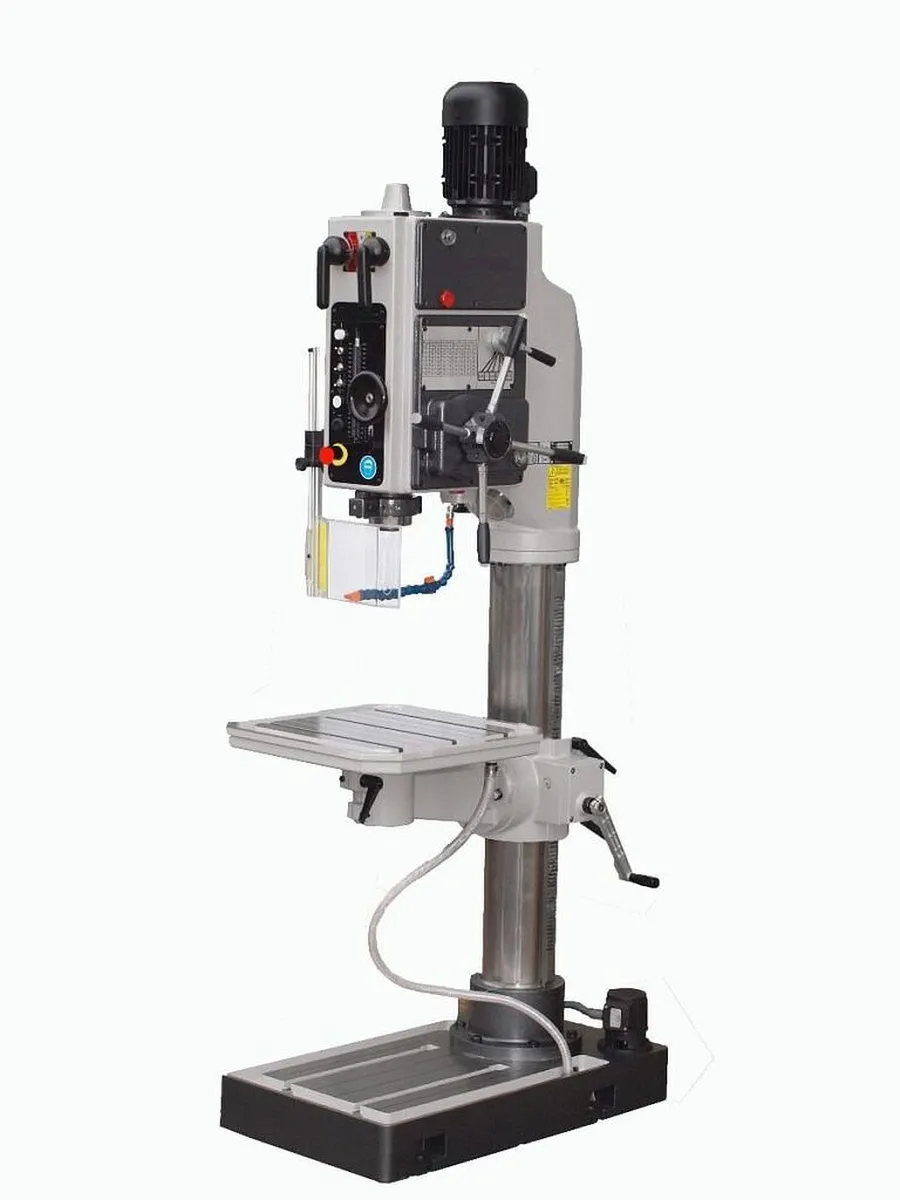

Clausing Iberdrill 33” Floor Drill Press Gear Head Drive, Adjustable Rotating Worktable, 76 – 1446 RPM by 12 speed gear box, 3.54” diameter quill, 5MT taper spindle, Electromagnetic clutch quill feed, 5.5 hp spindle motor, 2.36” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 12
Spindle Speeds (RPM).......... 76 – 96 – 127 – 165 – 238
– 296 – 392 – 513 – 670 – 838 – 1107 – 1446
Column to Spindle Center (in).......... 16.5
Spindle Nose.......... 5MT
Spindle Travel (in).......... 10.24
Quill Feed.......... Electromagnetic Clutch
6 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118, 0.0157, 0.0197, 0.0236
Spindle to Work Surface Min/Max. (in).......... 3.15 / 25.98
Column Diameter (in).......... 8.66
Adjustable Table Surface (in).......... 23.6 x 27.6
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 35.8 x 23.2
Drill Capacity with Manual Feed (in).......... 2.36
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,808
Machine Dimensions (WxDxH in).......... 24 x 40 x 103.9
Shipping Weight (lbs.).......... 2,025
Shipping Dimensions ships laying down (LxWxD in).......... 106.3 x 28 x 48
Clausing Iberdrill 33” Floor Drill Press Gear Head Drive, Adjustable Rotating Worktable, 76 – 1446 RPM by 12 speed gear box, 3.54” diameter quill, 5MT taper spindle, Electromagnetic clutch quill feed, 5.5 hp spindle motor, 2.36” drill capacity steel, 230/460 volt 3 Phase voltage
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing IberDrill Gear Head Drive Drill Press with state-of-the-art technology, allows you to select the best rpm for the tool with step speed shift levers. 12 speeds 76 – 1446 rpm combined with 5.5 Hp spindle motor give excellent torque for drilling large holes, small holes to spot-face, counter-bore and ream. Electromagnetic clutch quill feed, with capacity production rated 2.36” in steel 2.75” in cast iron, adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse.
Imperial
| Swing | 33" |
| Capacity (Mild Steel) | 2.36" |
| Power | 5.5 hp |
| RPM | 1,446 RPM |
| Dimensions | 24 x 40 x 103.9 |
| Weight | 1,808 lbs. |
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 12
Spindle Speeds (RPM).......... 76 – 96 – 127 – 165 – 238
– 296 – 392 – 513 – 670 – 838 – 1107 – 1446
Column to Spindle Center (in).......... 16.5
Spindle Nose.......... 5MT
Spindle Travel (in).......... 10.24
Quill Feed.......... Electromagnetic Clutch
6 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118, 0.0157, 0.0197, 0.0236
Spindle to Work Surface Min/Max. (in).......... 3.15 / 25.98
Column Diameter (in).......... 8.66
Adjustable Table Surface (in).......... 23.6 x 27.6
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 35.8 x 23.2
Drill Capacity with Manual Feed (in).......... 2.36
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,808
Machine Dimensions (WxDxH in).......... 24 x 40 x 103.9
Shipping Weight (lbs.).......... 2,025
Shipping Dimensions ships laying down (LxWxD in).......... 106.3 x 28 x 48
