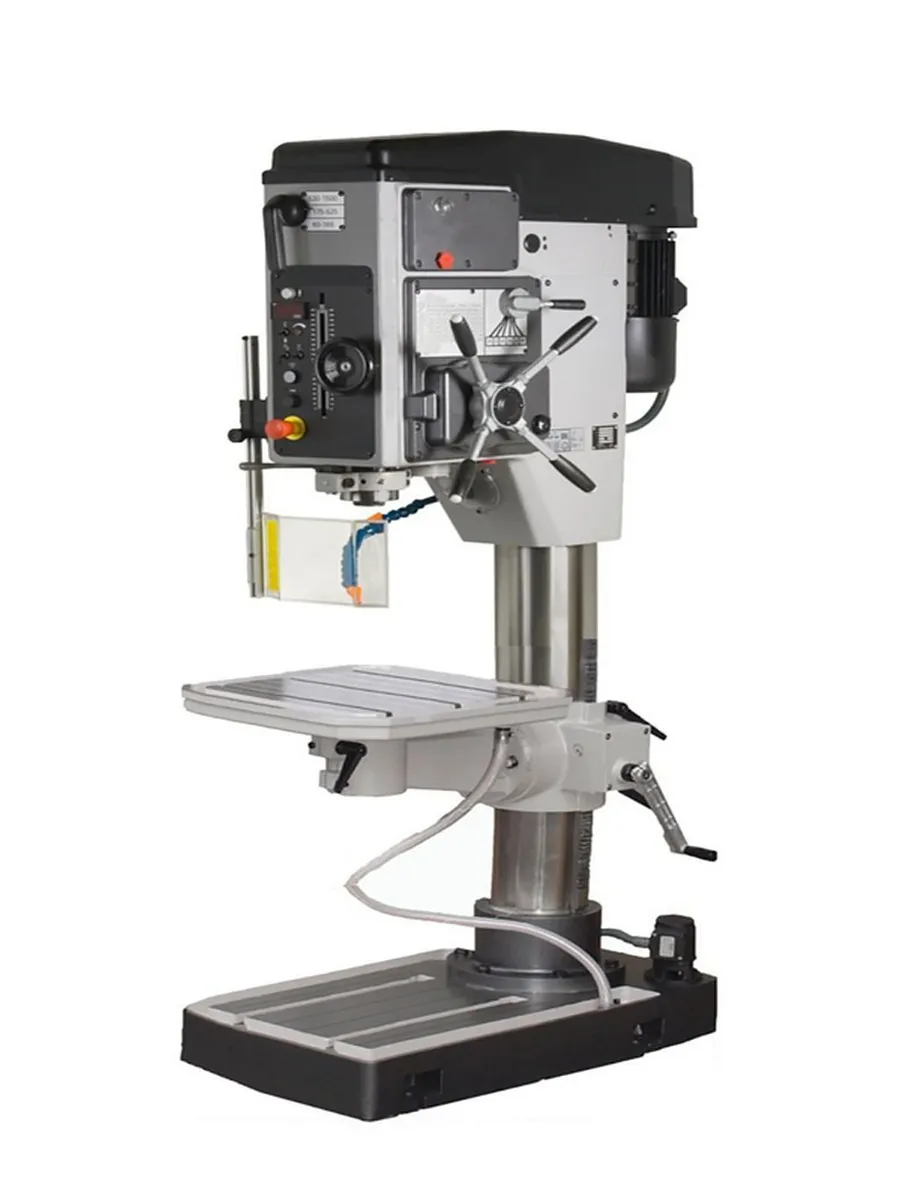

New 2025 Clausing Ibarmia BC40V Iberdrill 28.34” Floor Drill Press "In Stock Now"
Have one to sell?
ConditionNew
New
Clausing Ibarmia BC40V Iberdrill 28.34” Floor Drill Press Belt Drive 3 Speed Gear Head Drive, Adjustable Rotating Work Table, 72 – 1800 RPM by mechanical variable speed, 3.46” diameter quill, 4MT taper spindle, Electromagnetic clutch quill feed, 4 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type............. Belt Head Drive Mechanical Variable Speed
Number of Speed Steps.. 3
Spindle Speeds Range 1 (RPM) 72 – 240
Spindle Speeds Range 2 (RPM) 240 – 720
Spindle Speeds Range 3 (RPM) 720 – 1800
Column to Spindle Center (in) 14.17
Spindle Nose........... 4MT
Spindle Travel (in).... 7.87
Quill Feed............. Electromagnetic Clutch
4 Feed Ranges (in/rev) 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in) 1.97 / 27.16
Column Diameter (in)... 6.89
Adjustable Table Surface (in) 21.65 x 21.65
Work Table T-Slots (in) 1/2
Base Size (in)......... 31.9 x 26.3
Drill Capacity with Manual Feed (in) 1.57
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 4
Machine Weight (lbs.).. 1,455
Machine Dimensions (WxDxH in)
26 x 40 x 81.9
Shipping Weight (lbs.). 1,653
Shipping Dimensions ships laying down (LxWxD in)
91 x 28 x 42
Machine Features:
• Mechanical variable speed belt drive
• 3 Speed Gear head with shift lever on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 4 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Electromagnetic clutch quill feed system
• Adjustable work table, rotating and tilting
• Work light
• Manual fine feed control handwheel
• Automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
Clausing Ibarmia BC40V Iberdrill 28.34” Floor Drill Press Belt Drive 3 Speed Gear Head Drive, Adjustable Rotating Work Table, 72 – 1800 RPM by mechanical variable speed, 3.46” diameter quill, 4MT taper spindle, Electromagnetic clutch quill feed, 4 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing IberDrill Belt Drive with 3 Speed Geared Head Drill Press with state-of-the-art technology, allows you to select the best rpm for the tool with step speed shift levers. Mechanical variable speed and 3 gear ranges allow for 72 – 1800 rpm. Combined with 4 Hp spindle motor give excellent torque for drilling large holes, small holes to spot-face, counter-bore and ream. Electromagnetic clutch quill feed, with capacity production rated 1.57” in steel 1.97” in cast iron, automatic tapping feature by setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Imperial
| Swing | 28.34" |
| Capacity (Mild Steel) | 1.57" |
| Capacity (Cast Iron) | 1.97" |
| Power | 4 hp |
| RPM | 1,800 RPM |
| Dimensions | 26 x 40 x 81.9 |
| Weight | 1,455 lbs. |
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type............. Belt Head Drive Mechanical Variable Speed
Number of Speed Steps.. 3
Spindle Speeds Range 1 (RPM) 72 – 240
Spindle Speeds Range 2 (RPM) 240 – 720
Spindle Speeds Range 3 (RPM) 720 – 1800
Column to Spindle Center (in) 14.17
Spindle Nose........... 4MT
Spindle Travel (in).... 7.87
Quill Feed............. Electromagnetic Clutch
4 Feed Ranges (in/rev) 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in) 1.97 / 27.16
Column Diameter (in)... 6.89
Adjustable Table Surface (in) 21.65 x 21.65
Work Table T-Slots (in) 1/2
Base Size (in)......... 31.9 x 26.3
Drill Capacity with Manual Feed (in) 1.57
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 4
Machine Weight (lbs.).. 1,455
Machine Dimensions (WxDxH in)
26 x 40 x 81.9
Shipping Weight (lbs.). 1,653
Shipping Dimensions ships laying down (LxWxD in)
91 x 28 x 42
Machine Features:
• Mechanical variable speed belt drive
• 3 Speed Gear head with shift lever on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 4 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Electromagnetic clutch quill feed system
• Adjustable work table, rotating and tilting
• Work light
• Manual fine feed control handwheel
• Automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
