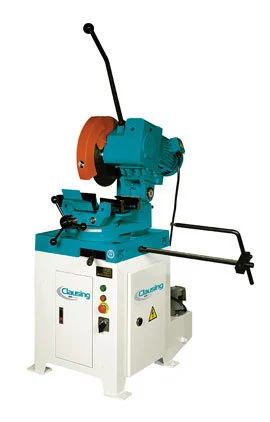

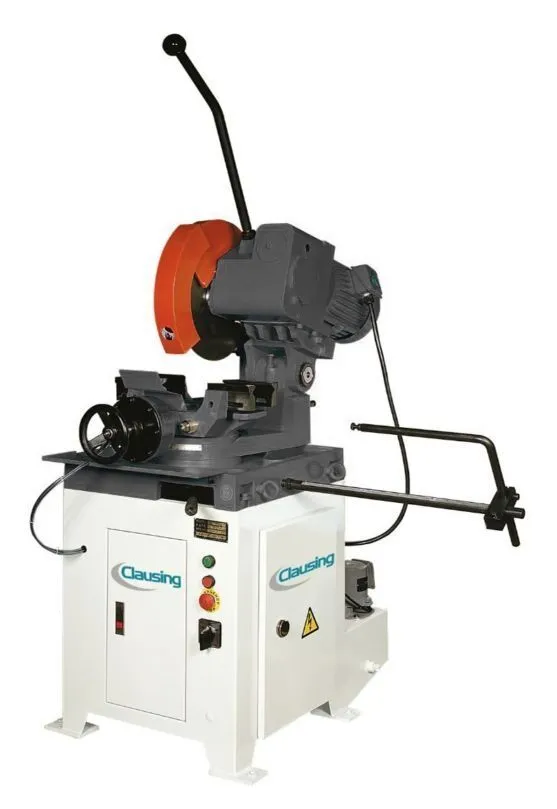

Clausing Kalamazoo FHC350D Circular Cold Saw

Specifications:

Machine Style..........Manual
Drive Type..........Gear Box w/ Worm Gear
Maximum Capacity Round Tube 90 (in)..........4.3
Maximum Capacity Round Tube 45 (in)..........2.95
Maximum Capacity Square Tube 90 (in)..........4.3 x 4.3
Maximum Capacity Square Tube 45 (in)..........3.5 x 3.5
Round Solid 90 (inch)..........2.36
Round Solid 45 (inch)..........1.96
Square Solid 90 (inch)..........1.96 x 1.96
Square Solid 45 (inch)..........1.77 x 1.77
Cutting Angles (left and right)..........45
Voltage..........230 or 460
Phase..........3
Coolant System..........Yes
Blade Width (inch)..........(.118)
Blade Length Size Diameter (inch)..........14
Blade Speeds (RPM)..........26 and 52
Maximum Vise Opening (inch)..........6
2 Speed Motor Horsepower..........3 and 4
Machine Size (LxWxH inch)..........25 x 30 x 60
Machine Weight (lbs.)..........660

Machine Features:
• Totally enclosed fan-cooled motor
• Enclosed worm gear drive for trouble-free operation
• Two motor speeds for versatility
• Self-Centering vise with angle scale
• Manual power vise for fast secure part clamping
• Head rotates 45 Degrees left and right of center
• Flood coolant system
• Heavy duty sheet metal base
• Adjustable stock stop
• One general purpose HSS 14” circular saw blade
• Two Year Limited Warranty
