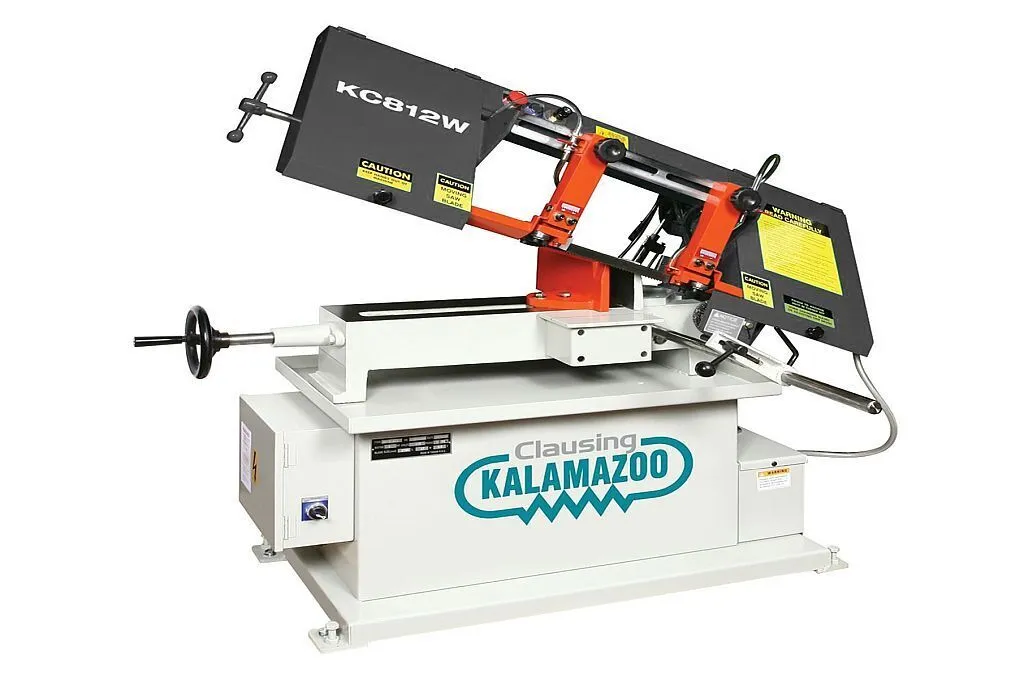

2025 - KC812W – Clausing Kalamazoo Manual Horizontal Bandsaw 7.0” x 14.0” Max Rectangular Capacity

Machine Style Manual
Drive Type Step Pulley Drive
Style Horizontal Wet Cut
Band Wheel Diameter 11 ½” flanged, cast iron
Blade (W x T x L) 1” x .035” x 107”
Bed Height 24.8”
Blade Speeds – (4) 59, 96, 155, 260 fpm
90° Cutting Capacity
Round 8”
Square 7”
Rectangular (H x W) 7” x 14”
45° Cutting Capacity
Round 7 ½”
Square 6”
Rectangular (H x W) 6” x 9”
Width 59”
Depth 24.6”
Height (head-up) 63”
Height (head-down) 45”
Net Weight 515 lbs.
Shipping Weight 640 lbs.
Shipping Dimensions 58” x 30” x 48”
Machine Features:
1 hp drive motor, heavy-duty reducer, & variable step drive assembly
4-speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
Heavy-duty hydraulic cylinder with precision ground hinge support
Pan shaped base with built-in coolant and hydraulic system
Carbide blade guides with roller bearings
Two additional bearings to support blade from the top
Integral coolant system
Blade brush
Down feed rate and cutting pressure control via hydraulic down feed valve
Simplified control switches mounted on saw head
Cast iron 0-45 quick set up vise
Secure clamping via dependable manual lead screw system
Anti-slip hand wheel
Easy blade change with front access at waist level
Bi-metal saw blade
Operation & parts manual
Two (2) year limited warranty
