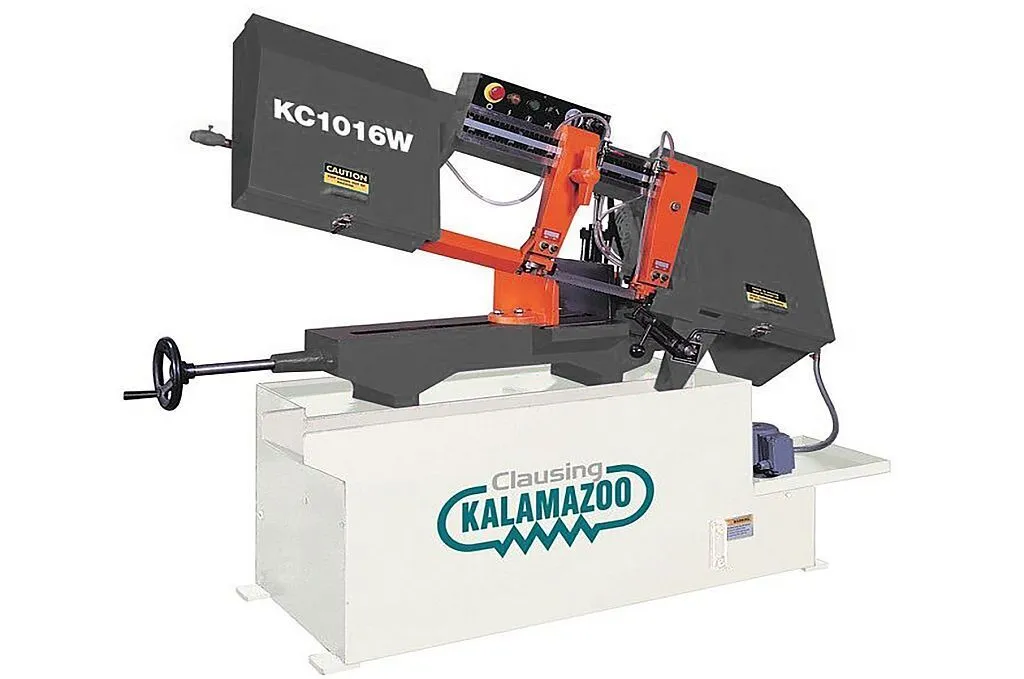

2025 CLAUSING KALAMAZOO KC1016W

Machine Style Manual
Drive Type Step Pulley Drive
Style Horizontal Wet Cut
KC1016W1 – Motor, 4 Speed Drive 1 1/2 Hp 110v or 220v 1ph
KC1016W – Motor, 4 Speed Drive 2 Hp 230v or 460v 3ph
Band Wheel Diameter 15” flanged, cast iron
Blade 1” x .035” x 11’
Bed Height 25”
Blade Speeds – 4 Speed 75, 121, 190, 305 fpm
90° Cutting Capacity
Round 10”
Rectangular 9” x 14.5”
45° Cutting Capacity
Round 9”
Rectangular 9” x 9”
Length 66”
Depth 28”
Height (head-up) 69”
Height (head-down) 41”
Net Weight 720 lbs.
Shipping Weight 885 lbs.
Shipping Dimensions (L x W x H) 68” x 30” x 45”
Machine Features:
1 ½ – 2 hp drive motors with magnetic starter and overload protection
Magnetic starter with overload protection
4 speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
Totally enclosed transmission
Heavy-duty hydraulic cylinder with precision ground hinge support
Pan shaped base with built-in coolant and hydraulic system
Cast iron bed
Cast iron quick acting 0º – 45º vise with manual leadscrew clamping system
Two additional bearing to support blade from the top
Recirculating coolant system with application through both guides
Blade brush
Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material
Adjustable stock stop
Simplified control switches mounted on saw head
Anti-slip hand wheel
Easy blade change with front access at waist level
1” wide blade
Tools
Operation and parts manual
Two Year Limited Warranty
