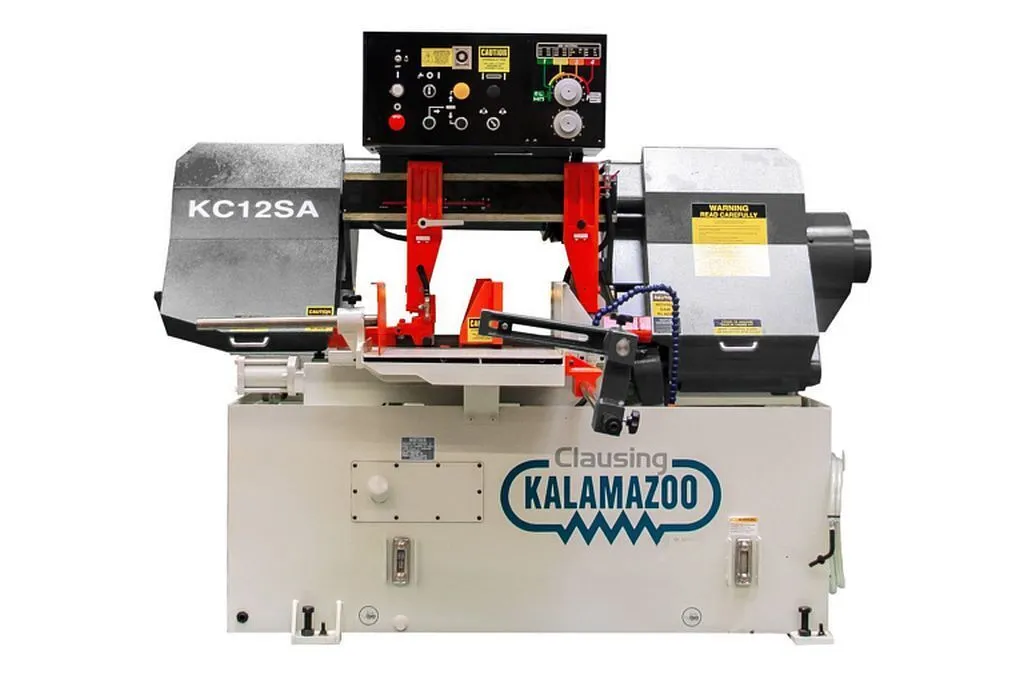

2025 – KC12SA – Clausing Kalamazoo Semi-Automatic Horizontal Bandsaw 12.75” x 12.6” Max Rectangular Capacity

Machine Style Semi-Automatic
Drive Type Infinitely Variable
*Motor 5 Hp, *230/460v 3 ph
Hydraulic Pump Motor 1 Hp
Hydraulic Oil Capacity 6.5 gallons
Band Wheel Dia. 16”
Blade Speeds 85-445 fpm Variable speed
Blade Size 1.25” x .042” x 150.4”
Coolant Recirculating
Coolant Capacity 10 gallons
90° Cutting Capacity
Round 12.75”
Rectangular 12.75” x 12.6”
7.9” x 14.2”
Bundle Cutting Width (Optional) 6.5” x 10”
Bundle Cutting Height (Optional) 2” to 8”
Length 47”
Width 75”
Height Down 61”
Height (head-up) 73”
Bed Height 29.5” (without pads)
Net Weight 2,039 lbs.
Shipping Weight 2,260 lbs.

Machine Features:

Semi-automatic operation
Infinitely variable blade speeds
LED blade speed readout
Vise clamps work piece both sides of blade
Powered hydraulic down feed
Automatic height setting feature
Auto shutoff at end of cut
Blade breakage/stoppage switch
Hydraulic Blade Tension System
110v. control circuit
Overload protection
5 hp 230/460v. 3 ph. Drive Motor
Recirculating Coolant System
(1) General Purpose Bi-Metal Blade
Stock Stop Assembly
1 Gallon Coolant
Tool Kit
Operator’s Manual and Flushing Hose for cleanup
2 Year Limited Warranty
