New 2025 Clausing Kalamazoo KC10AX Automatic Horizontal Bandsaw 10” x 11” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Discover the 2025 Clausing Kalamazoo KC10AX automatic horizontal bandsaw. This new 3 HP machine offers a 10” x 11” rectangular cutting capacity with features like variable blade speeds, hydraulic down feed, and a recirculating coolant system.
Specifications:
Machine Style..........Automatic
Drive Type..........Infinitely Variable
*Motor..........3 Hp *230/460 3phase
Hydraulic Pump Motor..........1 Hp
Hydraulic Oil Capacity..........10.5 gallons
Band Wheel Dia...........15.75”
Blade Speeds..........66-328 fpm Variable speed
Blade Size..........1-1/4” x .043” x 138”
Coolant..........Recirculating
Coolant Capacity..........16.8 gallons
90° Cutting Capacity:
Round..........10”
Rectangular..........10” x 11”
Feed Accuracy..........(+\- .004” to .008”)
Length or Remnant Material (manual)..........(.59”)
Length of Remnant Material (automatic)..........1.97”
Minimum Cut Thickness..........(.354”)
Bundle Cutting Width (Optional)..........6.1” x 7.87”
Bundle Cutting Height (Optional)..........1.97” to 4.72”
Feed Length/Index..........15.75”
Max. Feed (9 times)..........141.75”
Machine Features:
• Full or semi-automatic operation
• Infinitely variable blade speeds
• LED blade speed readout
• Vise clamps work piece both sides of blade
• Hydraulic down feed
• Automatic height setting feature
• Auto shutoff at end of material or after preset number of cuts
• Front-mounted digital length gauge
• Blade breakage/stoppage switch
• 110v. control circuit
• Overload protection
• Recirculating Coolant System
• Shuttle Vise
• Hydraulic Blade Tension System
• General Purpose Bi-metal Blade
• Flushing Hose for Cleanup
• Tool Kit
• Operator’s Manual
• 2 Year Limited Warranty
Discover the 2025 Clausing Kalamazoo KC10AX automatic horizontal bandsaw. This new 3 HP machine offers a 10” x 11” rectangular cutting capacity with features like variable blade speeds, hydraulic down feed, and a recirculating coolant system.
T.R. Wigglesworth Machinery Company has represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.

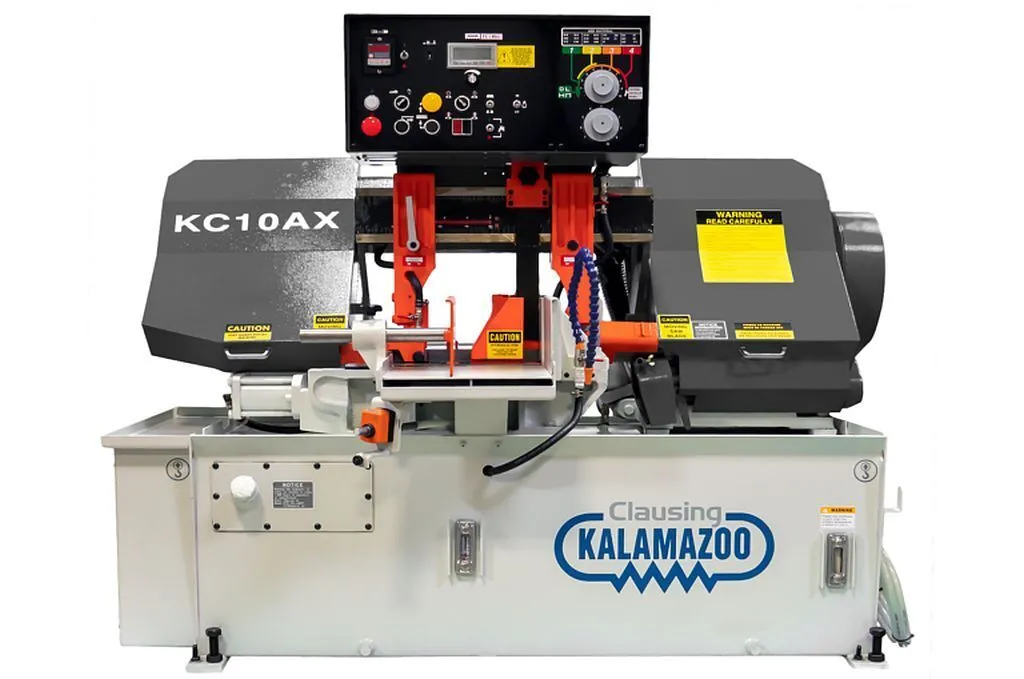

Clausing Kalamazoo Automatic Horizontal Bandsaw
This Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in both semi-automatic and fully automatic operation.
A powerful drive motor provides the power, and the optional hydraulic bundling attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 10" |
| Rect-Cap (W) | 11" |
| Rounds-Cap | 10" |
| Power | 3 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1.25" |
| Blade Thickness | 0.043" |
| Blade Length | 138" |
Specifications:
Machine Style..........Automatic
Drive Type..........Infinitely Variable
*Motor..........3 Hp *230/460 3phase
Hydraulic Pump Motor..........1 Hp
Hydraulic Oil Capacity..........10.5 gallons
Band Wheel Dia...........15.75”
Blade Speeds..........66-328 fpm Variable speed
Blade Size..........1-1/4” x .043” x 138”
Coolant..........Recirculating
Coolant Capacity..........16.8 gallons
90° Cutting Capacity:
Round..........10”
Rectangular..........10” x 11”
Feed Accuracy..........(+\- .004” to .008”)
Length or Remnant Material (manual)..........(.59”)
Length of Remnant Material (automatic)..........1.97”
Minimum Cut Thickness..........(.354”)
Bundle Cutting Width (Optional)..........6.1” x 7.87”
Bundle Cutting Height (Optional)..........1.97” to 4.72”
Feed Length/Index..........15.75”
Max. Feed (9 times)..........141.75”
Machine Features:
• Full or semi-automatic operation
• Infinitely variable blade speeds
• LED blade speed readout
• Vise clamps work piece both sides of blade
• Hydraulic down feed
• Automatic height setting feature
• Auto shutoff at end of material or after preset number of cuts
• Front-mounted digital length gauge
• Blade breakage/stoppage switch
• 110v. control circuit
• Overload protection
• Recirculating Coolant System
• Shuttle Vise
• Hydraulic Blade Tension System
• General Purpose Bi-metal Blade
• Flushing Hose for Cleanup
• Tool Kit
• Operator’s Manual
• 2 Year Limited Warranty
