New 2025 Clausing Kalamazoo V2812H Vertical Bandsaw
Have one to sell?
ConditionNew
New

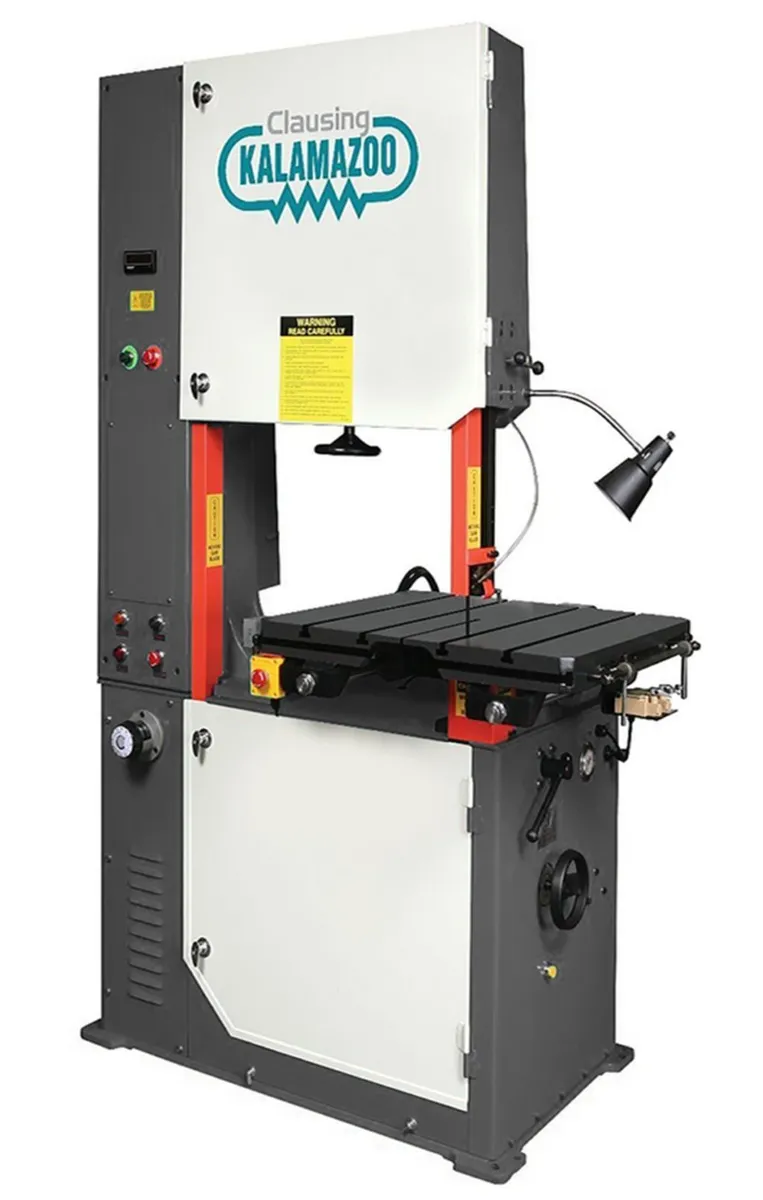

Discover precision with the new Clausing Kalamazoo V2812H Vertical Bandsaw. Featuring a 28" throat, 12.75" work height, and 3 hp motor, this bandsaw combines a hydraulic cast iron table, Chevron blade guides, and dual range transmission for efficient operations.
Specifications:
Machine Style..........Vertical Manual
Drive Type..........Motor to Gearbox
Maximum Capacity Throat Width (inch)..........28
Maximum Capacity Height (inch)..........12.75”
Work Table Size (inch)..........26-3/4 x 29
Voltage..........230 or 460
Phase..........3
Coolant System..........Chip Blower
Blade Width (inch)..........1/8” – 1”
Blade Length (inch)..........161.4
Blade Speeds (SFPM)..........50-5200
Blade Guide Type..........Chevron
Motor Horsepower..........3
Machine Size (inch)..........51 x 44 x 81
Machine Weight (lbs.)..........1500
Machine Features:
• Magnetic starter with 110V control circuit and overload protection
• Dual range transmission
• 3 Hp Drive motor
• 26-3/4” x 29” hydraulic moving heavy duty cast iron table with 2 way tilt 15 degrees left/ 15 degrees right. 4 T-slots on top surface and 13” -travel. E-stop on table.
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8” , ½” , 5/8”, ¾” and 1” Back-up rollers in blade guide brackets
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip Fence
• Locking band wheel doors
• 2 year limited warranty
Discover precision with the new Clausing Kalamazoo V2812H Vertical Bandsaw. Featuring a 28" throat, 12.75" work height, and 3 hp motor, this bandsaw combines a hydraulic cast iron table, Chevron blade guides, and dual range transmission for efficient operations.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
The Vertical Saw comes with a heavy duty cast iron table with two way tilt (15°L & 15°R), solid table surface. 13” hydraulic feeding work table for easy cutting operations. Optional Welder and grinder to increase production time.
The dual range transmission driven by 3 Hp motor, provides high torque and speed control. CE approved design.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine. 230 or 460 voltage, other voltages will need a transformer.
Imperial
| Throat | 28" |
| Work Height | 12.75" |
| Power | 3 hp |
| Blade Width | 1" |
| Blade Length | 161.4" |
| FPM | 5200 |
| Dimensions | 51" x 44" x 81" |
| Weight | 1,500Lbs |
Specifications:
Machine Style..........Vertical Manual
Drive Type..........Motor to Gearbox
Maximum Capacity Throat Width (inch)..........28
Maximum Capacity Height (inch)..........12.75”
Work Table Size (inch)..........26-3/4 x 29
Voltage..........230 or 460
Phase..........3
Coolant System..........Chip Blower
Blade Width (inch)..........1/8” – 1”
Blade Length (inch)..........161.4
Blade Speeds (SFPM)..........50-5200
Blade Guide Type..........Chevron
Motor Horsepower..........3
Machine Size (inch)..........51 x 44 x 81
Machine Weight (lbs.)..........1500
Machine Features:
• Magnetic starter with 110V control circuit and overload protection
• Dual range transmission
• 3 Hp Drive motor
• 26-3/4” x 29” hydraulic moving heavy duty cast iron table with 2 way tilt 15 degrees left/ 15 degrees right. 4 T-slots on top surface and 13” -travel. E-stop on table.
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8” , ½” , 5/8”, ¾” and 1” Back-up rollers in blade guide brackets
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip Fence
• Locking band wheel doors
• 2 year limited warranty
