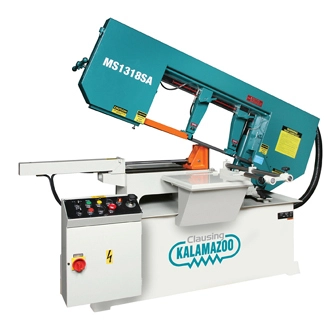

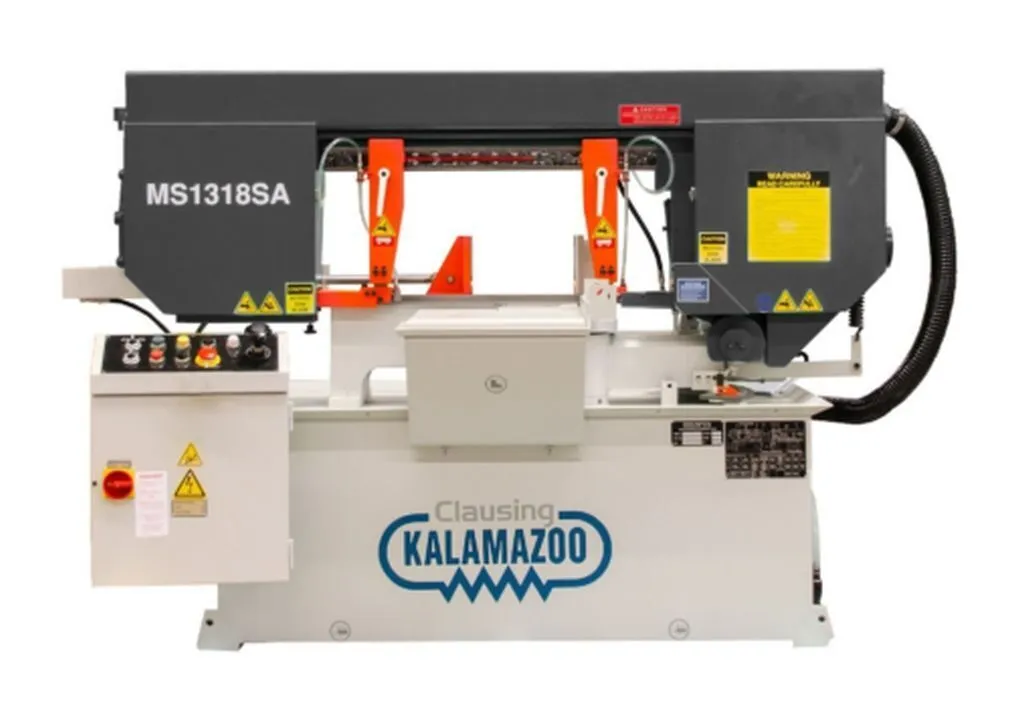

New Clausing Kalamazoo MS1318SA Horizontal Miter Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
18 available
New
Discover precision with the new Clausing Kalamazoo MS1318SA Horizontal Miter Bandsaw. Offering a 3hp drive motor, 13" round capacity, and variable blade speeds, it's ideal for efficient, accurate cuts. Features include a swivel head for 0-60º cuts and a coolant system.
Specifications:
• Machine Style..........Semi-Automatic
• Drive Type..........Variable Speed Pulley/Inverter
• Maximum Capacity Round (inch)..........13
• Maximum Capacity Rectangle (inch)..........11 x 17.3
• Voltage..........230/460
• Phase..........3
• Coolant System..........Yes
• Angular Cuts at 45 Degrees Round (inch)..........11.8 x 11.8
• Blade Size..........1” x .035” x 163”
• Blade Speeds (SFPM)..........98 – 328
• Blade Guide Type..........Carbide
• Motor Horsepower..........3
Machine Features:
• 3 Hp drive motor with magnetic starter & overload protection
• Advanced hydraulic system provides dependable power for clamping and head rise
• Swivel saw head allows the operator to accurately pivot head for angle cuts from 0º to 60º Swing the head to desired angle with out having to move the cutting material (stock can stay at 90 degrees to saw bed)
• Full stroke machine vise for secure clamping of various size materials
• Operators panel pivots allowing the operator to position the control next to them
• Carbide blade guides provide excellent stability for the saw blade
• Variable blade speed by inverter
• Powered chip brush removes chips from the blade extending blade life
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 2 Year limited warranty
Discover precision with the new Clausing Kalamazoo MS1318SA Horizontal Miter Bandsaw. Offering a 3hp drive motor, 13" round capacity, and variable blade speeds, it's ideal for efficient, accurate cuts. Features include a swivel head for 0-60º cuts and a coolant system.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours.
Semi-Automatic Saws can allow for power vise clamping, head rise and lower. The saw head will lower to make the cut and the blade will shut off after the cut is made.
Inverter drive speed will adjust the speed of the pulleys with a button or knob. As you adjust the frequency in the inverter this changes the drive motor RPM.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 17.3" |
| Rect-Cap (W) | 11" |
| Rounds-Cap | 13" |
| Square-Cap | 11.8" |
| Power | 3 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 1" |
| Blade Thickness | 0.035" |
| Blade Length | 163" |
| Dimensions | 75″ × 34″ × 55.5″ |
| Weight | 1,850Lbs. |
Specifications:
• Machine Style..........Semi-Automatic
• Drive Type..........Variable Speed Pulley/Inverter
• Maximum Capacity Round (inch)..........13
• Maximum Capacity Rectangle (inch)..........11 x 17.3
• Voltage..........230/460
• Phase..........3
• Coolant System..........Yes
• Angular Cuts at 45 Degrees Round (inch)..........11.8 x 11.8
• Blade Size..........1” x .035” x 163”
• Blade Speeds (SFPM)..........98 – 328
• Blade Guide Type..........Carbide
• Motor Horsepower..........3
Machine Features:
• 3 Hp drive motor with magnetic starter & overload protection
• Advanced hydraulic system provides dependable power for clamping and head rise
• Swivel saw head allows the operator to accurately pivot head for angle cuts from 0º to 60º Swing the head to desired angle with out having to move the cutting material (stock can stay at 90 degrees to saw bed)
• Full stroke machine vise for secure clamping of various size materials
• Operators panel pivots allowing the operator to position the control next to them
• Carbide blade guides provide excellent stability for the saw blade
• Variable blade speed by inverter
• Powered chip brush removes chips from the blade extending blade life
• Integrated coolant system
• Cast iron moveable guide arms provide rigidity for an accurate cut
• Flushing hose
• Adjustable work stop
• 2 Year limited warranty
