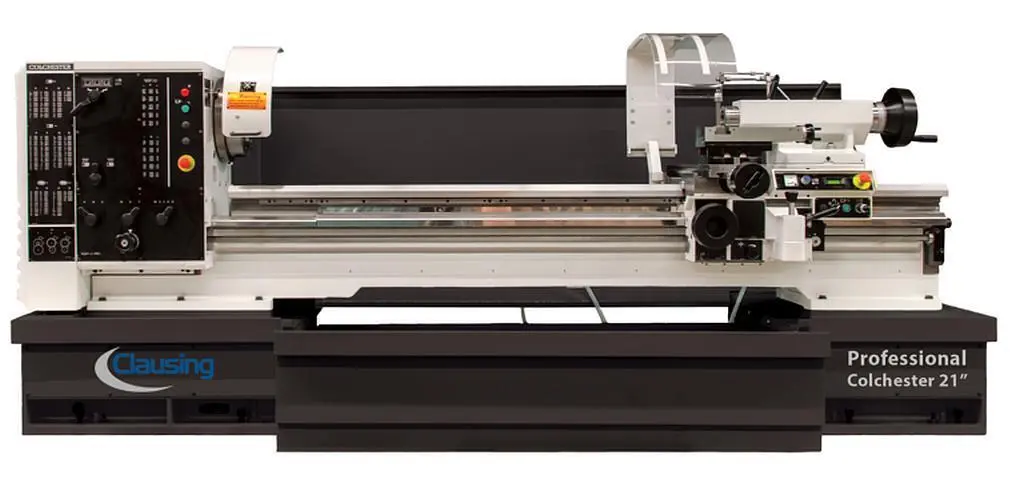

New 2025 21" x 40" Clausing Colchester Model 8114VSJ Precision Variable Speed Gap Bed Engine Lathe In stock now!
Have one to sell?
ConditionNew
1 available
New
Discover precision with the new Clausing Colchester 21VS engine lathe. Featuring a 21" swing, 4.09" spindle bore, and 15 hp power, it effectively handles demanding tasks. Experience variable speeds up to 1800 RPM for unmatched performance and versatility.
Clausing/Colchester “The Professional” 21” VS Specifications
Capacity
Height of center: 11.02”
Swing over bed: 21.81”
Swing in gap: 32.68”
Width in front of faceplate: 8.5”
Swing over cross slide: 14.57”
Bedway width: 15.75”
Headstock
Spindle bore: 4.09”
Spindle nose (camlock): D1-11
Spindle nose taper: 5MT
Number of spindle speeds: 3 infinitely variable
Spindle speed range (rpm): 18–1800
• Low range: 18–200 rpm
• Mid range: 55–605 rpm
• High range: 160–1800 rpm
Cross/Top Slide
Travel of cross slide: 11.81”
Width of cross slide: 8”
Travel of top slide: 7.5”
Width of top slide: 4”
Tailstock
Quill travel: 5.7”
Quill diameter: 3.74”
Quill taper: 6MT
Feeds & Threading
Longitudinal feed range: 0.0016–0.11 in/rev
Cross feed range: 0.0008–0.055 in/rev
Number of inch pitches: 73
Range of inch pitches: 2–84 TPI
Number of metric pitches: 27
Range of metric pitches: 0.2–14 mm
Number of diametral pitches: 27
Range of diametral pitches: 8–72 DP
Number of module pitches: 51
Range of module pitches: 0.2–3.5
Motor
Spindle motor: 15 HP
Dimensions & Weight by Model
Model 8114VSJ – 21” x 40” Gap
Dimensions (L × H × W): 101” × 51” × 51”
Weight: 5,486 lbs
Model 8115VSJ – 21” x 60” Gap
Dimensions: 120” × 51” × 51”
Weight: 5,886 lbs
Model 8116VSJ – 21” x 80” Gap
Dimensions: 140” × 51” × 51”
Weight: 6,283 lbs
Model 8119VSJ – 21” x 120” Gap
Dimensions: 180” × 51” × 51”
Weight: 7,960 lbs
Discover precision with the new Clausing Colchester 21VS engine lathe. Featuring a 21" swing, 4.09" spindle bore, and 15 hp power, it effectively handles demanding tasks. Experience variable speeds up to 1800 RPM for unmatched performance and versatility.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing/Colchester Infinitely variable speed lathes are the industry standard for lathes. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Rugged construction, consistent quality in design and production, along with human engineering makes the operator more efficient, making this lathe a cost effective investment. You will get unbelievable machine performance and operational longevity with the Clausing/Colchester Geared Head Lathes.
These Variable Speed lathes use a State-of-Art AC Spindle Drive to control the motor. A belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into one (1) of three (3) locations (Low, Medium, High) then adjusting a pot control knob to adjust the speed output.
Imperial
| Swing | 21.81" |
| Centers | 40" |
| Spindle Bore | 4.09" |
| Power | 15 hp |
| RPM | 1,800 RPM |
| Swing Over Cross Slide | 14.57" |
| Dimensions | 101 x 51 x 51 |
| Weight | 5486 |
Clausing/Colchester “The Professional” 21” VS Specifications
Capacity
Height of center: 11.02”
Swing over bed: 21.81”
Swing in gap: 32.68”
Width in front of faceplate: 8.5”
Swing over cross slide: 14.57”
Bedway width: 15.75”
Headstock
Spindle bore: 4.09”
Spindle nose (camlock): D1-11
Spindle nose taper: 5MT
Number of spindle speeds: 3 infinitely variable
Spindle speed range (rpm): 18–1800
• Low range: 18–200 rpm
• Mid range: 55–605 rpm
• High range: 160–1800 rpm
Cross/Top Slide
Travel of cross slide: 11.81”
Width of cross slide: 8”
Travel of top slide: 7.5”
Width of top slide: 4”
Tailstock
Quill travel: 5.7”
Quill diameter: 3.74”
Quill taper: 6MT
Feeds & Threading
Longitudinal feed range: 0.0016–0.11 in/rev
Cross feed range: 0.0008–0.055 in/rev
Number of inch pitches: 73
Range of inch pitches: 2–84 TPI
Number of metric pitches: 27
Range of metric pitches: 0.2–14 mm
Number of diametral pitches: 27
Range of diametral pitches: 8–72 DP
Number of module pitches: 51
Range of module pitches: 0.2–3.5
Motor
Spindle motor: 15 HP
Dimensions & Weight by Model
Model 8114VSJ – 21” x 40” Gap
Dimensions (L × H × W): 101” × 51” × 51”
Weight: 5,486 lbs
Model 8115VSJ – 21” x 60” Gap
Dimensions: 120” × 51” × 51”
Weight: 5,886 lbs
Model 8116VSJ – 21” x 80” Gap
Dimensions: 140” × 51” × 51”
Weight: 6,283 lbs
Model 8119VSJ – 21” x 120” Gap
Dimensions: 180” × 51” × 51”
Weight: 7,960 lbs
