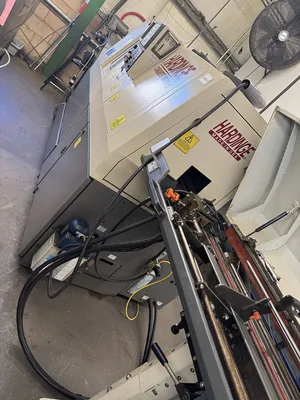

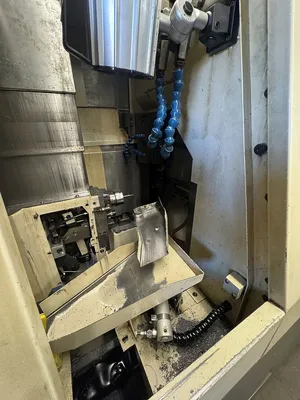

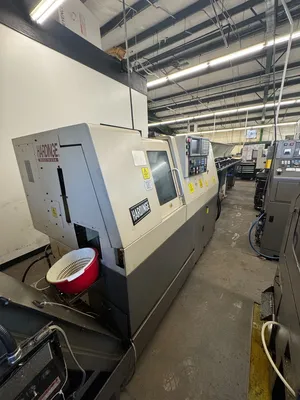

Hardinge ST-25 Swiss Type with LNS Bar Feed

Spindle:
– Collet Style…………S25-HM
– Bar Capacity W/ Collet…………1″
– Machining Length – Single Chuck…………9.65″
– Speed…………200 – 6300 RPM
– Drive Motor…………7.3 HP
– Cooling…………Liquid
– Increments W/ C-Axis Option…………0.001°

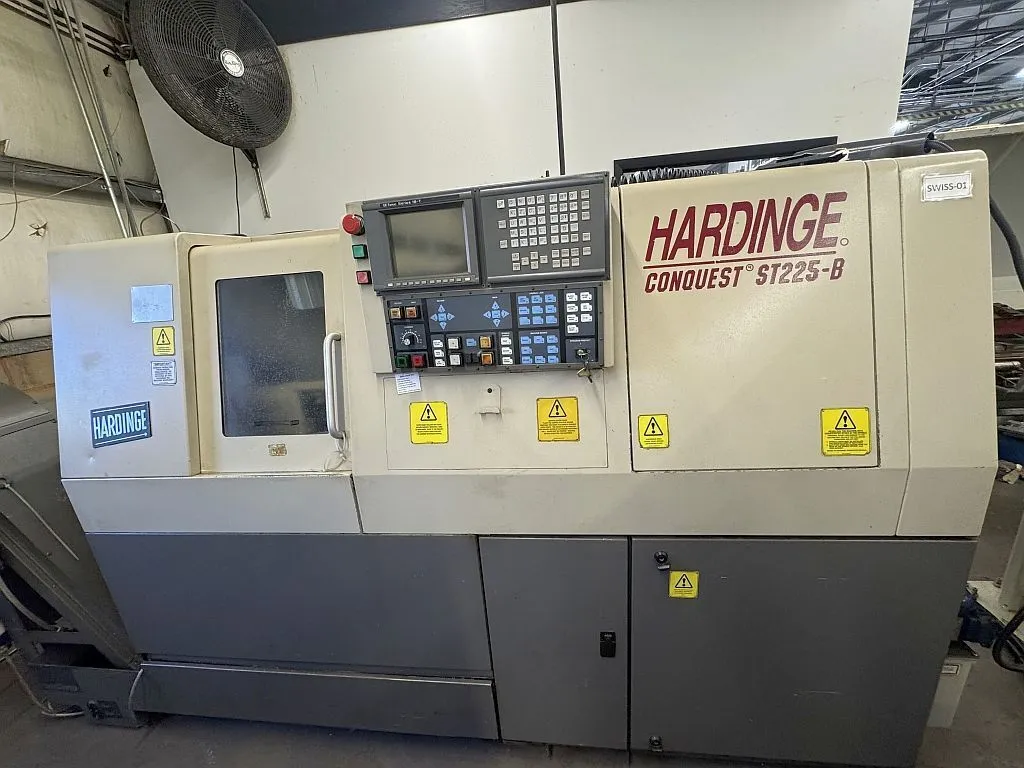

Hardinge Conquest ST-225B Axes:
– Number of Axes w/C-Axis Option…………6
– X1-Axis Travel 2.75″, Y1-Axis Travel 7.5″
– Z1-Axis Travel – One Chucking…………9.65″
– Y2-Axis Travel…………9″
– Z2-Axis Travel…………8.5″
– X-Axis Speed…………472 IPM
– Y1 and Y2 Axis Speed…………630 IPM
– Z2-Axis Speed…………787 IPM

General:
– Machine Dimensions…………108″ LR x 60″ FB x 66″ H
– Chip Conveyor
– Weight – Approximate…………7500 Lbs.
– Electrics…………230V/3Ph/60 Hz
Fanuc Series 18-T Control with manual pulse generator
– Chute Type Parts Catcher

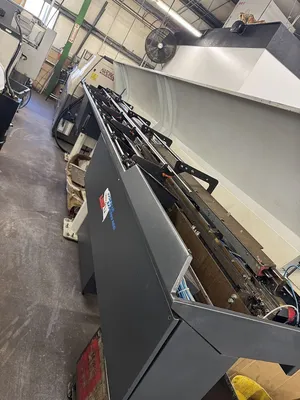

– LNS Express 226 Bar Feeder with liners & pushers

** Large Quantity of Hardinge Guide Bushings and Collets
** Spindle bearings are brand new as of 2022 / 2023
