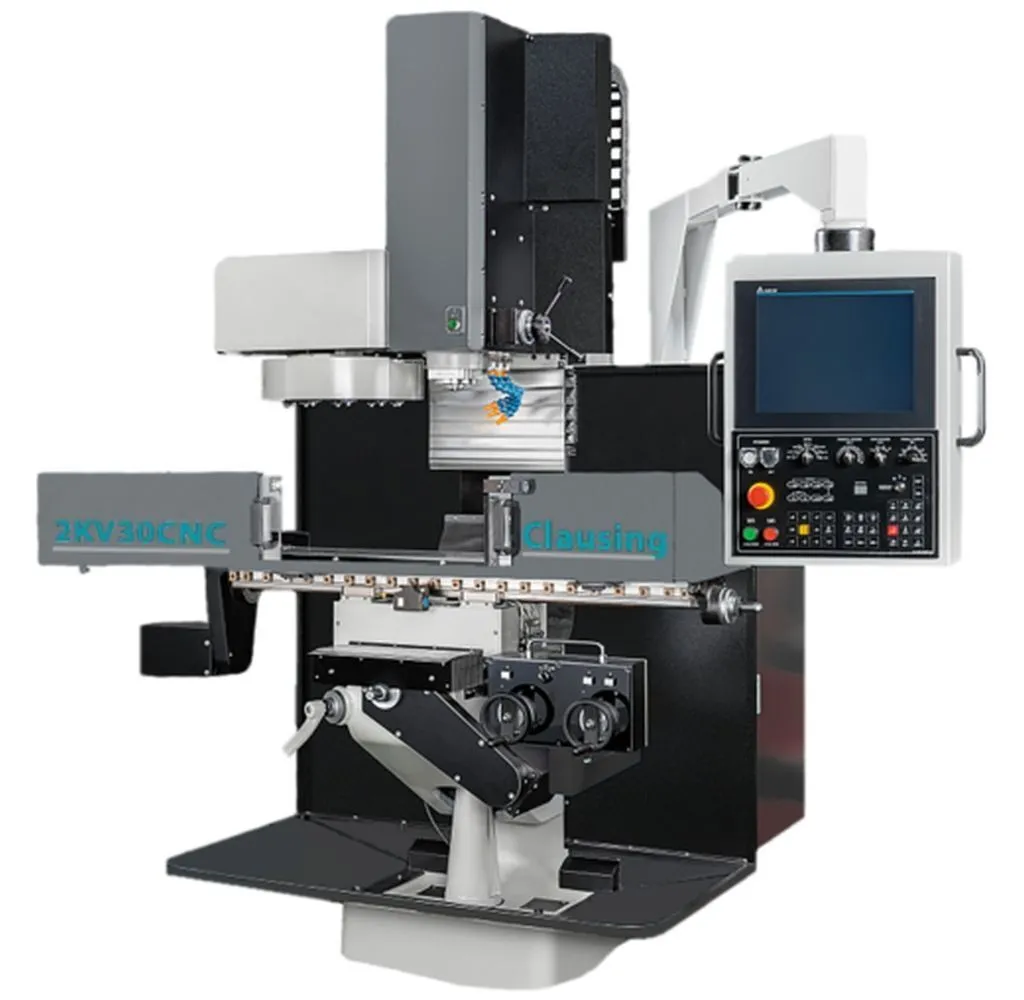

Clausing 2KV30CNC CNC Knee Mill

Machine Style..........CNC Knee Mill
Number Controlled Axes..........3 (X, Y, Z-Column)
Table Size..........9” x 49”
No. of T-slots..........3
T-slot Width..........0.63 (16mm)
Table Load..........441lbs (200kgs)
Table Ways..........Linear
Knee Ways..........Linear
Column Ways..........Linear
X Longitudinal..........29.9”
Y Cross..........10.2”
Column..........9.8”
Knee Manual Travel..........4”
Spindle Center to Z Axis Track Surface..........10.98”
Nose to Table Surface..........3.9” – 13.8”
Transmission..........Direct Drive
Spindle Taper..........BT30
Spindle Speed..........12,000rpm
Motor Horsepower..........5
Head Type..........VMC Style
CNC Control..........Fanuc Oi-MF or Delta NC50E-FE
ATC Type..........Armless
Tool Pockets..........10
Tool Taper..........BT30
Ball Screw Diameter X/Y..........0.98” (25mm)
Ball Screw Diameter Z..........1.25” (32mm)
Motors X/Y/Z..........1kw/1kw/2kw
Transmission X/Y..........1:2 Timing Gear Box
Transmission Z..........1:1 Timing Gear Box
Rapid Feed..........295ipm (7.5Mpm)
Cutting Feed Rate..........0-196ipm (0-5Mpm)
Coolant Pump..........¾ Hp
Power Required..........12KVA
Length..........96.5” (2450mm)
Width..........59” (1500mm)
Height..........102” (2595mm)
Weight..........2,866lbs (1300Kgs)

Machine Features:
Meehanite Castings for superior rigidity and wear resistance
Linear guide ways, X, Y & Z
1:2 Timing belt system X/Y Axis for increased torque
Manual knee up-down handle
Drilling and tapping can be performed by Z axis rotary handle (optional)
Three (3) axis electrical handwheels provide easy operation and enhanced efficiency
10 Tool ATC BT30 tooling
VMC style head design with direct drive spindle
Semi -guarding (head, table, R&L table end, chip tray)
Coolant system
Heat exchanger electrical box
Auto lubrication
Halogen worklight
Program light
3 Hp AC motor
Leveling bolts and pads
Tools and tool box
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service.
